Federal

TROUBLESHOOTING PROCEDURES

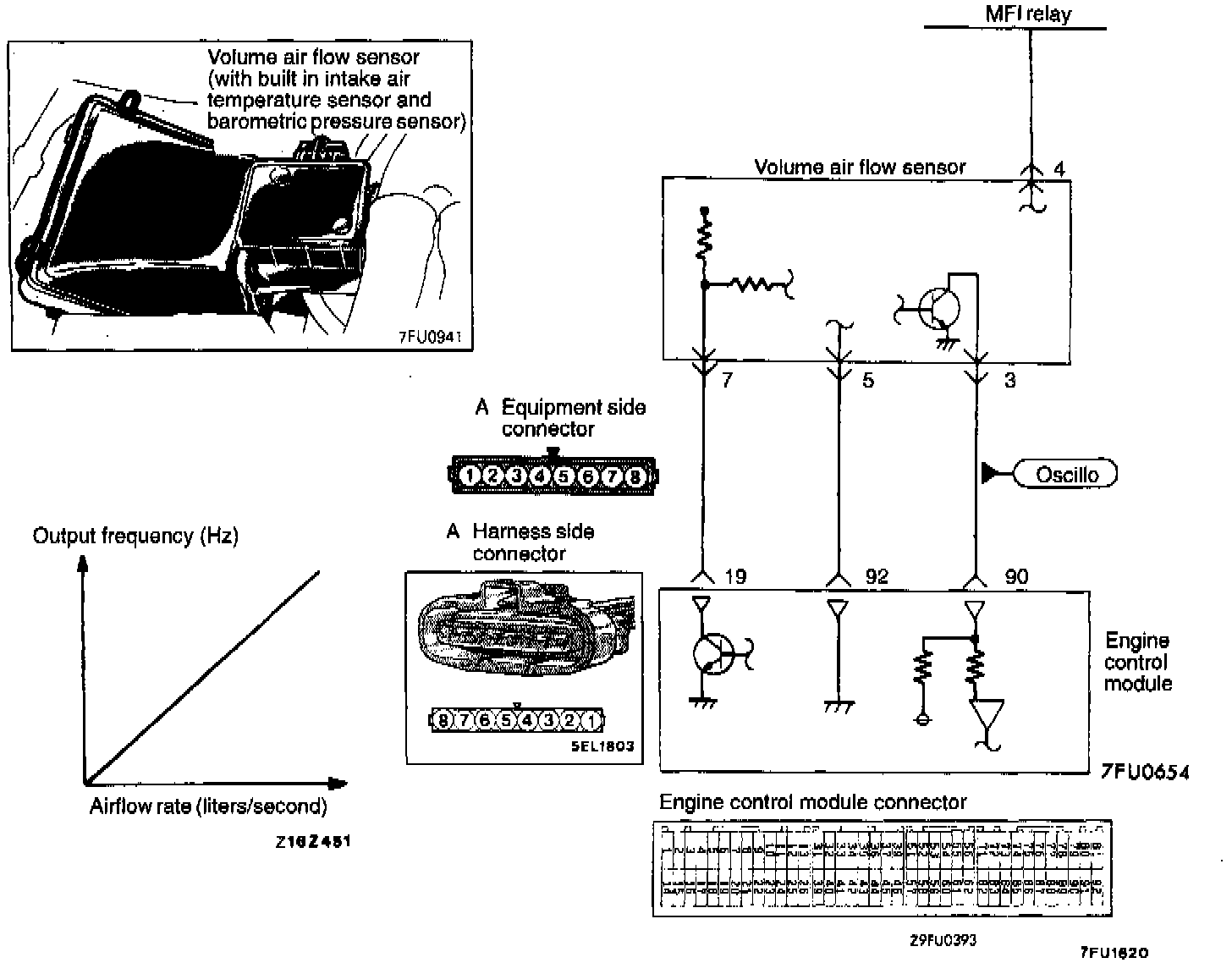

CIRCUIT DIAGRAM

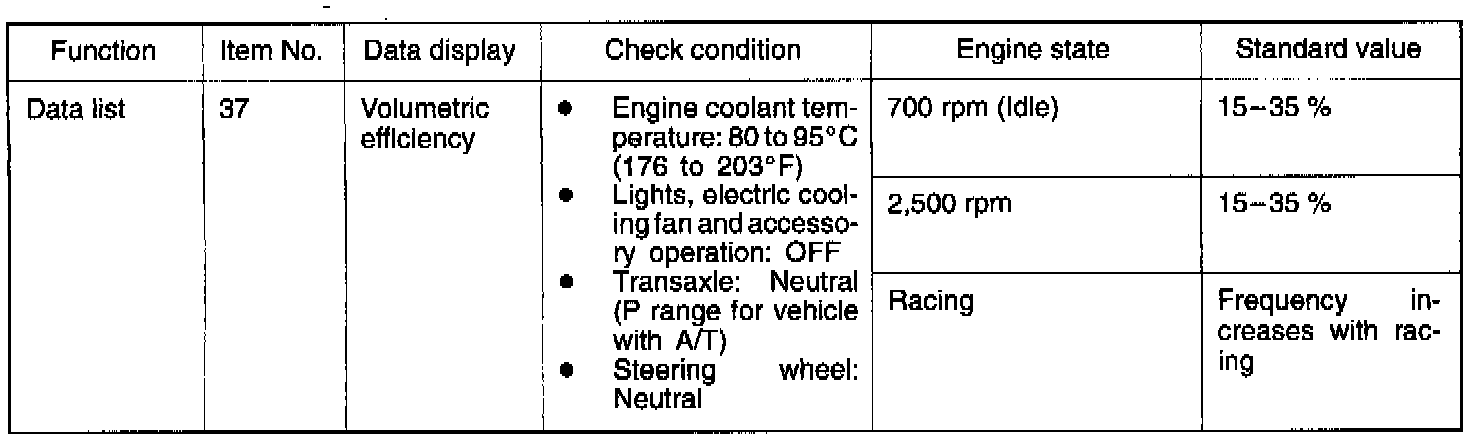

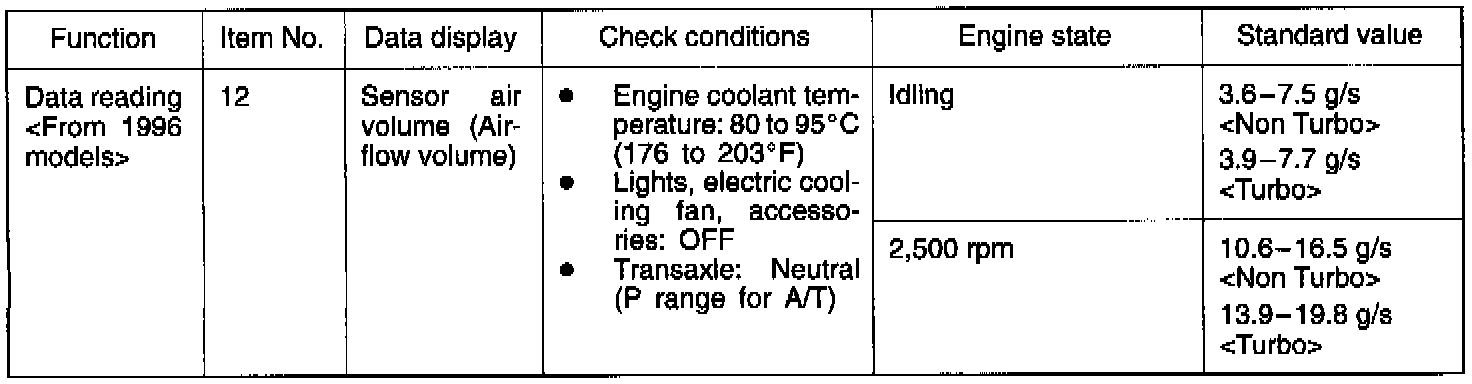

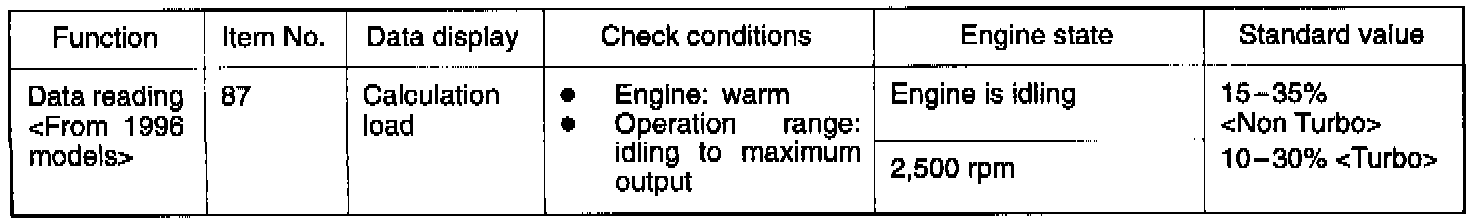

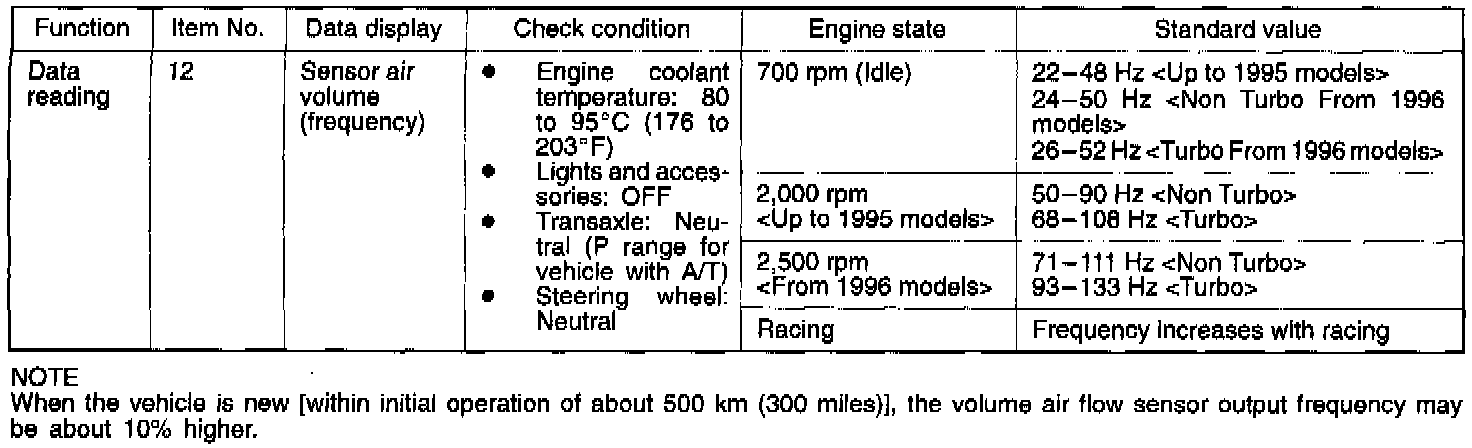

INSPECTION USING SCAN TOOL





(1) Run the engine at idle speed.

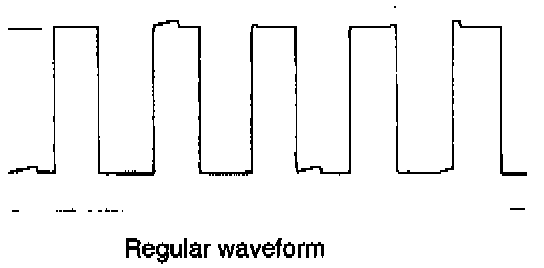

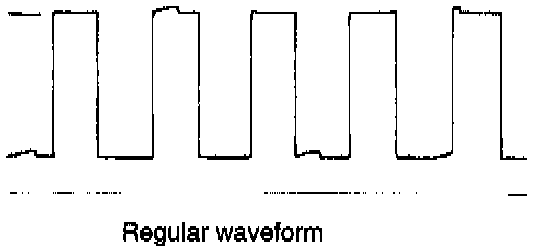

(2) Connect the probe to the oscilloscope pick-up point as shown in the circuit diagram, and check the waveform.

USING OSCILLOSCOPE

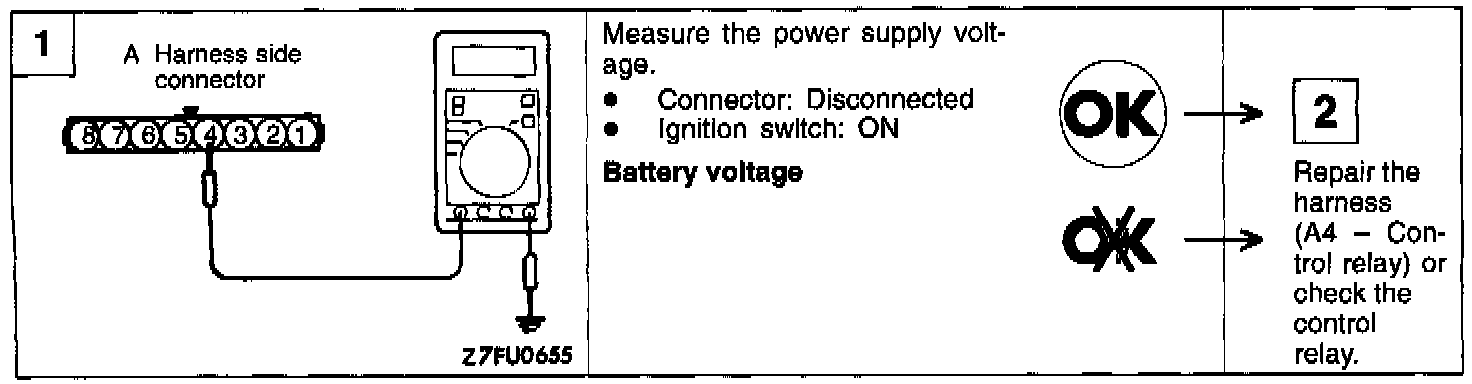

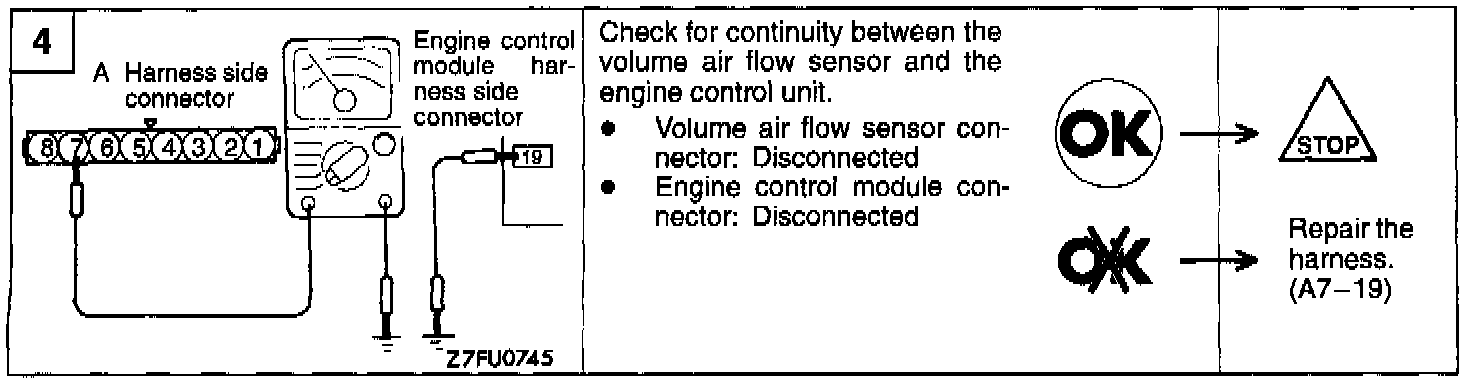

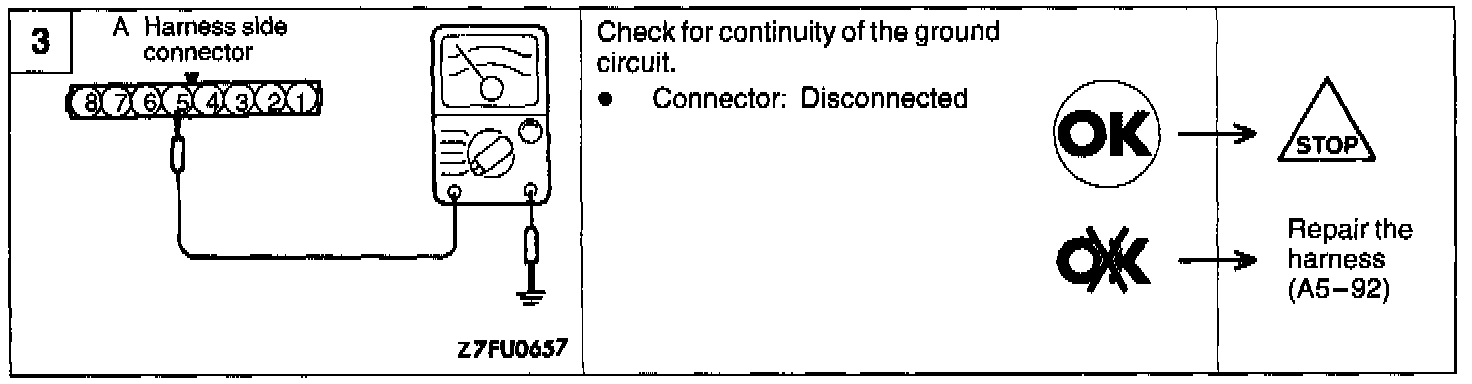

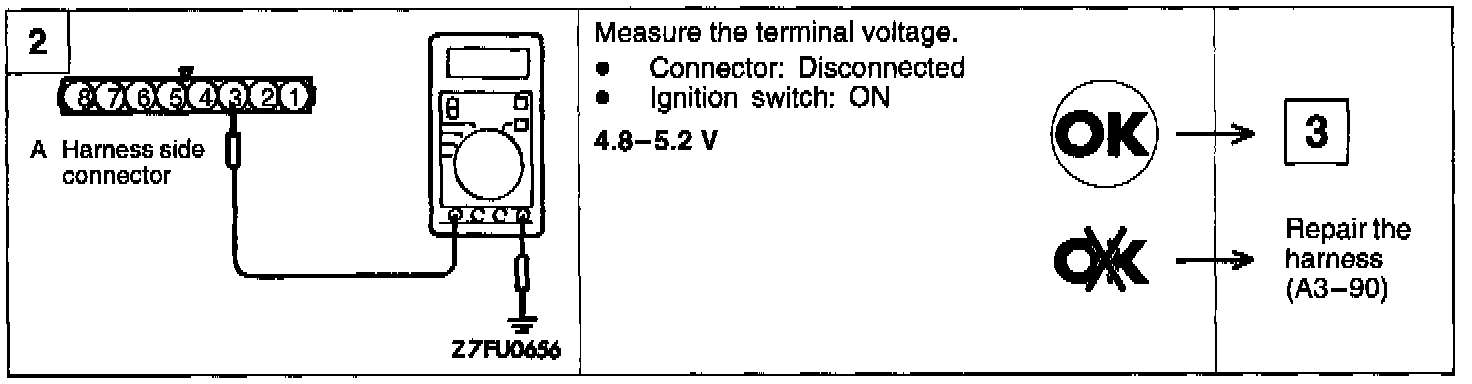

HARNESS INSPECTION PROCEDURE

TROUBLESHOOTING HINTS
Hint 1: If the engine stalls occasionally, crank the engine and shake the volume air flow sensor harness. If the engine stalls, poor contact of the volume air flow sensor connector is suspected.
Hint 2: If the volume air flow sensor output frequency is other than 0 when the ignition switch is turned on (but not starting the engine), faulty volume air flow sensor or engine control module is suspected.
Hint 3: If the engine can be run idle even though the volume air flow sensor output frequency is out of specification, troubles are often found in other than the volume air flow sensor itself.
(1) Disturbed volume air flow in the air flow sensor
(Disconnected air duct, clogged air cleaner element)
(2) Poor combustion in the cylinder
(Faulty ignition plug, ignition coil, injector, incorrect compression pressure, etc.)
(3) Air leaking into the intake manifold through gap of gasket, etc.
(4) Loose EGR valve seat
