Supplemental Restraint System (SRS)

ҿ:

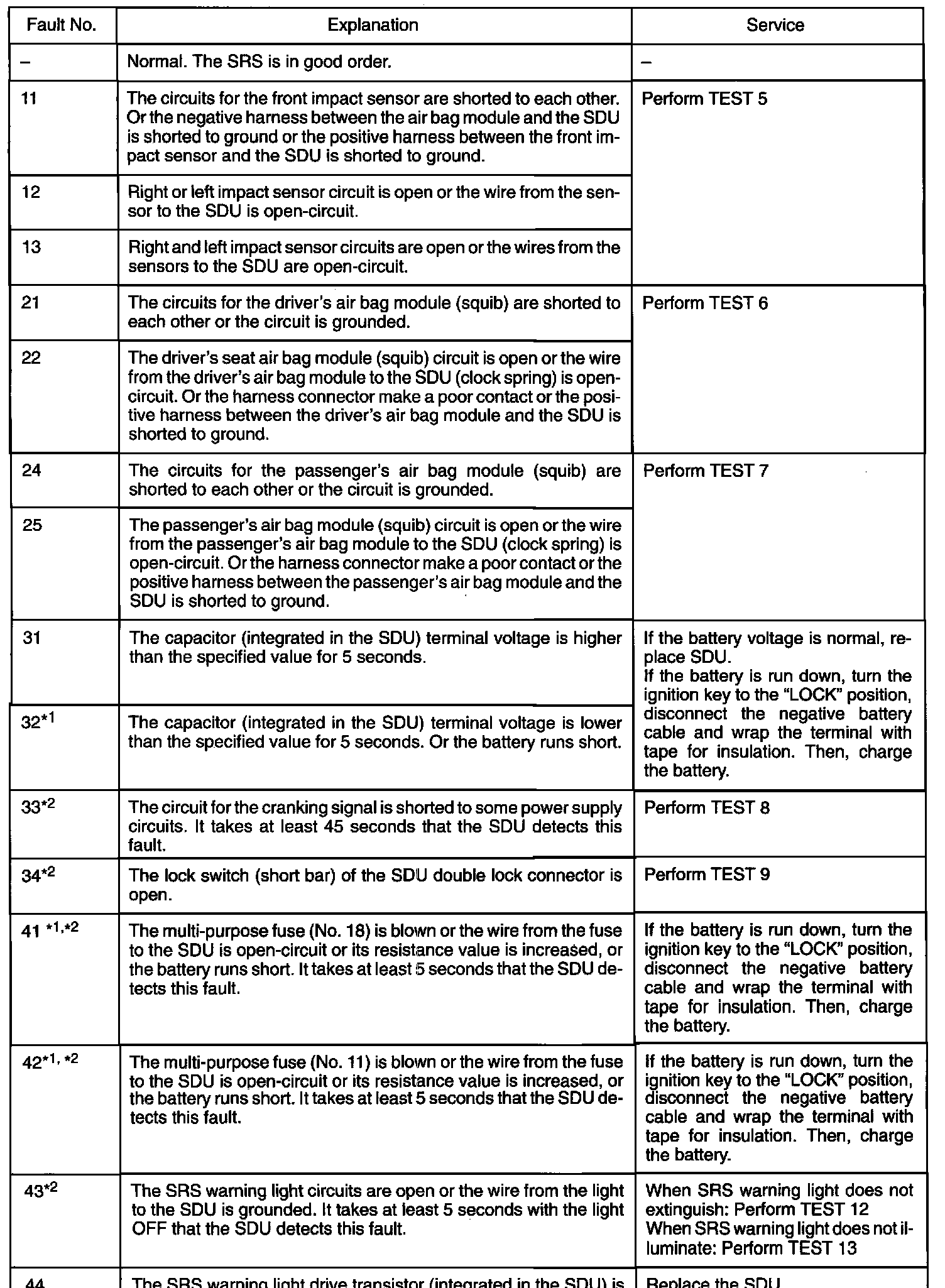

DIAGNOSTIC TROUBLE CODE DESCRIPTIONS

NOTE - IMPORTANT:

(1) After repairing the SRS, reconnect the battery cable, erase the diagnostic trouble code memory from the scan tool and check the SRS warning light operation to verify the system functions properly. (Refer to TEST 1.)

(2) SDU = SRS Diagnosis Unit

(3) *1: If the vehicle has a discharged battery it will store the fault code 32. When this diagnostic trouble code is displayed, check the battery.

(4) *2: Upon recovery from the fault identified with the code No. marked with *2, the SRS warning light goes out and the function returns to the normal condition. (From 1993 model)
