Home >> Mitsubishi >> 1994 >> Precis L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Specifications >> Mechanical Specifications >> M/T Torque Data >> KM201 5-SPD M/T

KM201 5-SPD M/T

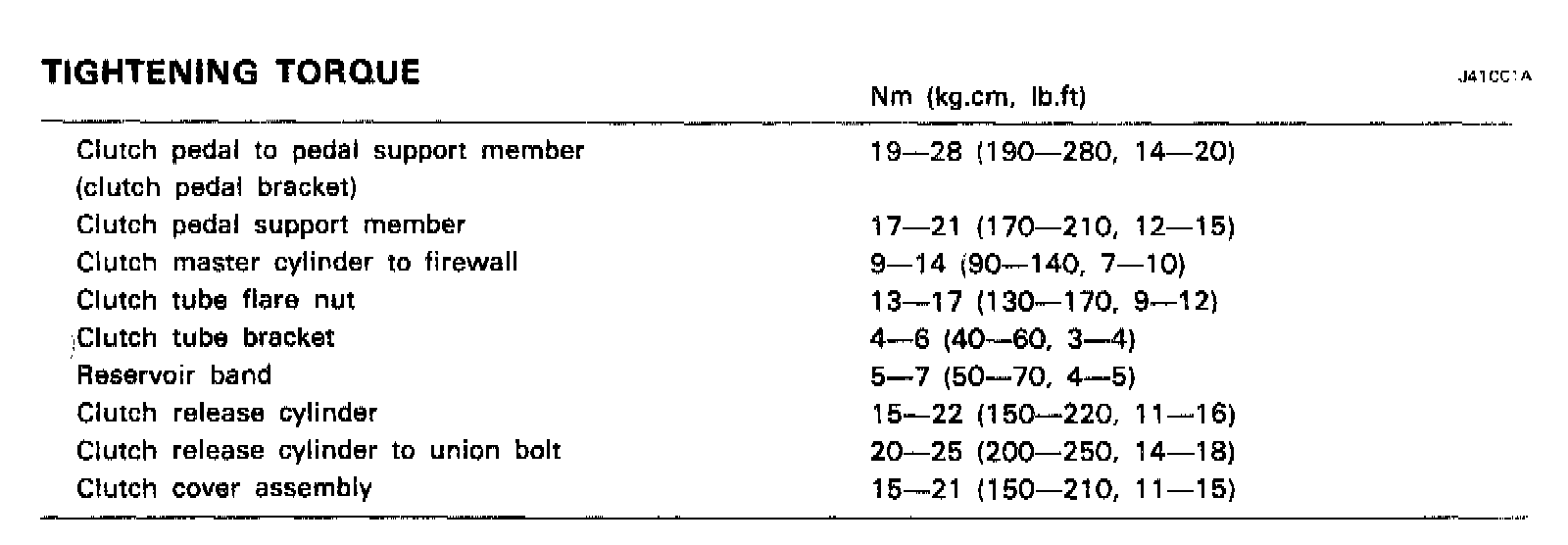

KM200 4-spd M/T, Clutch Torque:

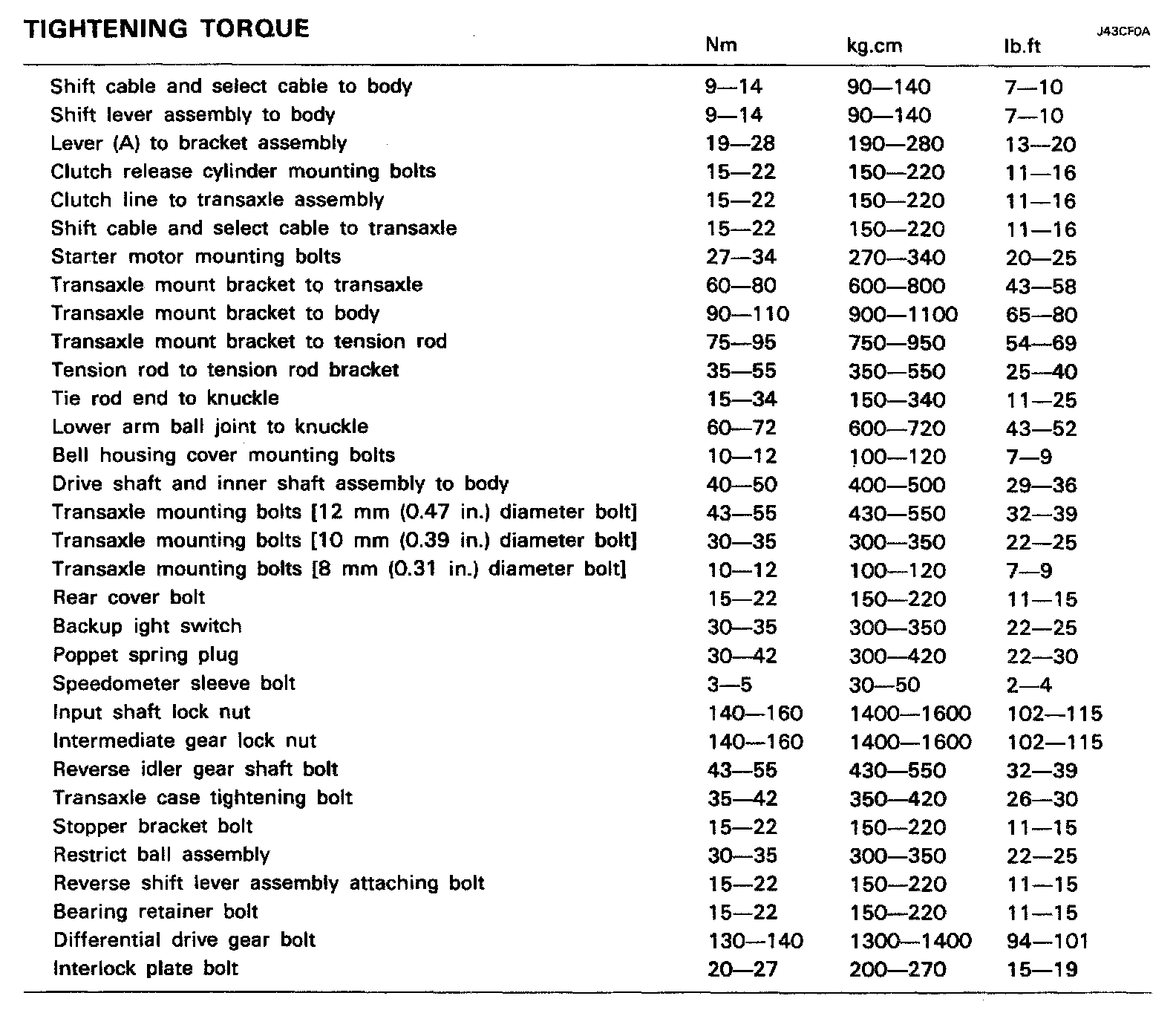

KM200 4-spd M/T / KM201 5-spd M/T, Transaxle Torque:
