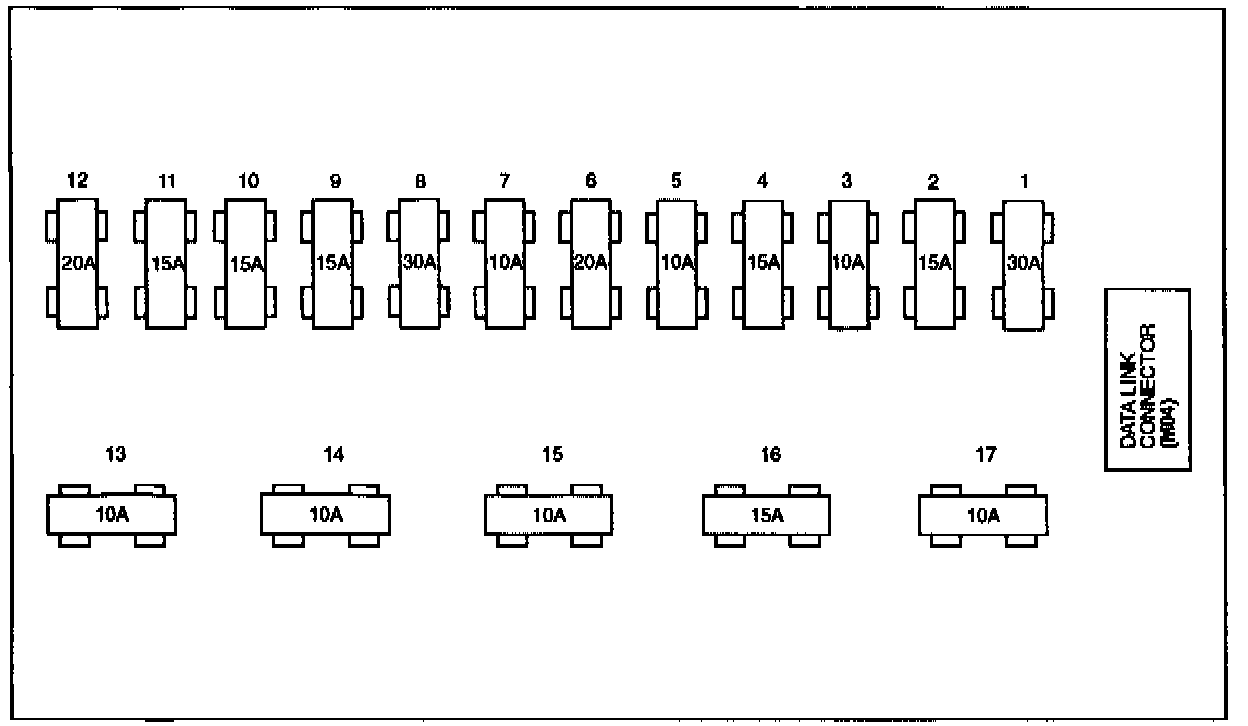

Multi-Purpose Fuses (In Junction Block)

FUSE AND RELAY INFORMATION

Fuse And Relay Information (Fuse Box):

Fuse Amperages Circuits

1 30A Blower controls

2 15A Trunk lid (tailgate) opener

3 10A Multifunction switch

4 15A Stop lamps

5 10A Courtesy lamp, cluster

6 20A TACM

7 10A A/C controls

8 30A Not used

9 15A Sunroof

10 15A Front wiper and washer

11 15A Rear wiper and washer

12 20A Not used

13 10A LH tail lamps

14 10A RH tail lamps

15 10A Audio, A/T key lock controls

16 15A Cigarette Lighter

17 10A Back up lamps, turn signal lamps, clock, A/T key lock controls
