Wiring Diagram

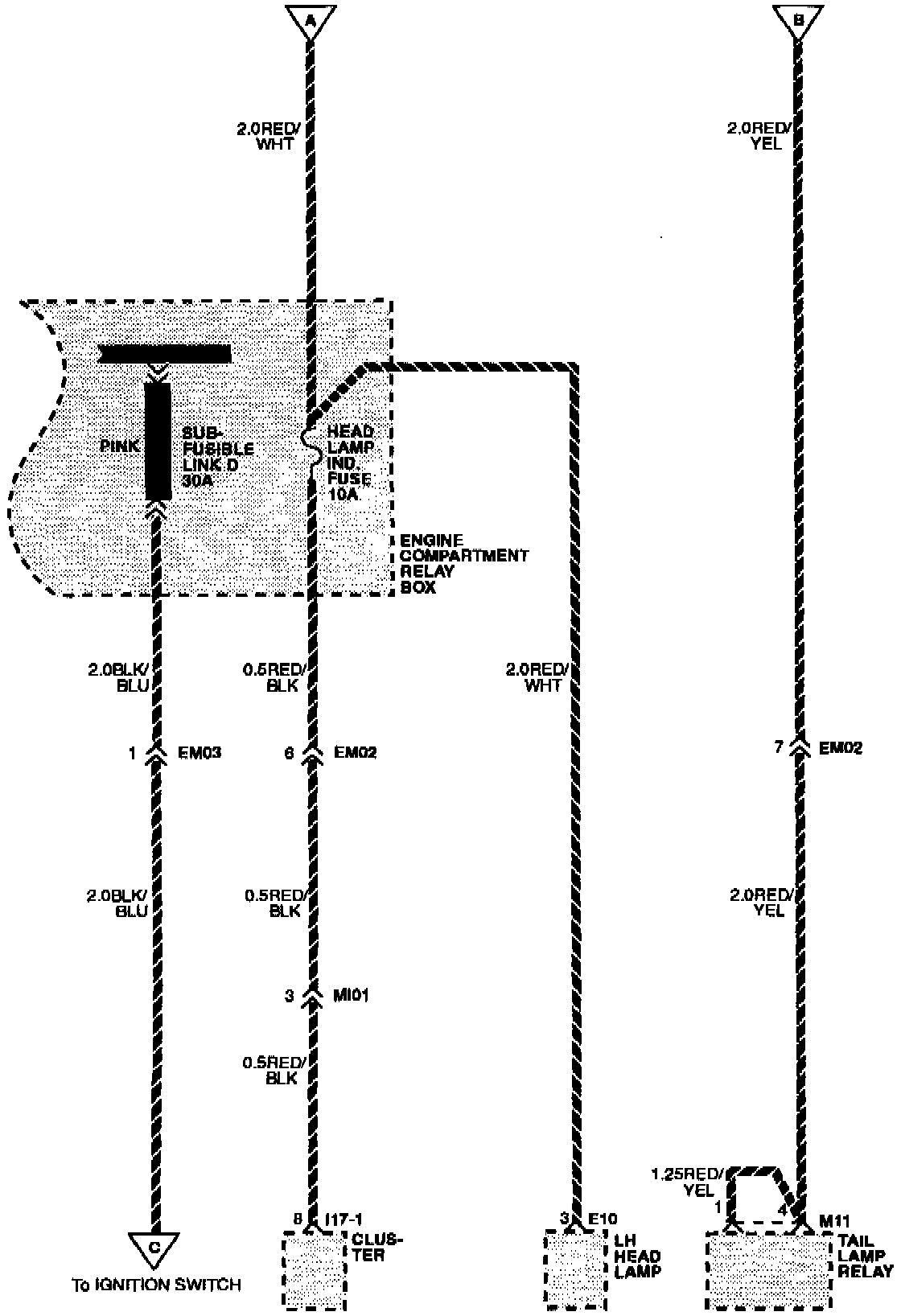

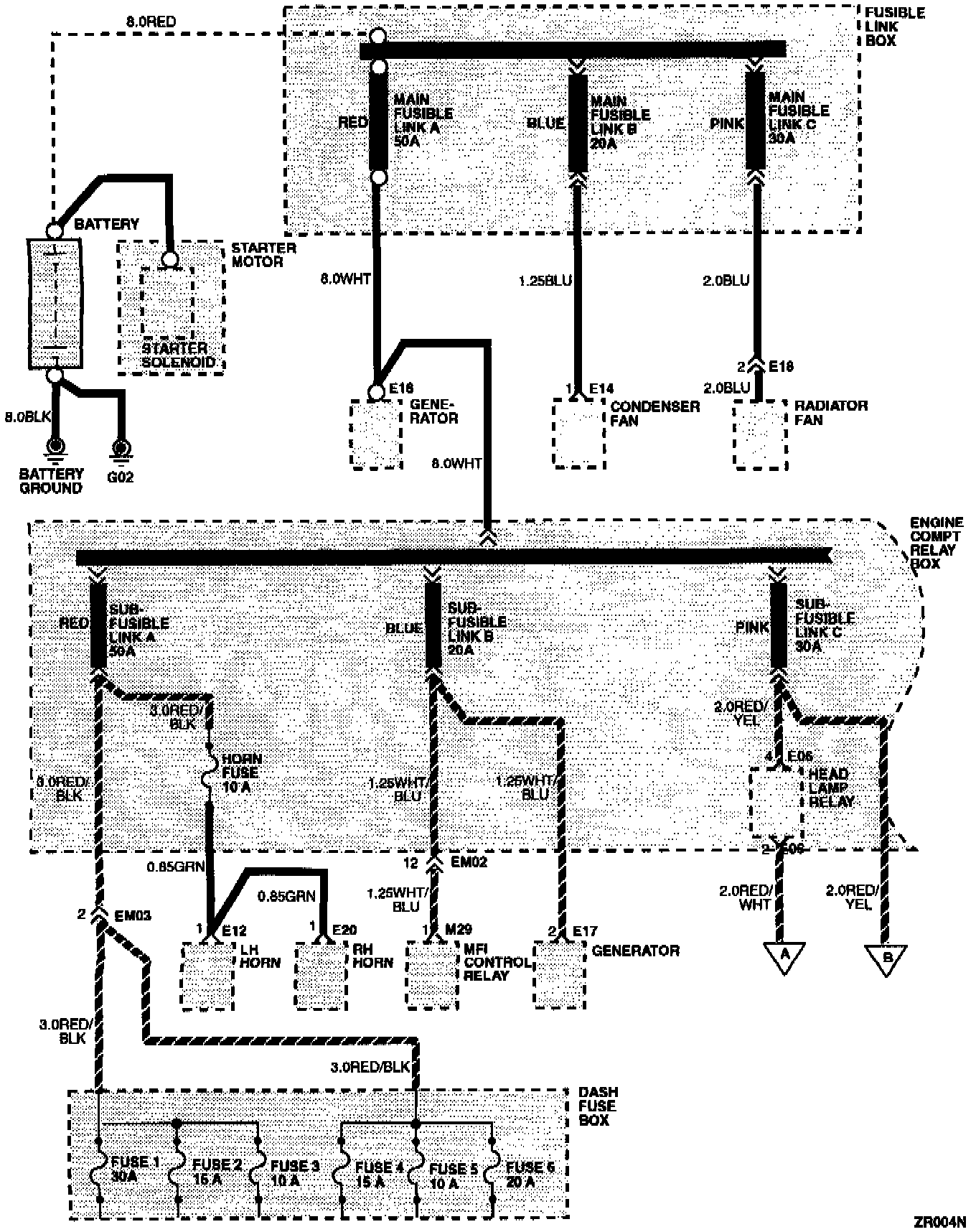

Power Distribution Wiring Diagram:



Power Distribution Wiring Diagram:



Power Distribution Wiring Diagram:
