Troubleshooting

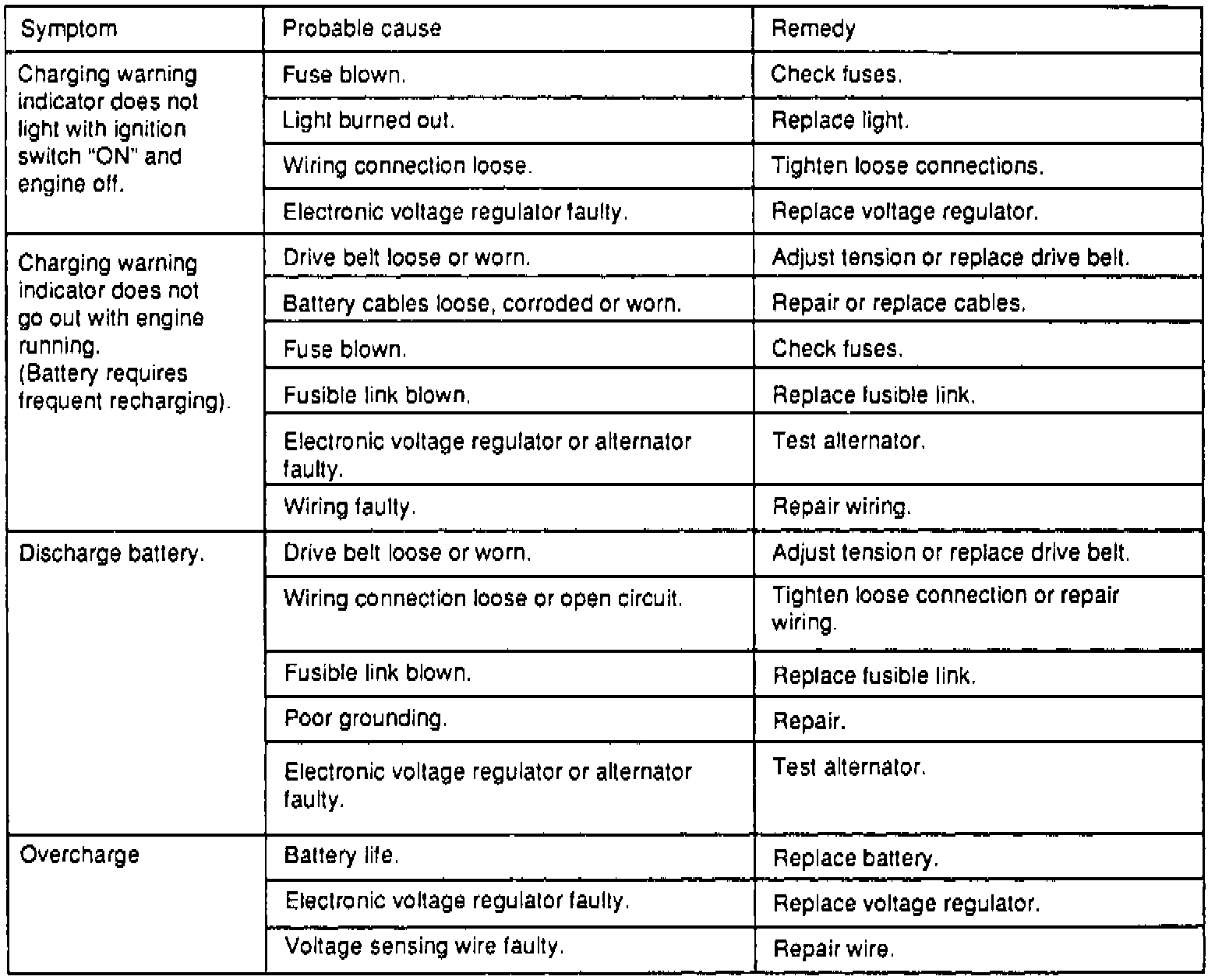

Fig. 1 Troubleshooting Chart:





When troubleshooting Melco and Mando alternators, refer to Fig. 1.
