KM201 5-SPD M/T

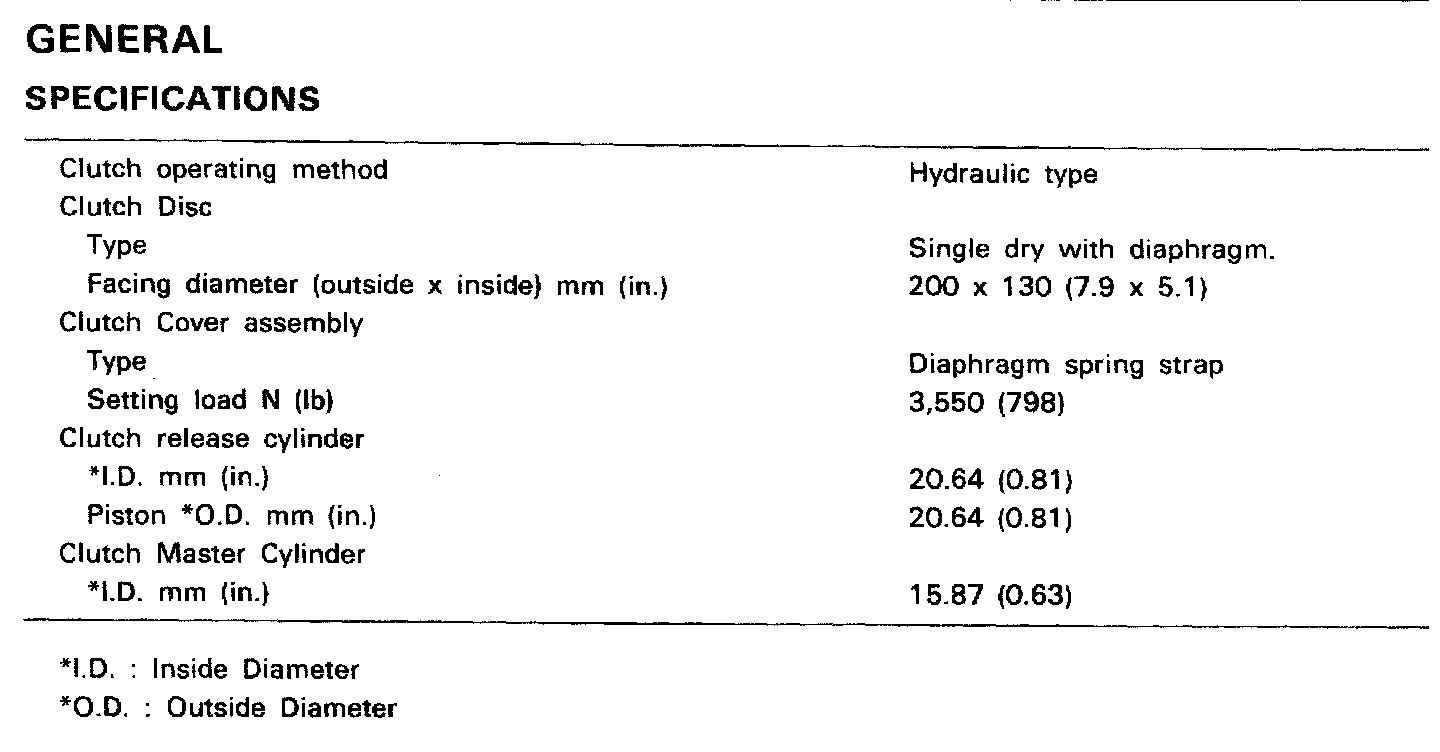

KM200 4-spd M/T / KM201 5-spd M/T, Clutch Dimensions:

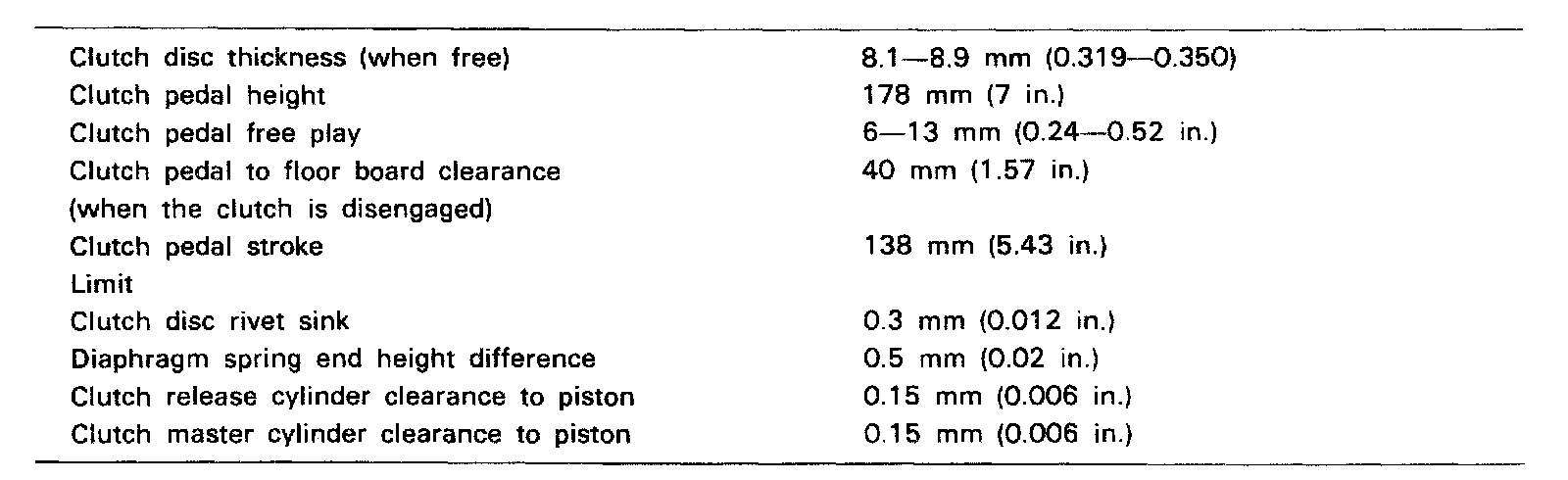

KM200 4-spd M/T / KM201 5-spd M/T, Clutch Clearances:

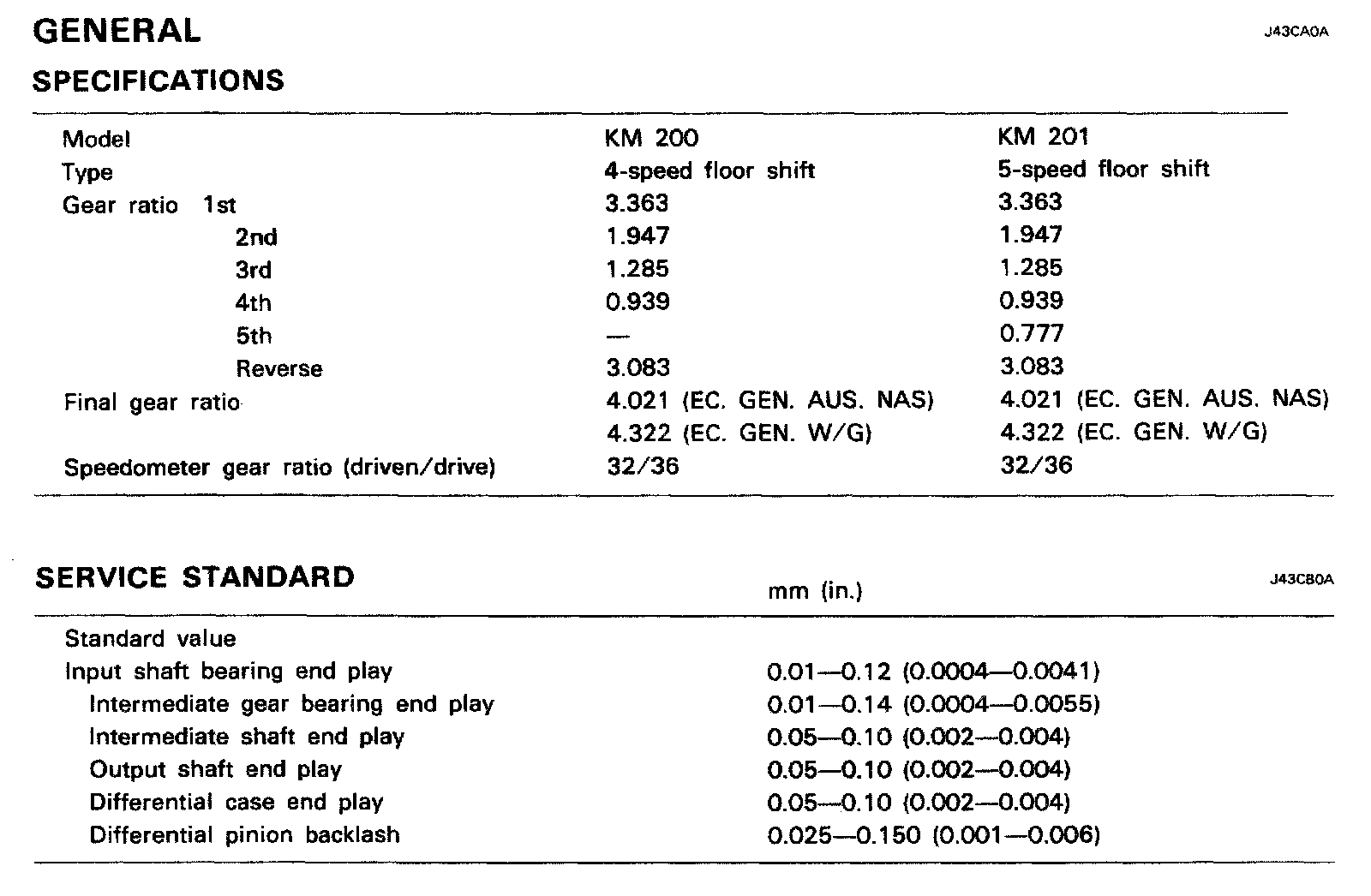

KM200 4-spd A/T / KM201 5-spd M/T, Gear Ratio & Standard Values:

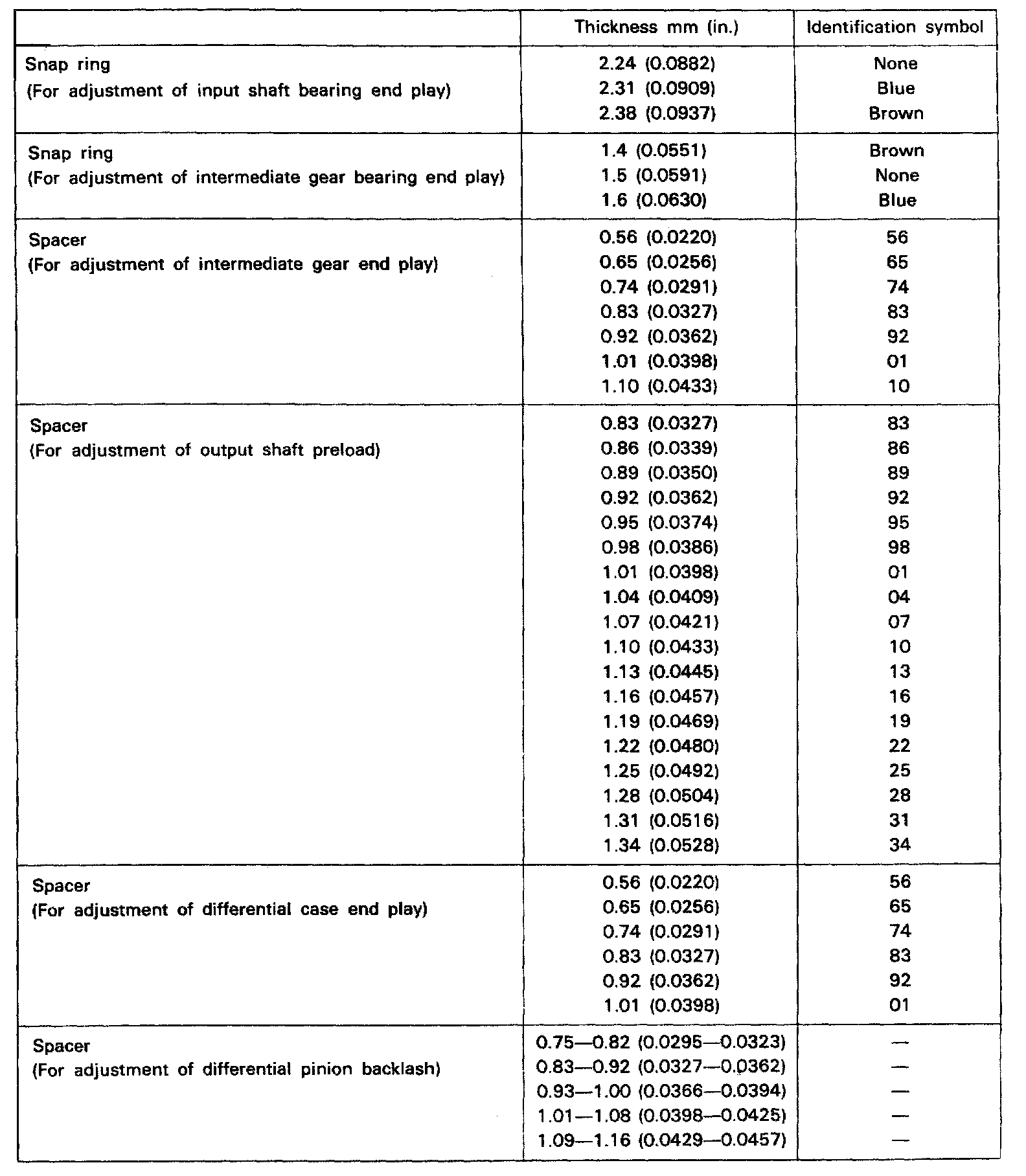

KM200 4-spd M/T/KM201 5-spd M/T, Input / Intermediate, Output & Differential:
