KM200 4-SPD M/T

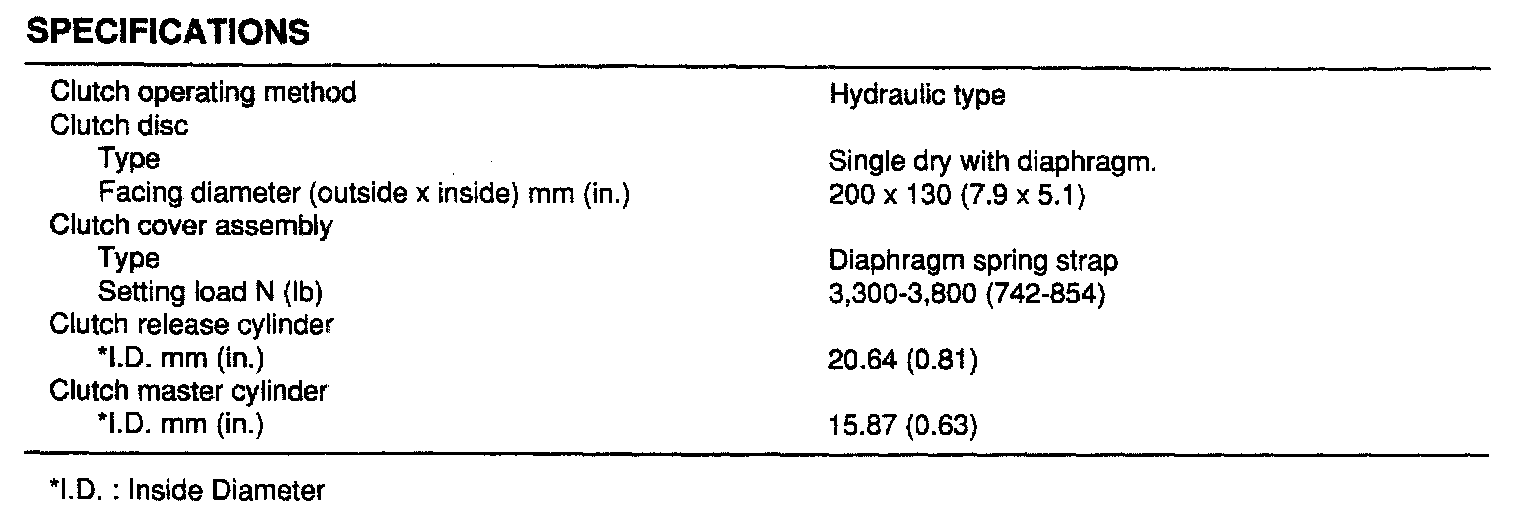

KM200 4-spd M/T / KM201 5-spd M/T, Clutch Dimensions:

KM200 4-spd M/T, Clutch Dimensions ('94):

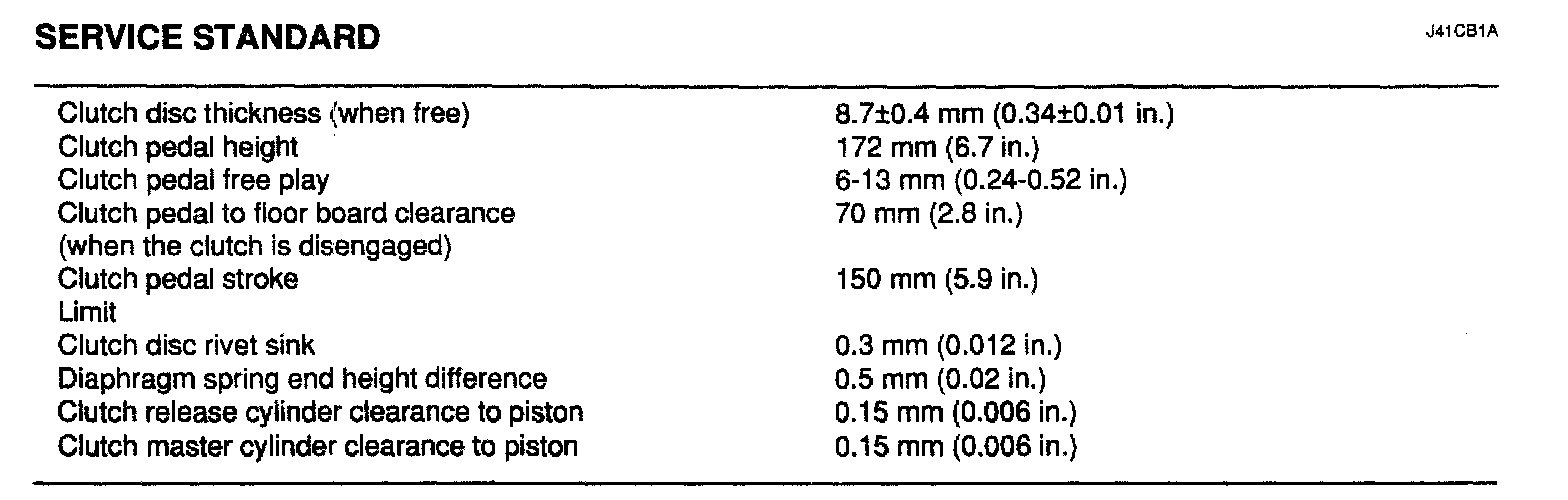

KM200 4-spd M/T / KM201 5-spd M/T, Clutch Clearances:

KM200 4-spd M/T, Clutch Clearances ('94):

KM200 4-spd A/T / KM201 5-spd M/T, Gear Ratio & Standard Values:

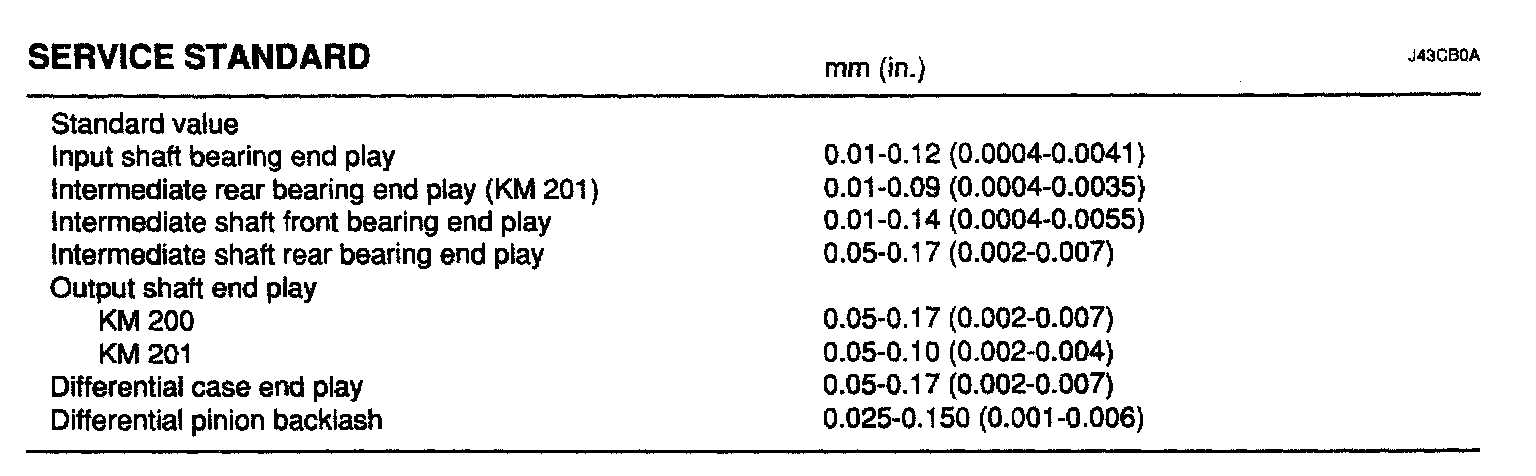

KM200 4-spd M/T, Standard Values ('94):

KM200 4-spd M/T/KM201 5-spd M/T, Input / Intermediate, Output & Differential:

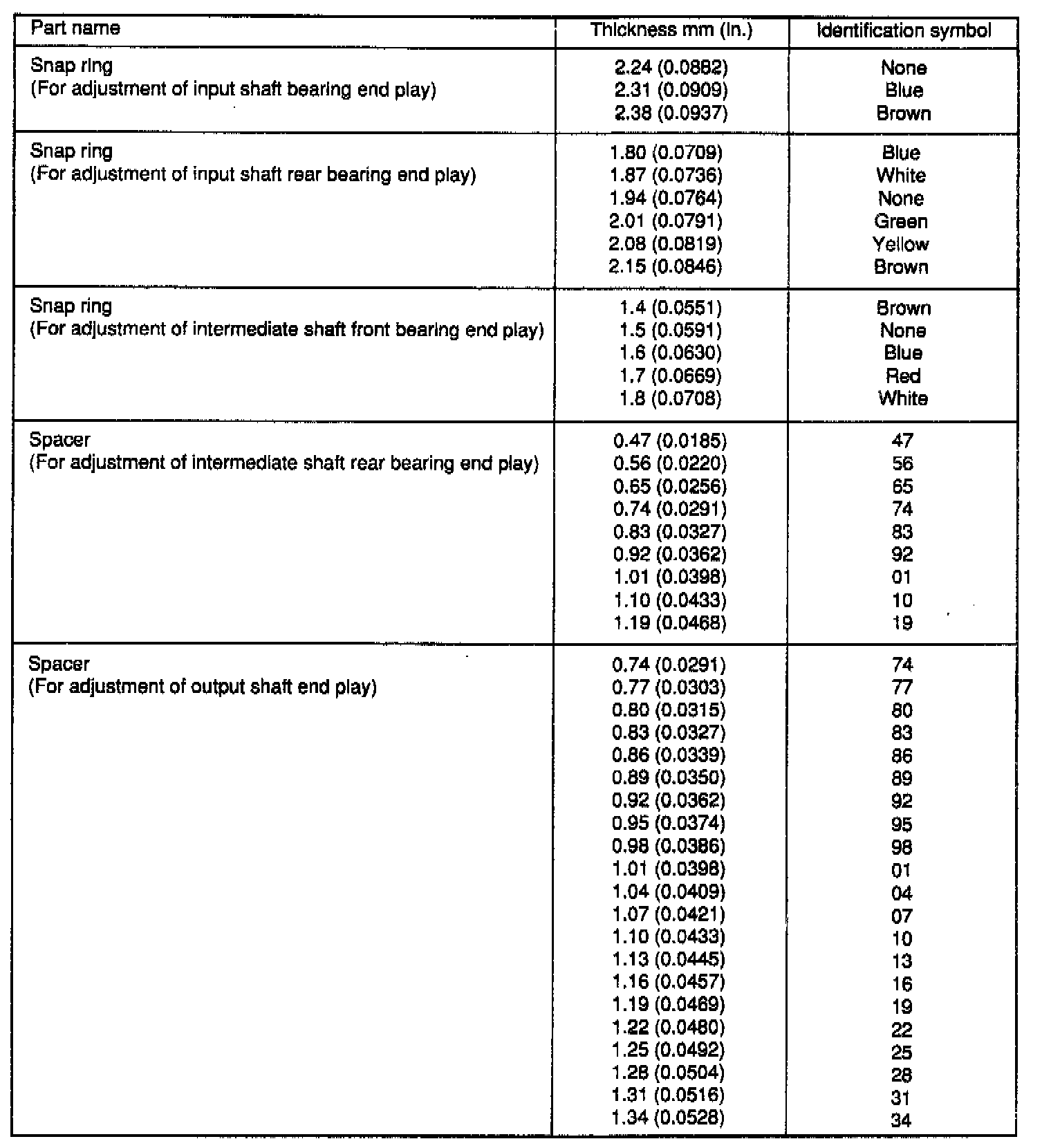

KM200 4-spd M/T, Input Shaft & Output Shaft End Play:

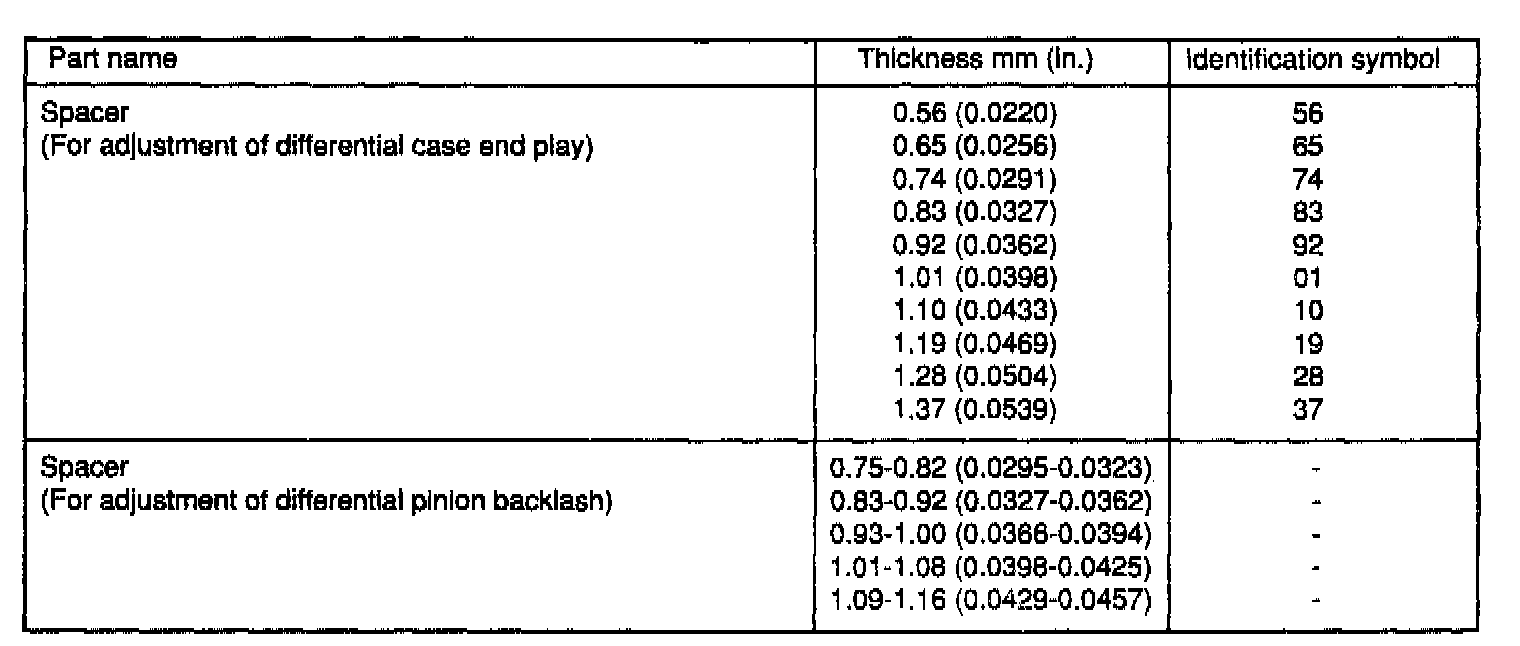

KM200 4-spd M/T, Differential Case End Play & Pinion Backlash:
