Home >> Mitsubishi >> 1994 >> Precis L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> A/T Technical Data

A/T Technical Data

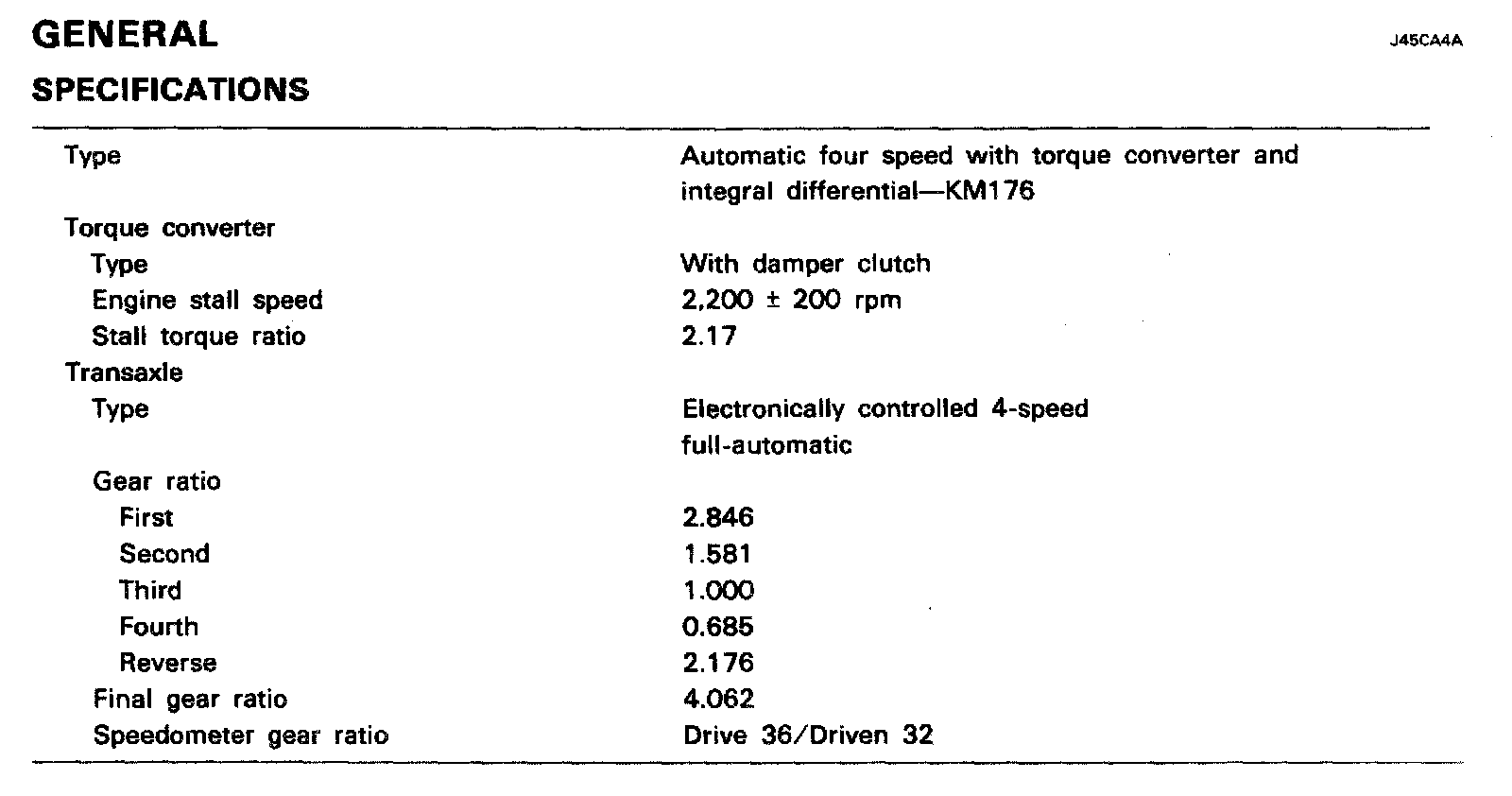

KM176 4-spd A/T, Gear Ratio:




KM176 4-spd A/T, Gear Ratios ('94):

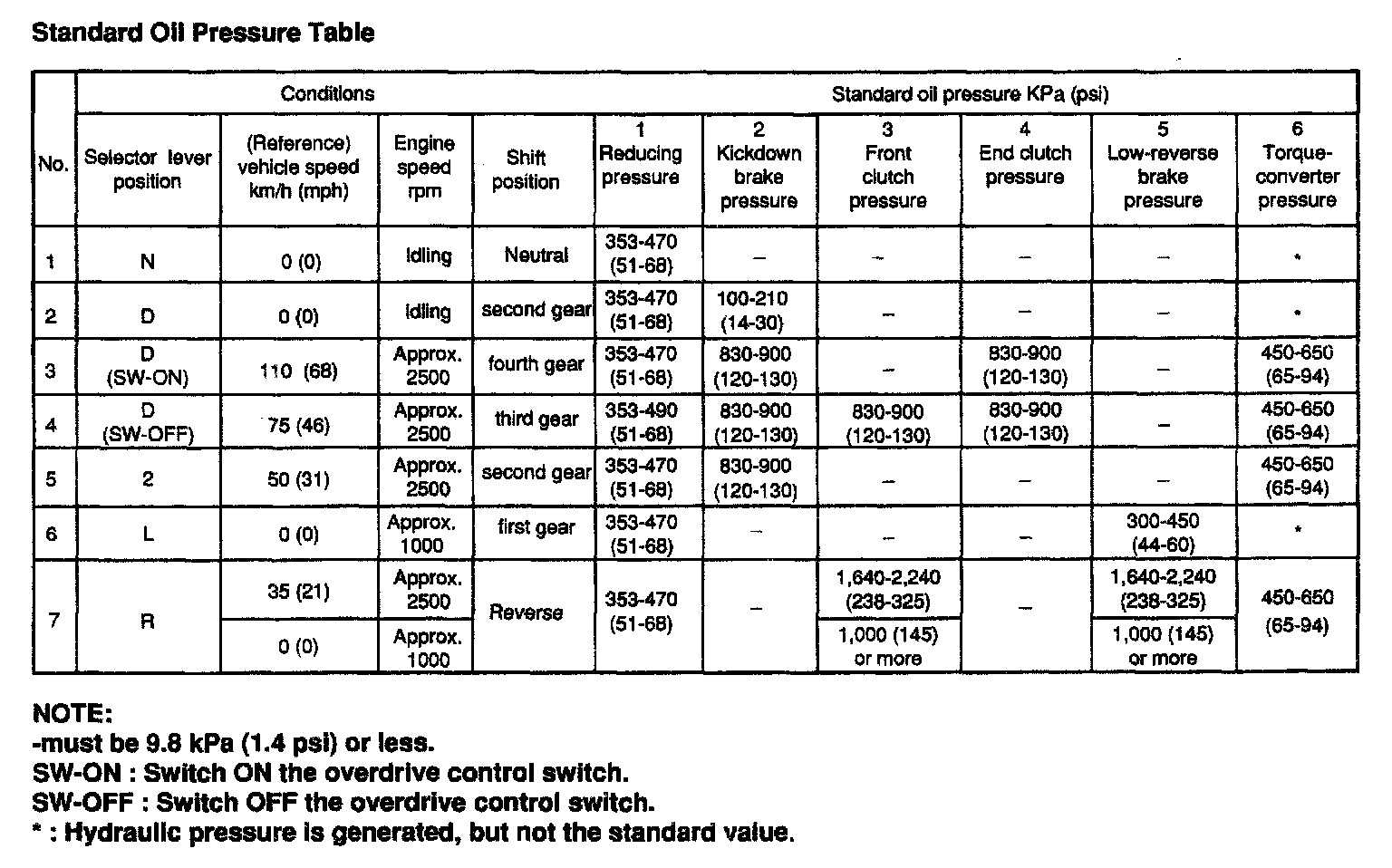

KM176 4-spd A/T, Standard Oil Pressure Table ('94):
