Tachometer Connector: Locations

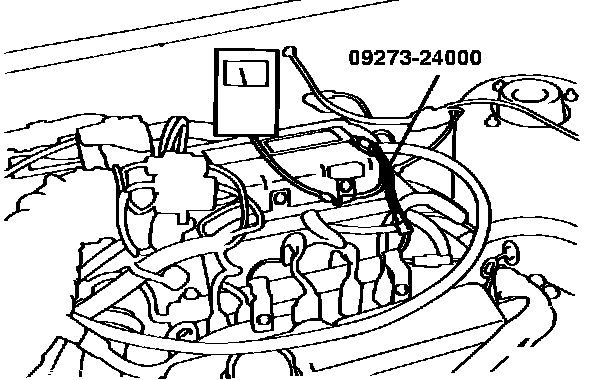

Tachometer Check Connector Location:

The tachometer connector is integral to the Ignition Noise Filter. To install a tachometer, disconnect the Ignition Noise Filter and install Special Service Tool 09273 - 24000 between the connectors. then install the Tachometer to the Special service tool.
