General Specifications

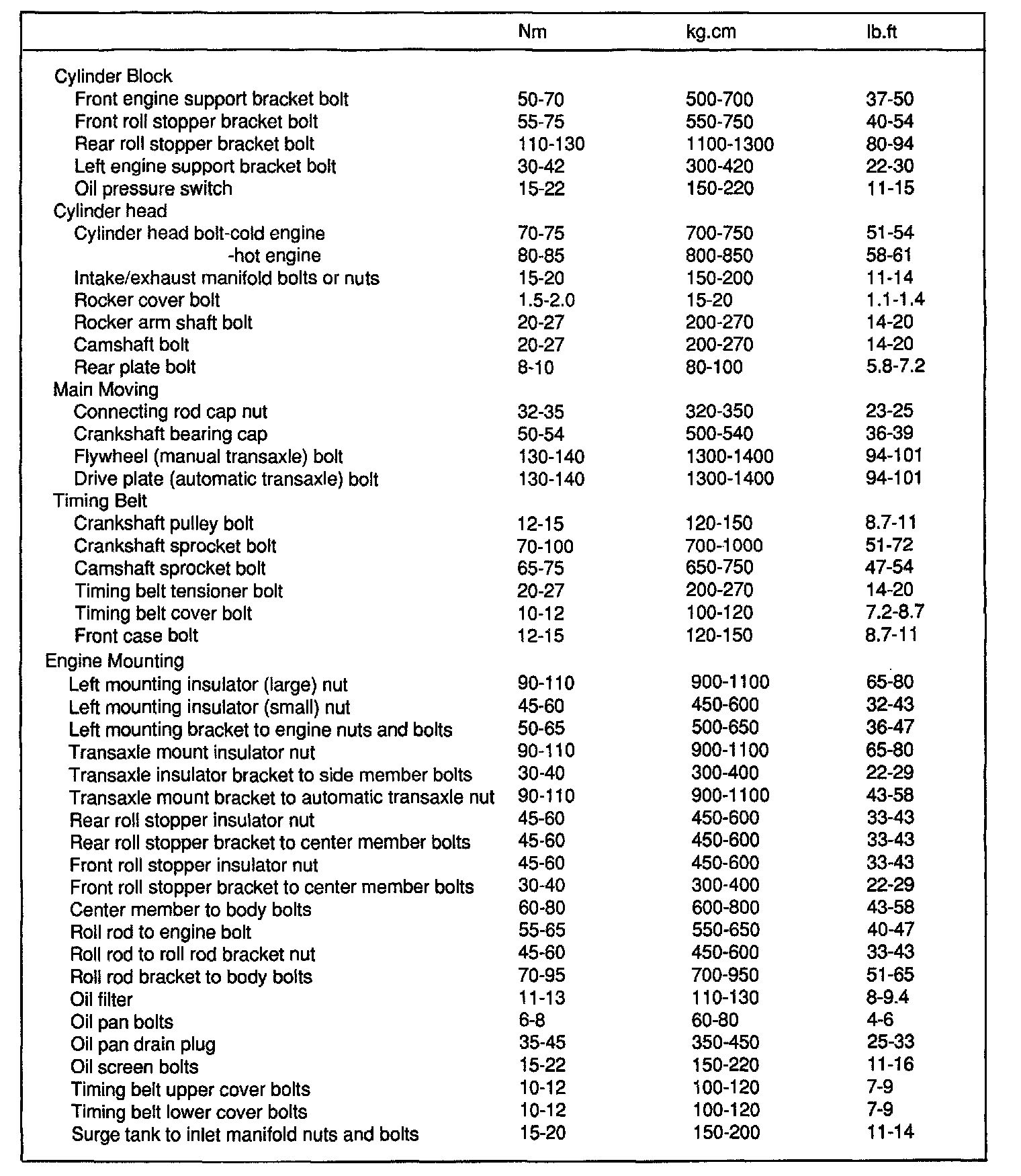

TIGHTENING TORQUE

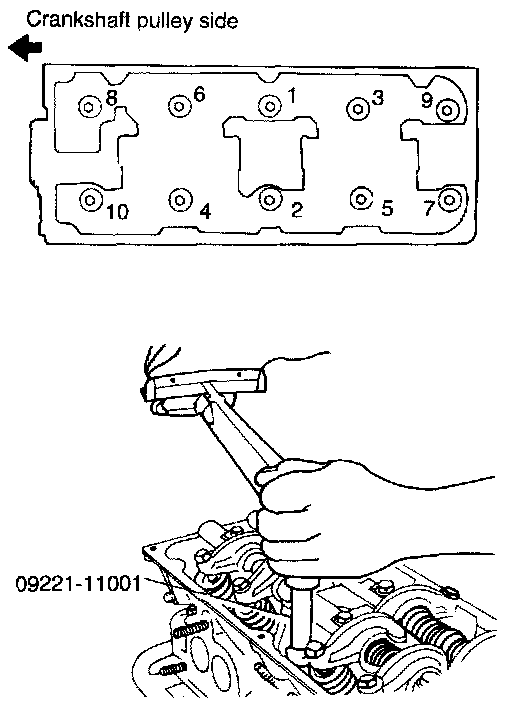

CYLINDER HEAD REMOVAL

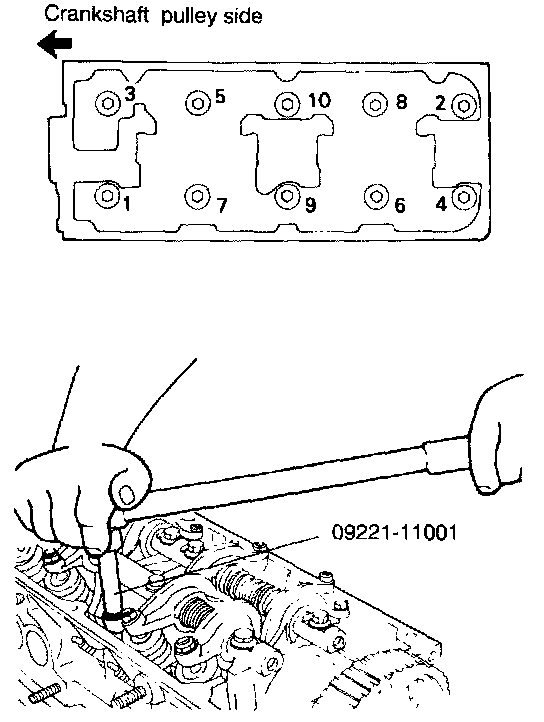

CYLINDER HEAD INSTALLATION

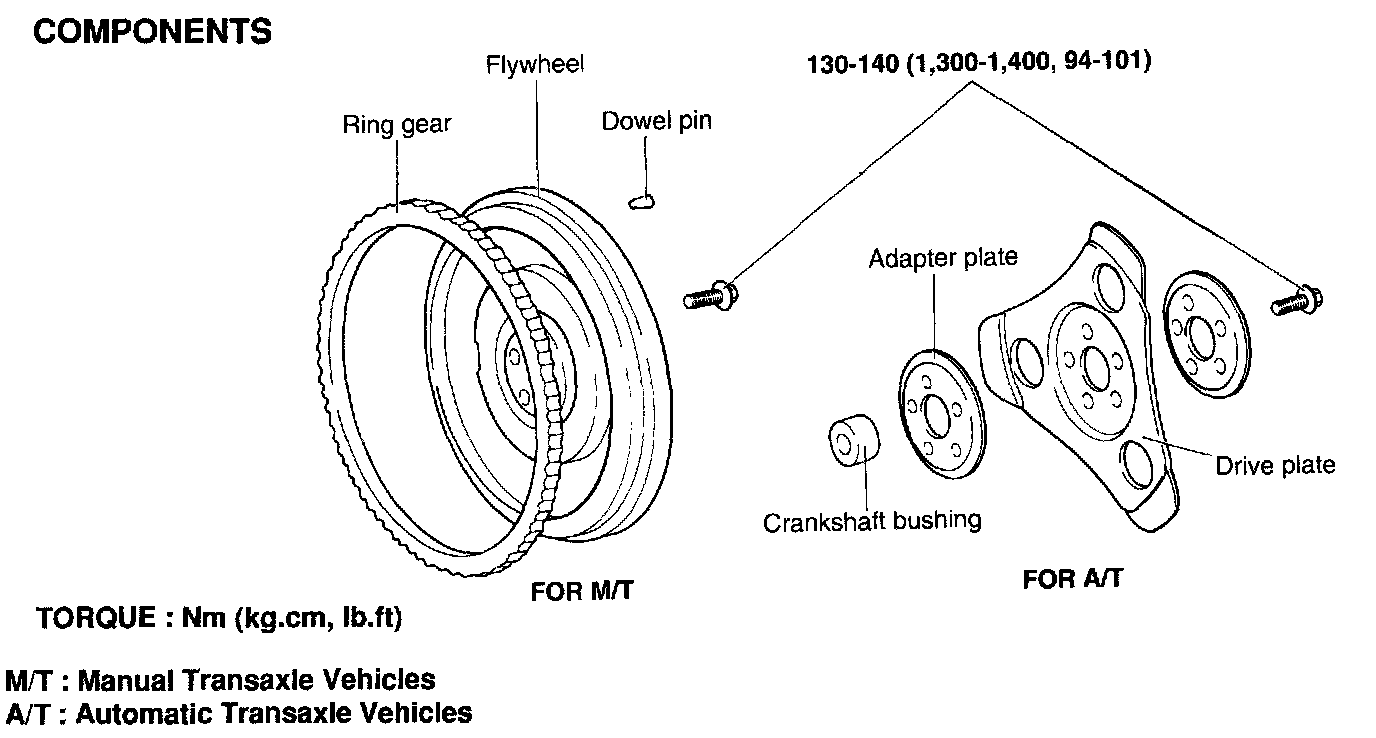

FLEX PLATE/FLYWHEEL INSTALLATION
