Connecting Rod: Service and Repair

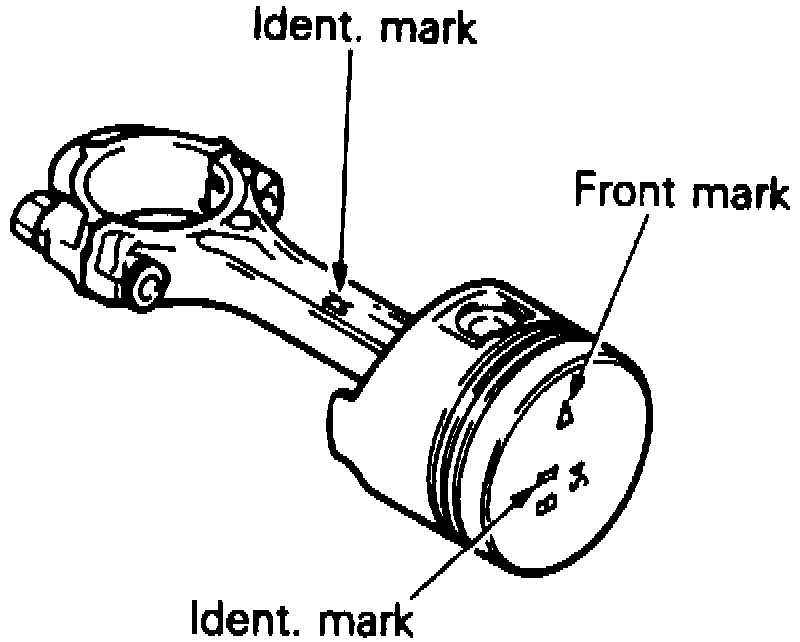

Fig. 15 Piston & Rod Assembly:

Piston and rod are assembled with indented arrow on piston and embossed numeral on rod facing toward front of engine, Fig. 15.

Pistons and rings are available in standard size and oversizes of 0.010,.020, 0.030 and 0.039 inch. Oversize pins are not available.
