Power Distribution Circuit

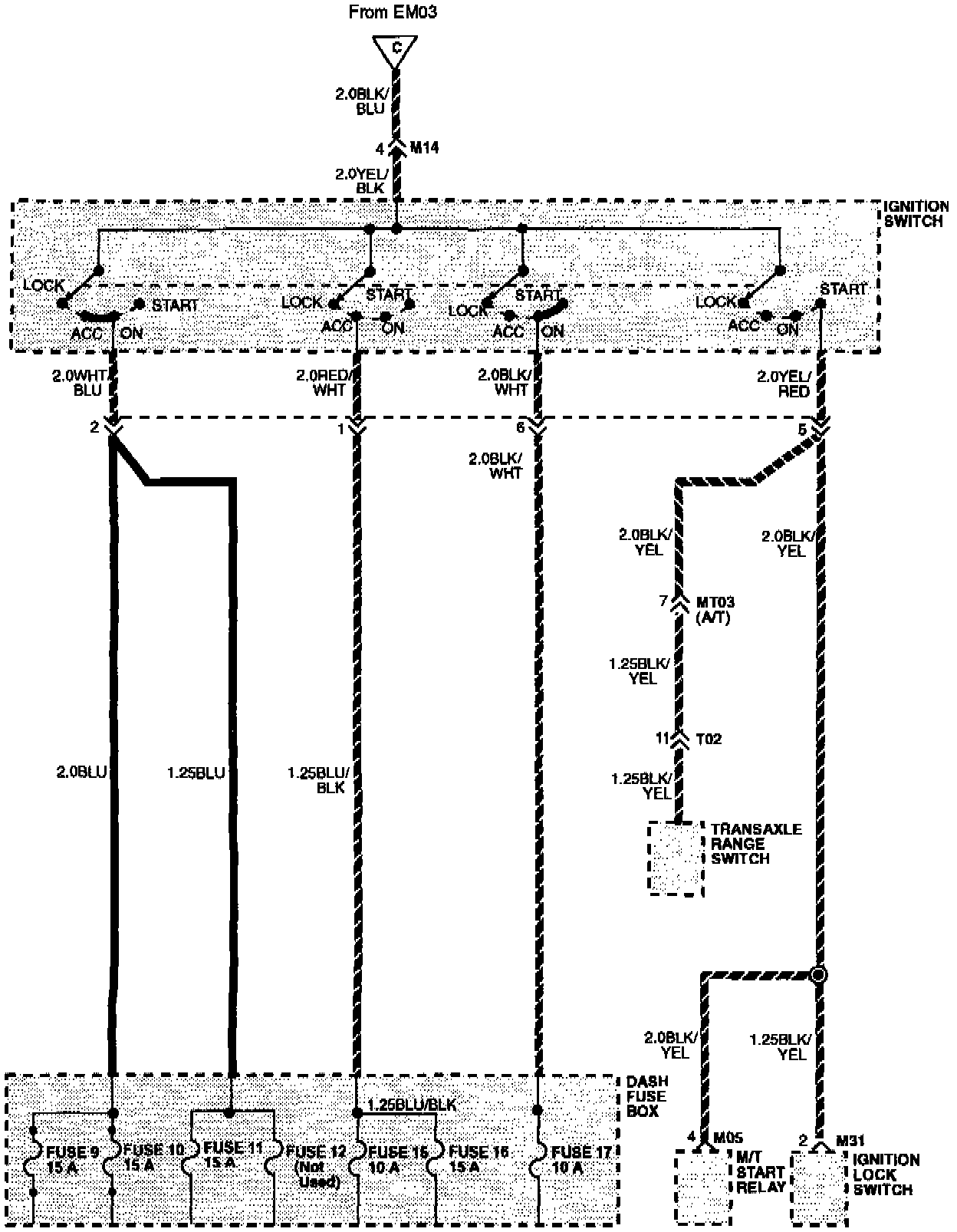

Power Distribution Wiring Diagram:

Part 1 of 5

Power Distribution Wiring Diagram:

Part 2 of 5

Power Distribution Wiring Diagram:

Part 3 of 5

Power Distribution Wiring Diagram:

Part 4 of 5

Power Distribution Wiring Diagram:

Part 5 of 5
