Home >> Mitsubishi >> 1994 >> Precis L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Joint Distribution >> Joint Distribution Connectors (M01-1)

Joint Distribution Connectors (M01-1)

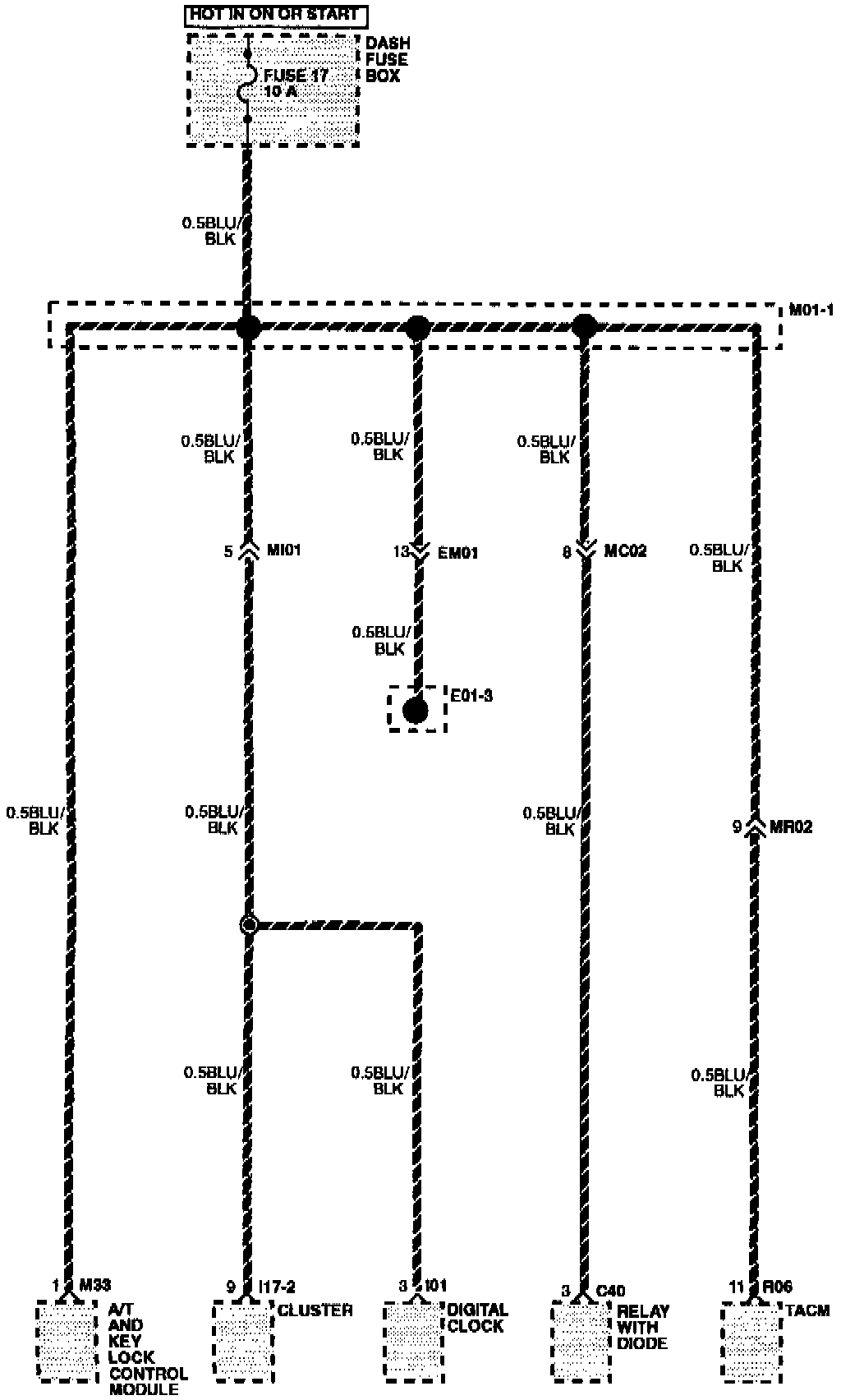

Joint Distribution Wiring Diagram (M01-1):
