Home >> Mitsubishi >> 1994 >> Precis L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Grounds >> Ground Distribution Connectors (G05/G06)

Ground Distribution Connectors (G05/G06)

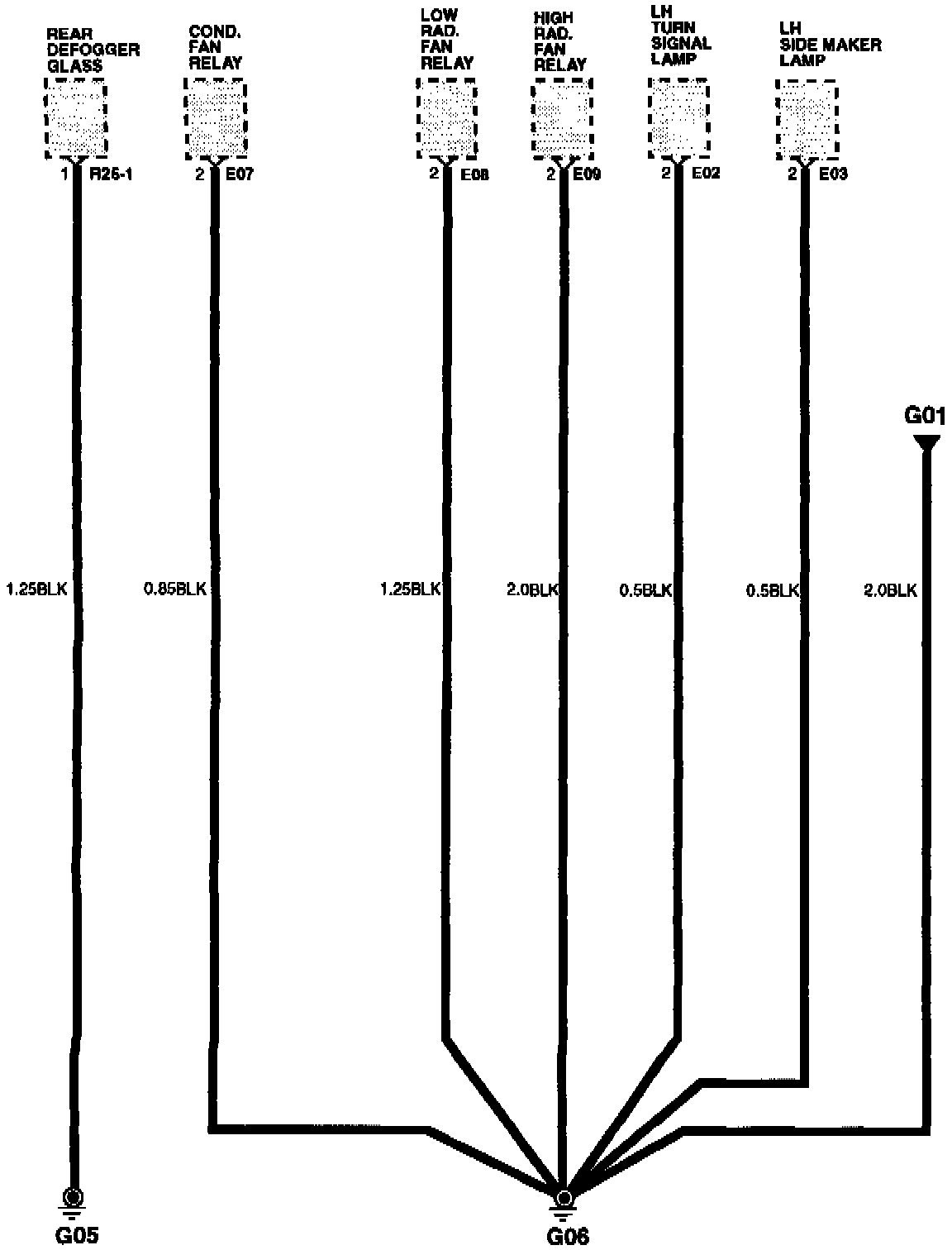

Ground Distribution Wiring Diagram (G05/G06):
