System Diagram

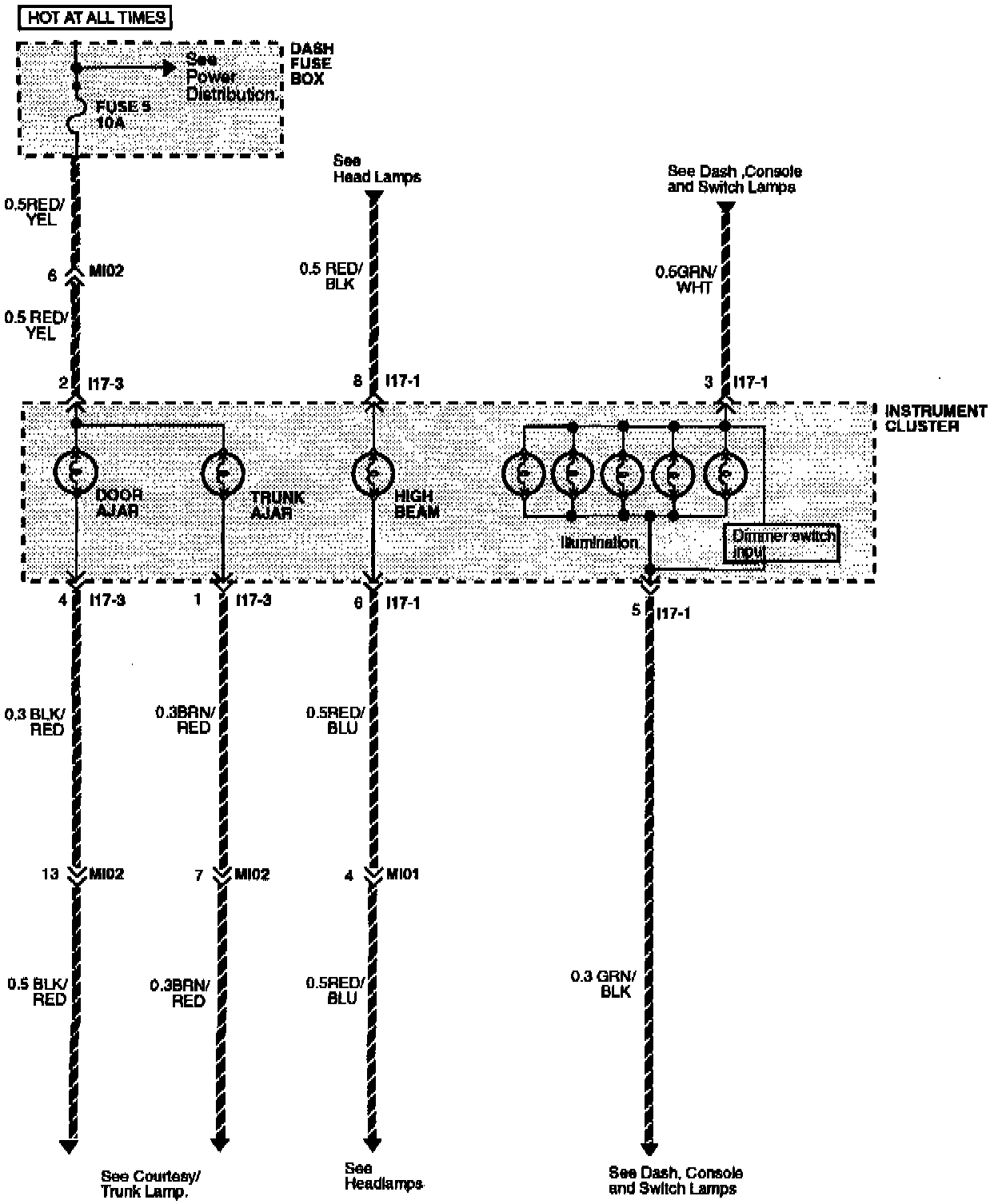

Indicators Wiring Diagram:

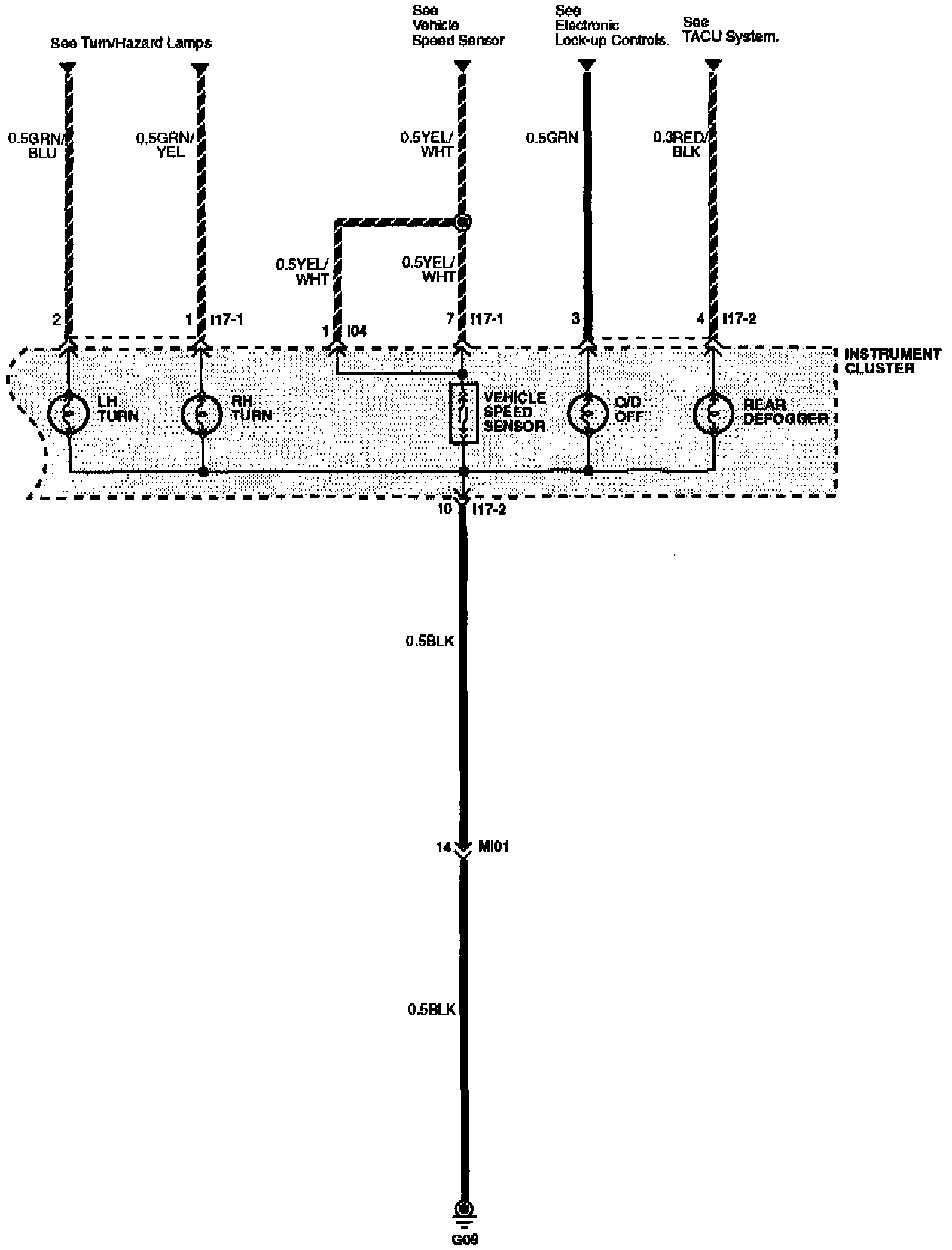

Indicators Wiring Diagram:

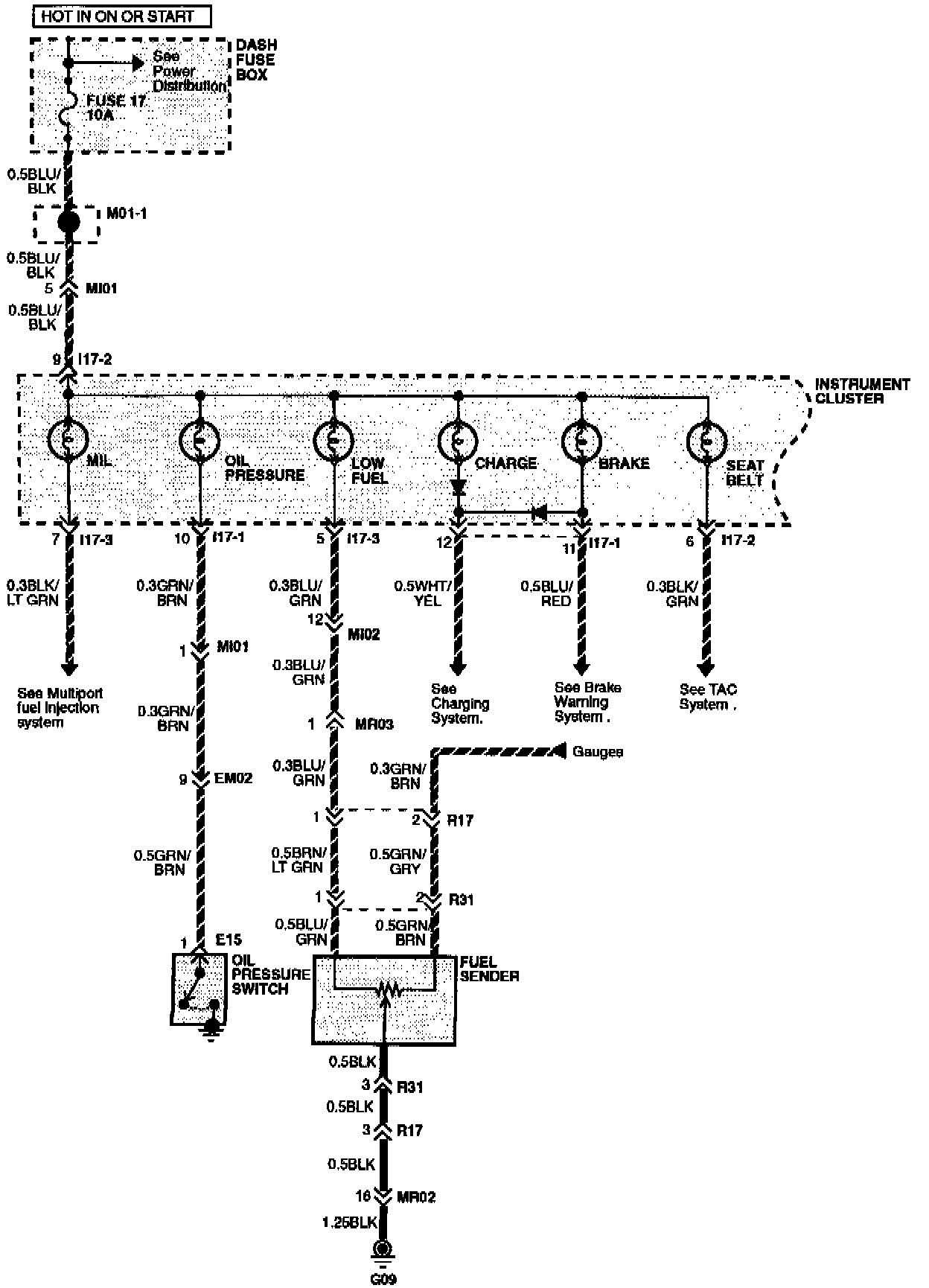

Indicators Wiring Diagram:



Gauges Wiring Diagram:
