Windshield Wiper Motor Replace

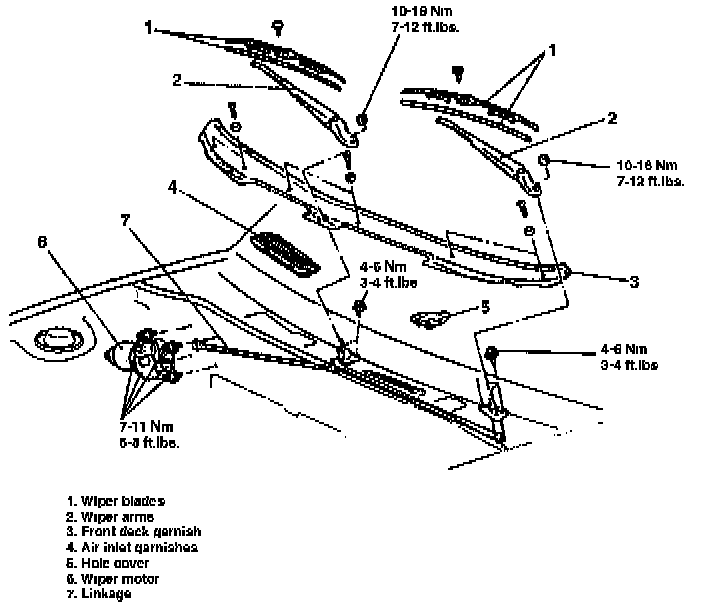

Fig. 21 Front Wiper Motor Replacement:

Remove front windshield wiper motor and transmission in numbered sequence, Fig. 21, noting the following:
1. Mark position of wiper arms before removal.
2. When mounting wiper arms check identification marks. "Dr" indicates driver side, "As" indicates passenger side.
3. Install wiper arm to pivot shaft so when in stop position wiper blades will be one inch from deck garnish.
4. Reverse procedure to install.
