Removal and Replacement

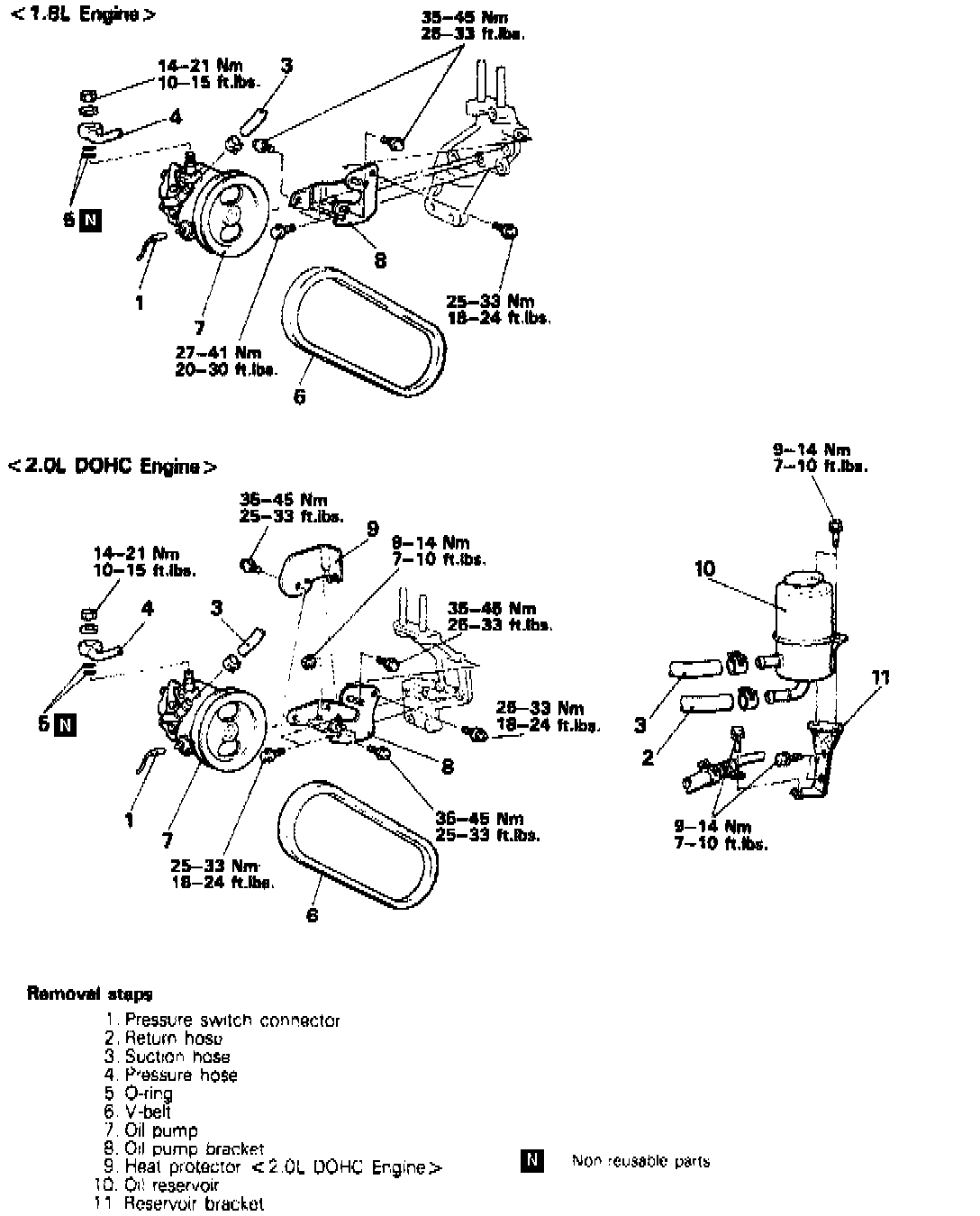

Fig. 39 Power Steering Pump Removal:

Remove steering pump in numbered sequence, Fig. 39, noting the following:
1. Remove reservoir cap and disconnect return hose to drain fluid.
2. Raise and support vehicle.
3. Disconnect high tension cable, then turn crank engine to drain fluid from gearbox.
4. Cover alternator (located under oil pump) if any hoses are removed.
5. Reverse procedure to install. When connecting pressure hose, ensure slit contacts oil pump guide bracket.
