Cranking Signal: Testing and Inspection

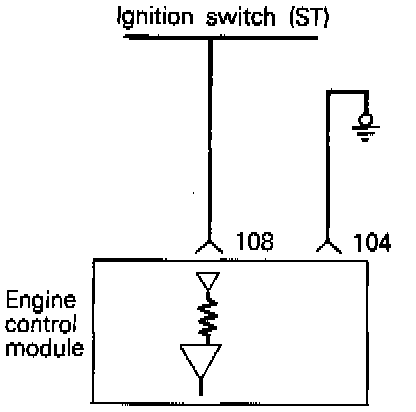

CIRCUIT DIAGRAM

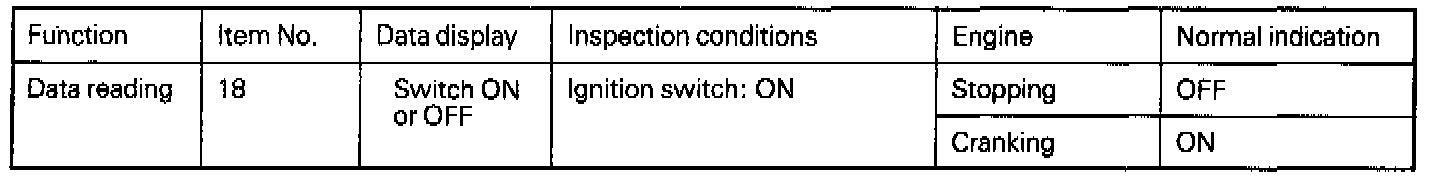

USING SCAN TOOL

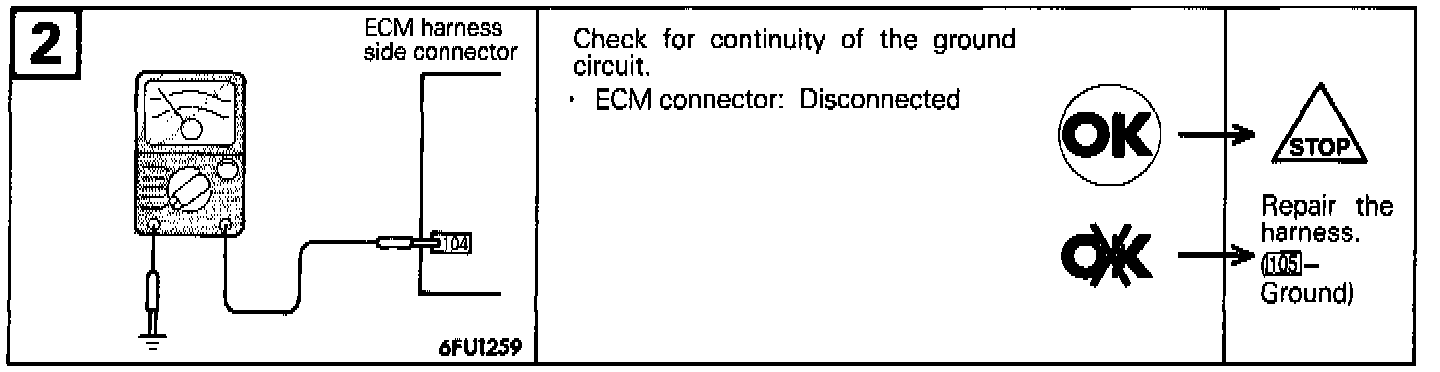

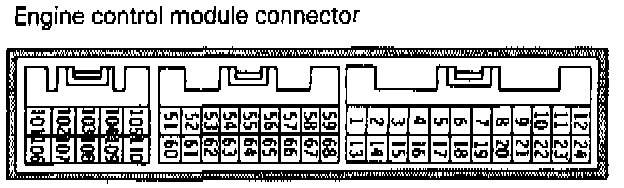

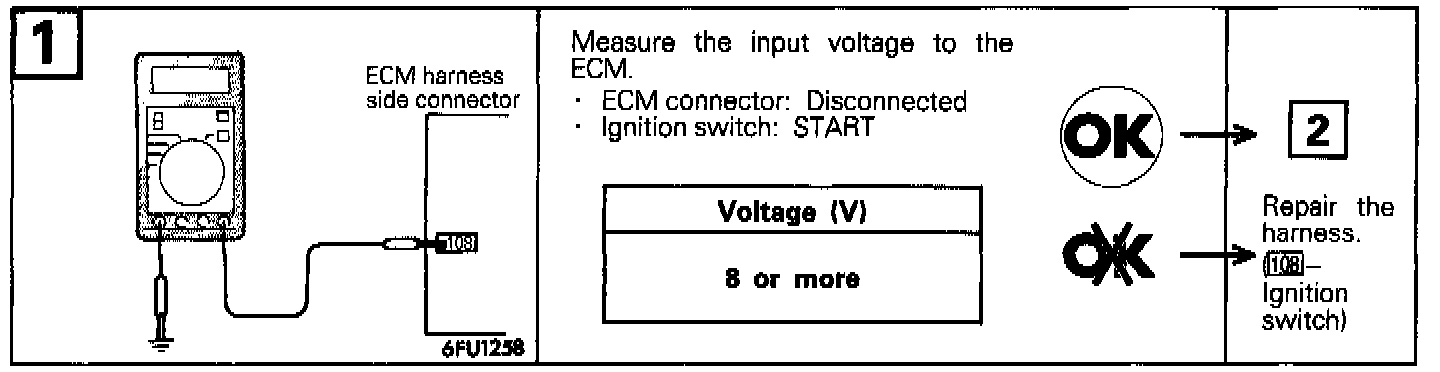

HARNESS INSPECTION PROCEDURES
