Removal And Installation Steps

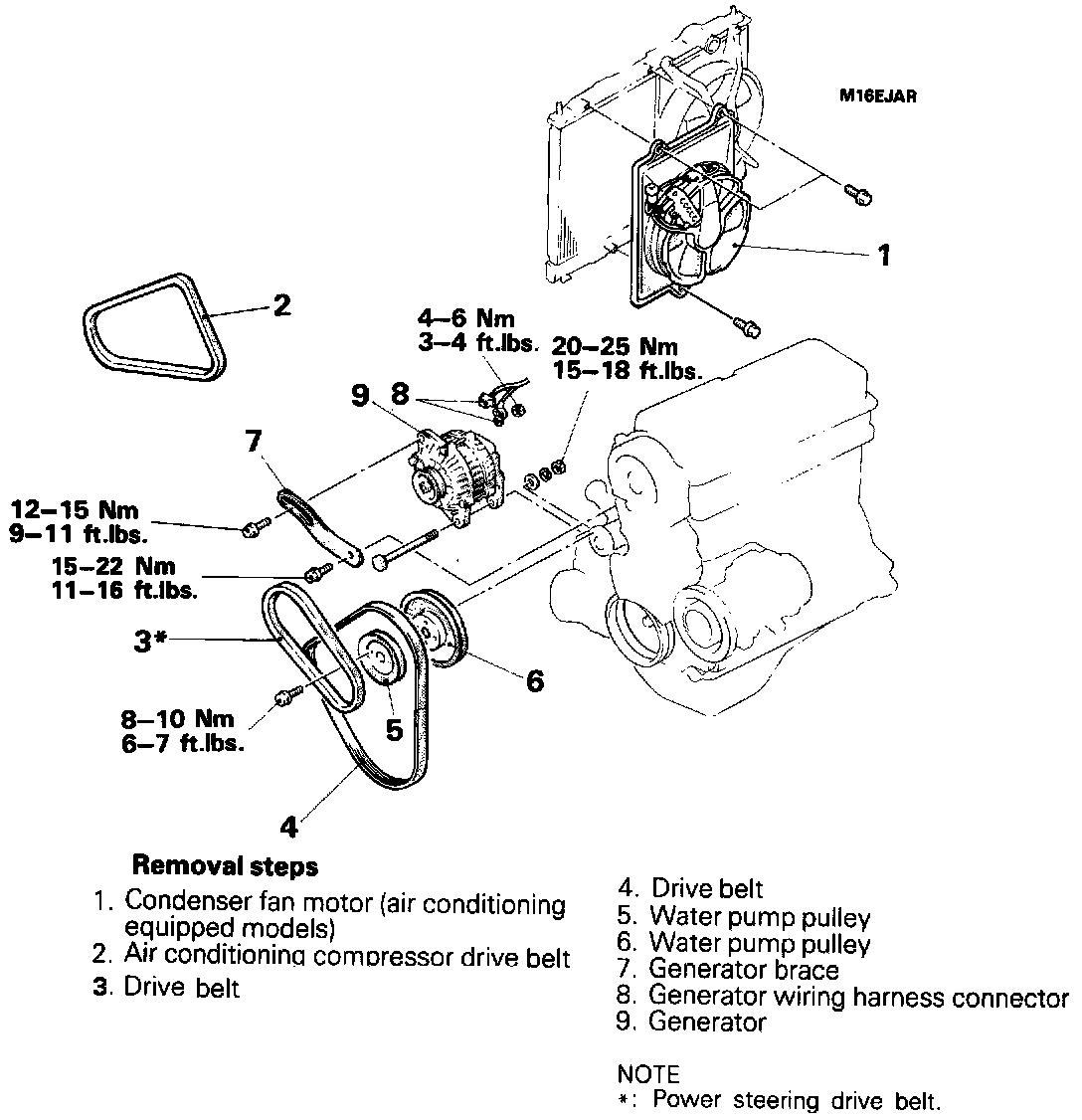

Alternator - Removal And Installation:

REMOVE
1. Condenser fan motor
2. Air Conditioning compressor drive belt
3. Drive belt*
4. Drive belt
5. Water pump pulley
6. Water pump pulley
7. Alternator brace
8. Alternator wiring harness connector
9. Alternator

INSTALL
1. Alternator
2. Alternator wiring harness connector
3. Alternator brace
4. Water pump pulley
5. Water pump pulley
6. Drive belt
7. Drive belt*
8. Air Conditioning compressor drive belt
9. Condenser fan motor

NOTE: * Power steering drive belt
