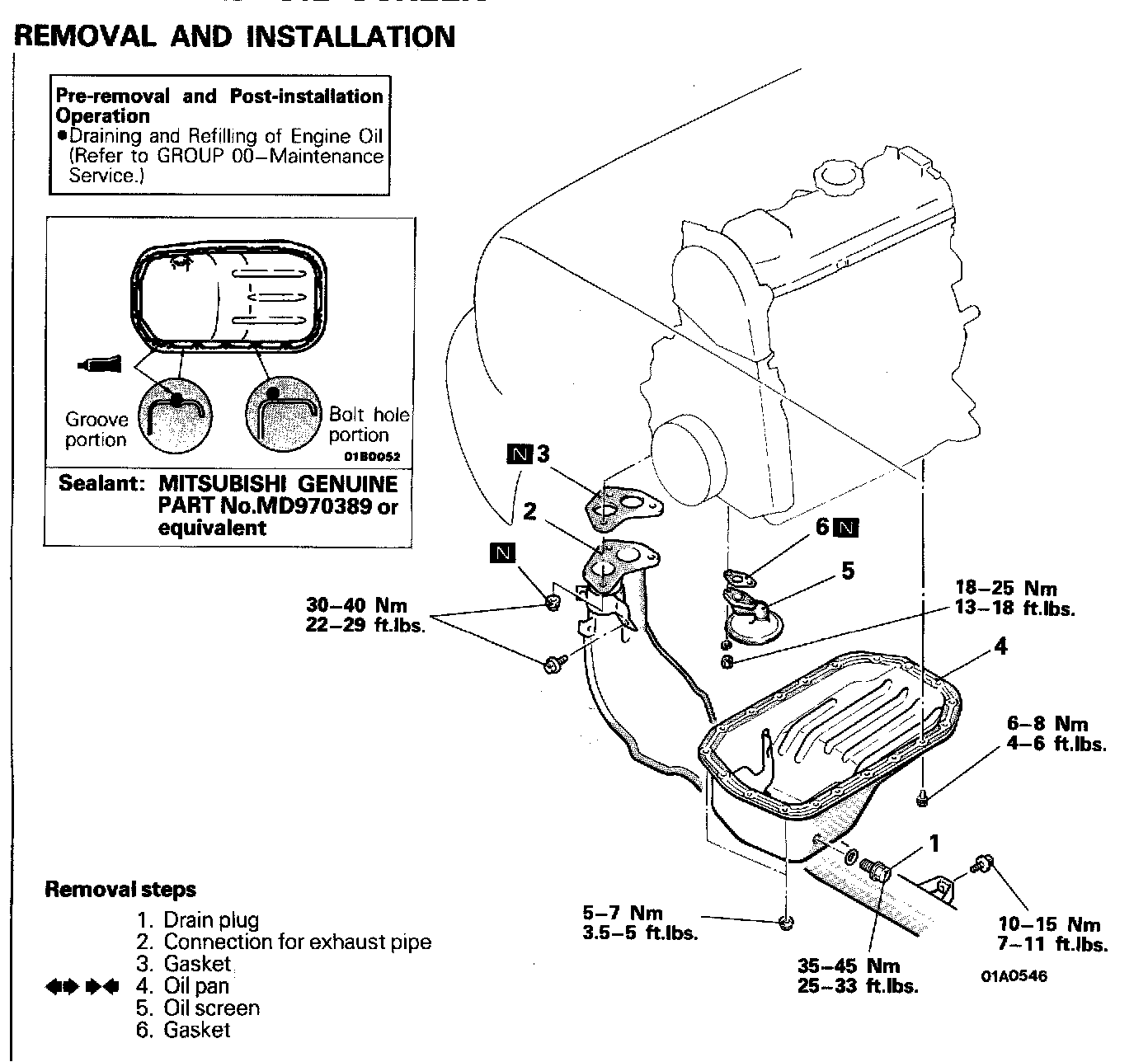

Oil Pan: Service and Repair

SERVICE POINTS OF REMOVAL
1. REMOVAL OF OIL PAN
(1) Remove the oil pan mounting bolts.

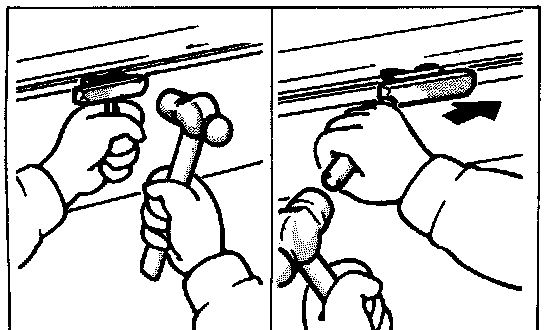

(2) Tap the general service tool in between the cylinder block and the oil pan.

Caution;

Do not use a screwdriver, a chisel or a similar tool when removing the oil pan.
(3) Remove the oil pan by placing a brass bar at the corner of the special tool and then tapping with a hammer.
INSPECTION
^ Check the oil pan for damage and cracks. Replace if faulty.
^ Check the oil screen for clogging; damage and cracks. Replace if faulty.






SERVICE POINTS OF INSTALLATION
1. INSTALLATION OF OIL PAN

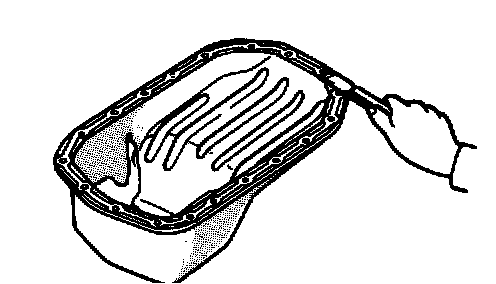

(1) Use a wire brush or other tool to scrape clean all gasket surfaces of the cylinder block and oil pan so that all loose material is removed.
(2) Gasket surfaces must be free of oil and dirt.

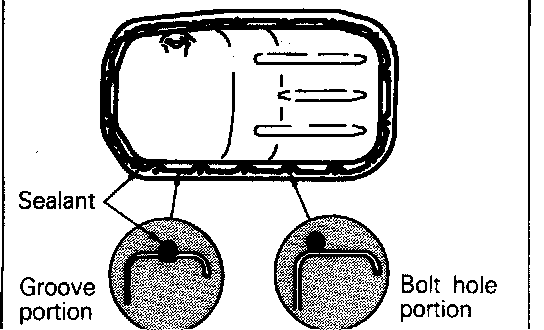

(3) Apply the specified sealant around the gasket surface of oil pan as specified in illustration.
Specified sealant: MITSUBISHI GENUINE PART No.MD970389 or equivalent

NOTE: The sealant should be applied in a continuous bead approximately 4 mm (.16 in.) in diameter.

(4) Assemble oil pan to cylinder block within 15 minutes after applying the sealant.

Caution: After installing the oil pan, wait at least 30 minutes before starting the engine.
