EGR Control Solenoid Valve California

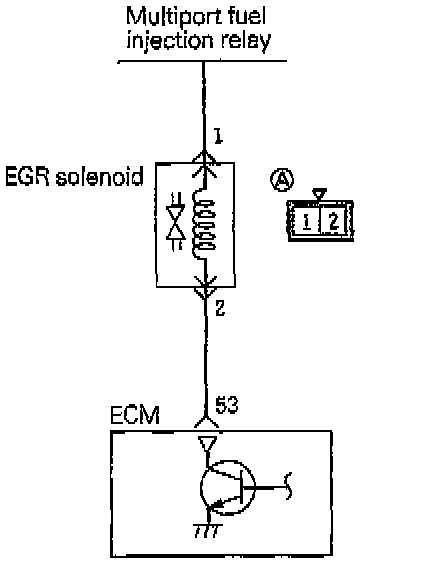

CIRCUIT DIAGRAM





USING SCAN TOOL

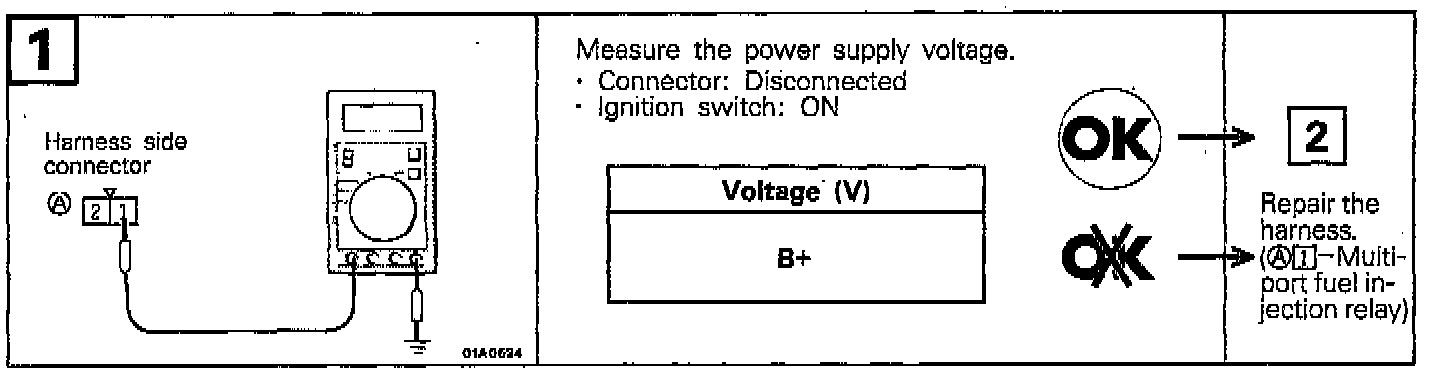

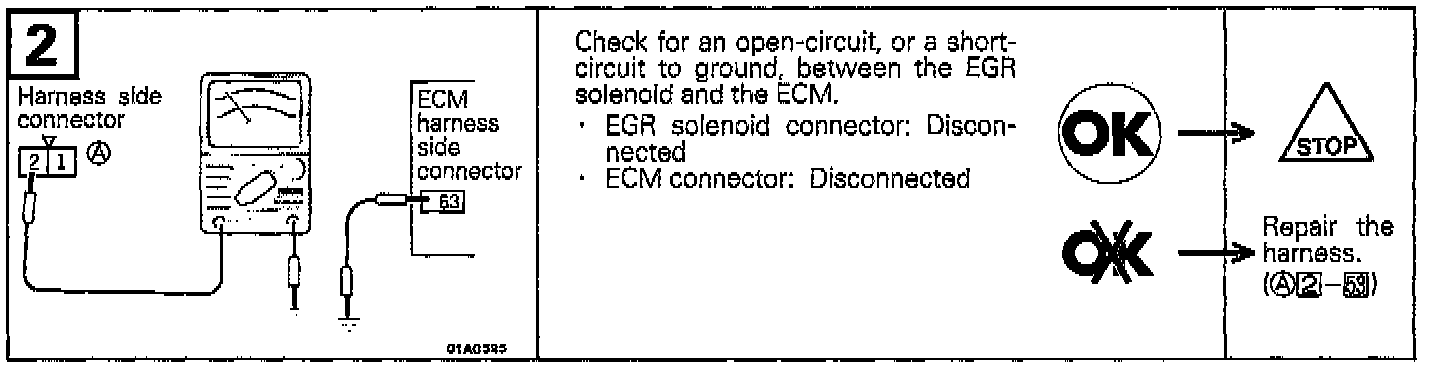

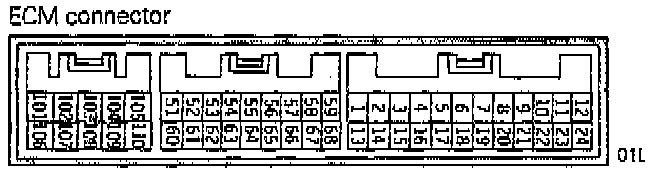

HARNESS INSPECTION PROCEDURES

TROUBLESHOOTING HINTS
When the wire is broken, the EGR solenoid is turned off to lower the EGR temperature.
