Home >> Mitsubishi >> 1994 >> Eclipse L4-1755cc 1.8L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Items Indicated By the Malfunction Indicator Lamp

Items Indicated By the Malfunction Indicator Lamp

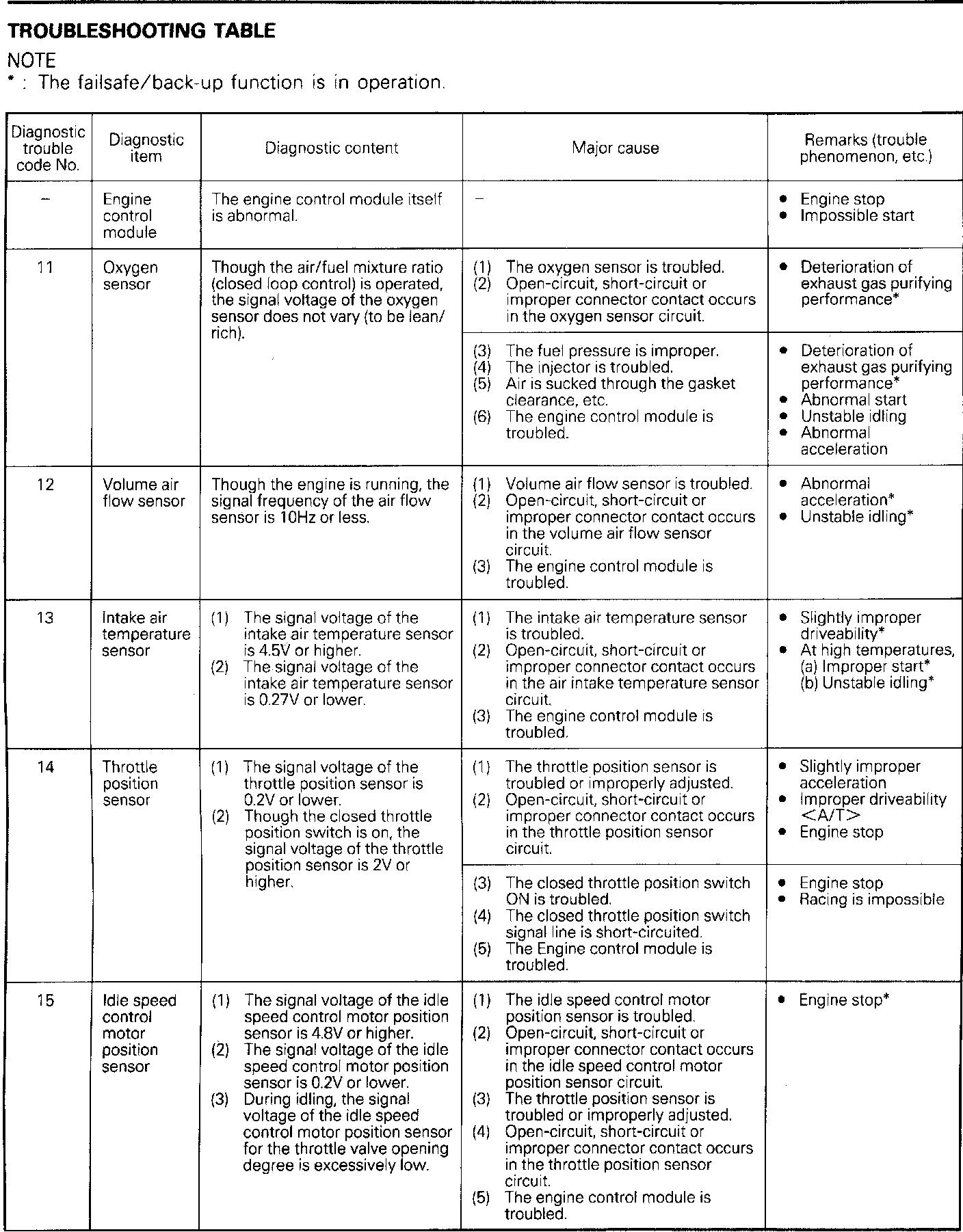

Code 11 - Code 15:

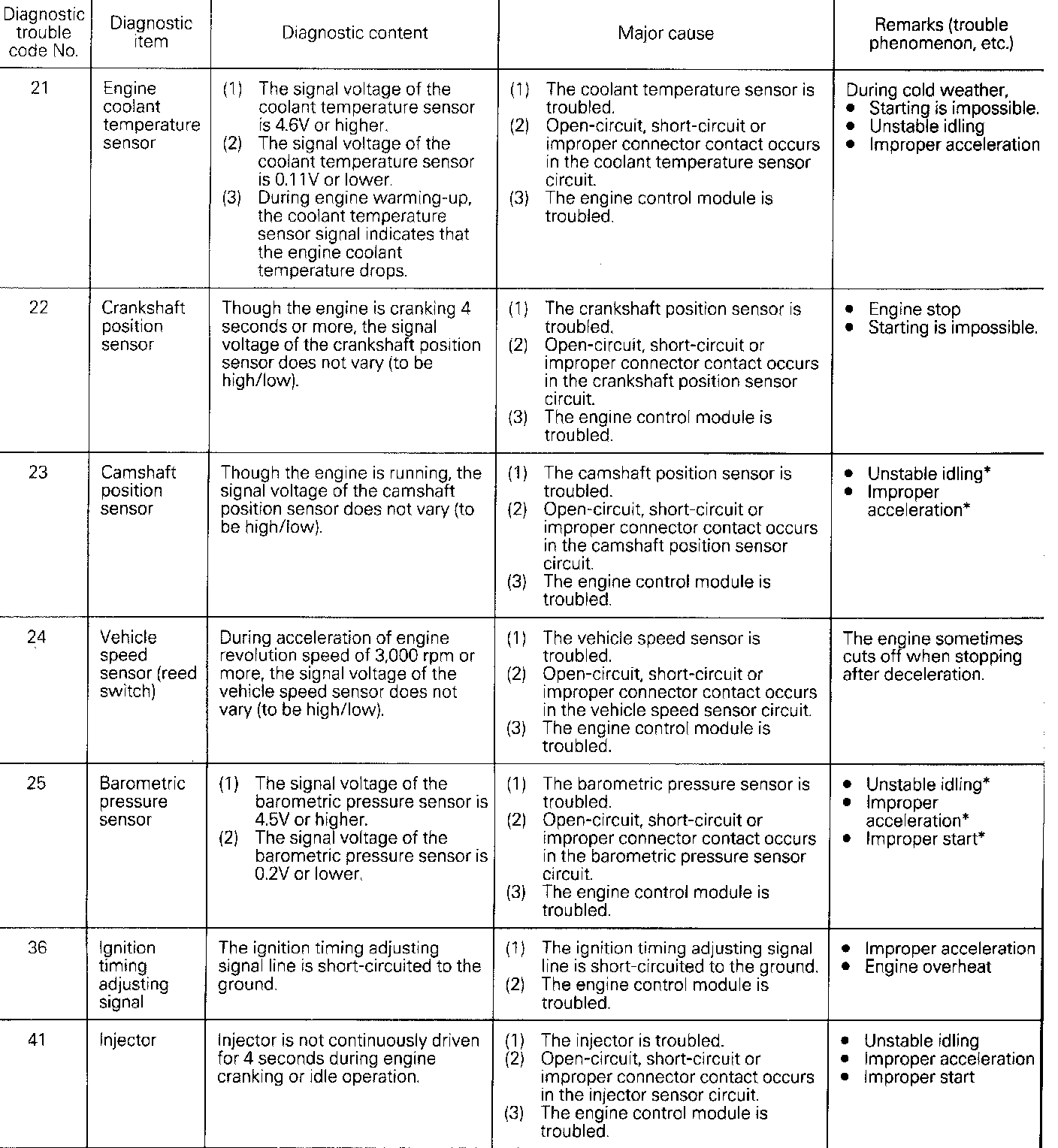

Code 21 - Code 41:

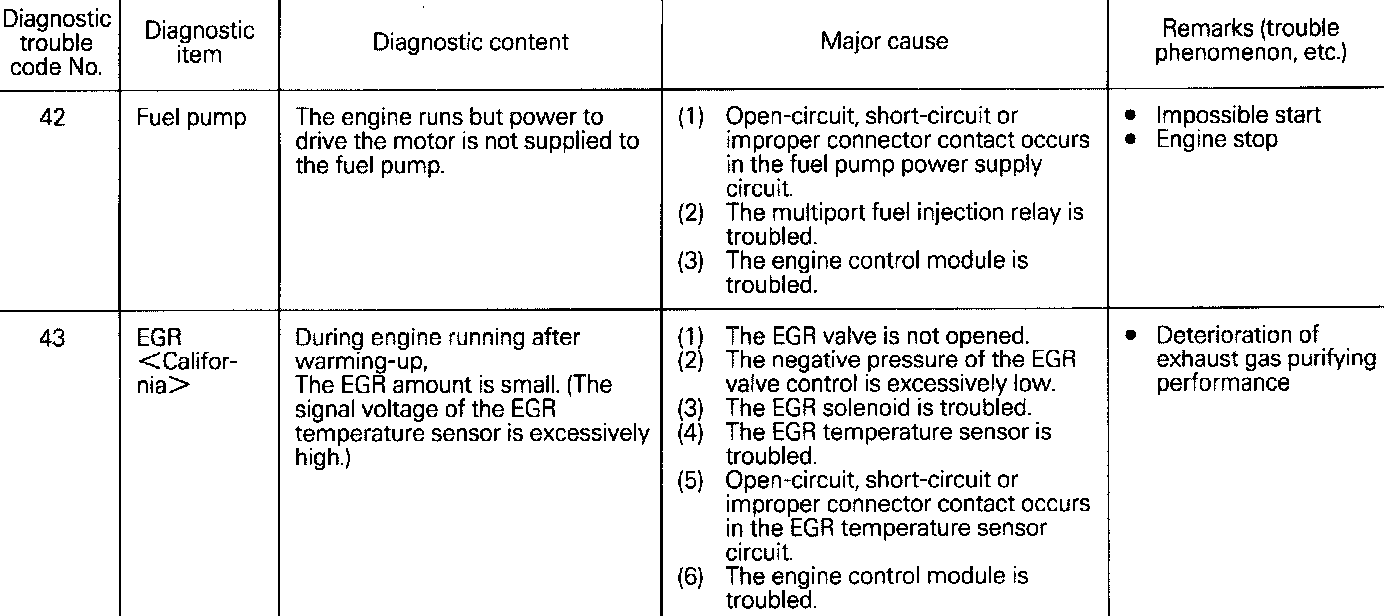

Code 42 - Code 43:
