Windshield Wiper and Washer

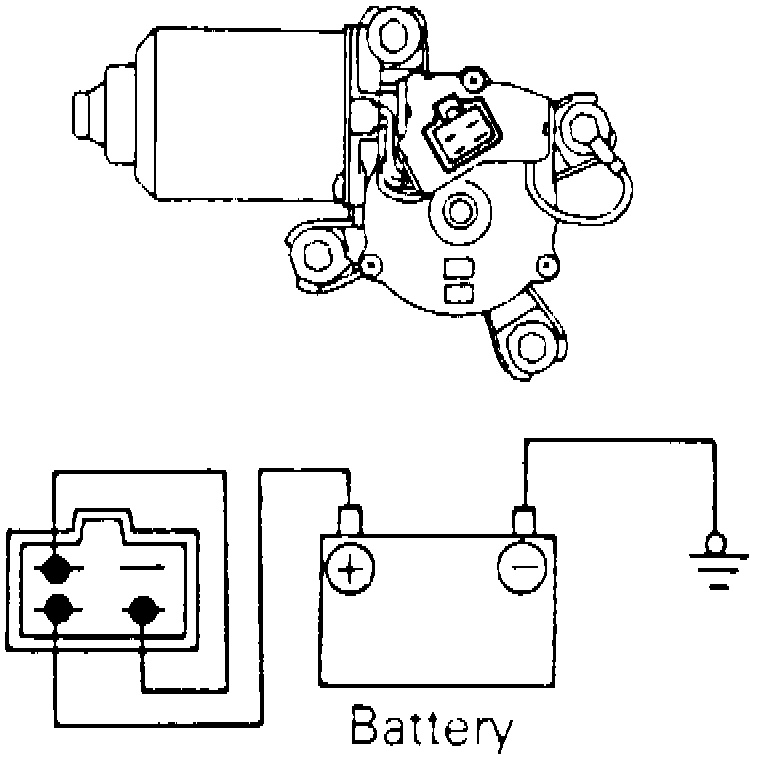

Fig. 22 Low Speed Wiper Motor Operation:

1. Connect battery to wiper motor as shown in Fig. 22. Ensure motor works at low speed.

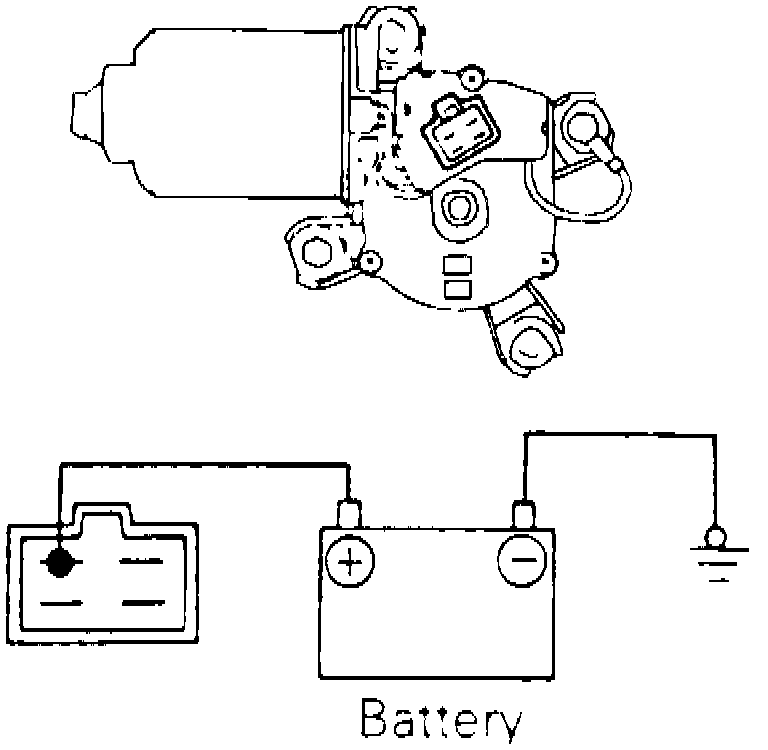

Fig. 23 High Speed Wiper Motor Operation:

2. Connect battery to wiper motor as shown in Fig. 23. Ensure motor works at high speed.
3. Operate wiper at low speed and disconnect lead from battery.

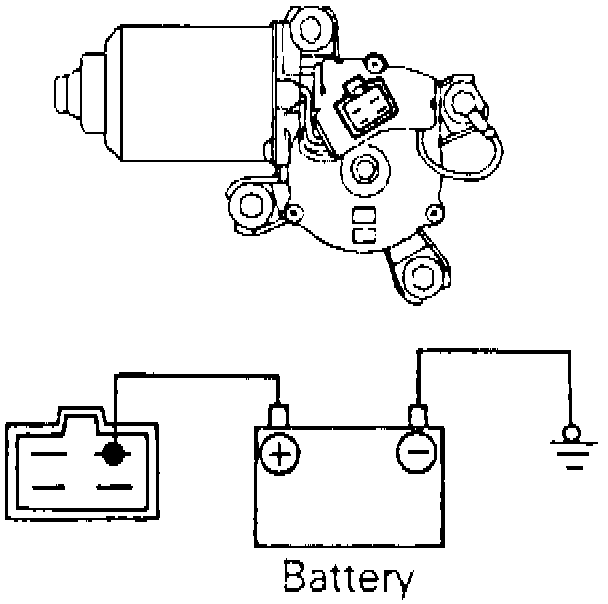

Fig. 24 Wiper Motor Stop Position:

4. Connect battery as shown in Fig. 24. Ensure motor starts on low speed, then stops at automatic stop position.
