Rear Wiper and Washer

Do not remove the wiper motor for testing purposes.

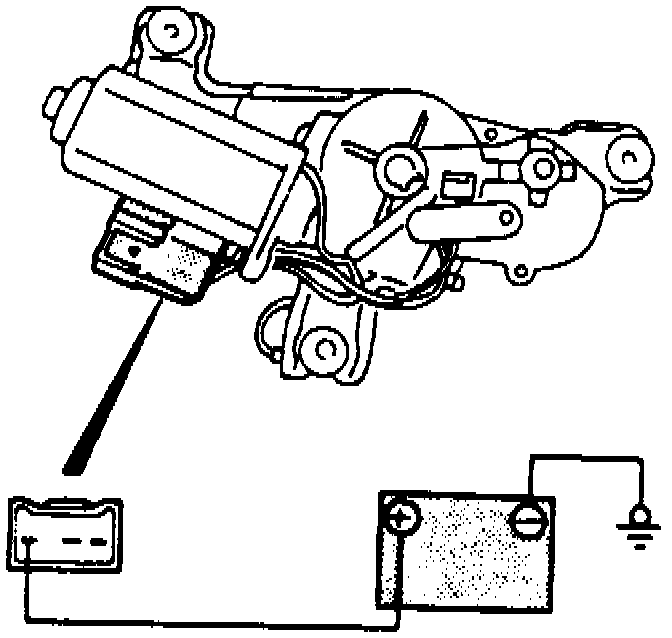

Fig. 31 Rear Wiper Operation Inspection:

Fig. 33 Rear Wiper Auto Stop Operation Inspection:

1. Connect battery as shown in Fig. 31 and ensure proper low and high speed operation.
2. Connect jumper and battery as shown in Fig. 33. Ensure motor starts to run, then stops in automatic stop position.
