Rear Window Defogger Switch

Rear Window Defogger Switch - Inspection:




Rear Window Defogger:

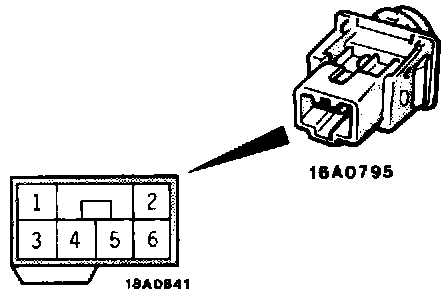

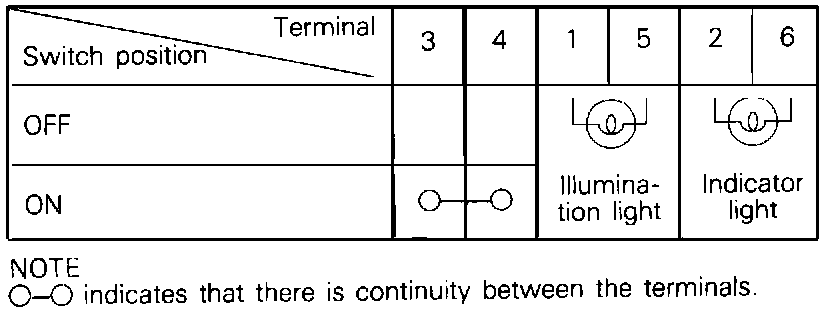

Operate the switch and check the continuity between the terminals.
