Heated Glass Element Grid Test

Printed-Heater Lines Check:

1. Run engine at 2,000 rpm. Check heater element with battery at full.

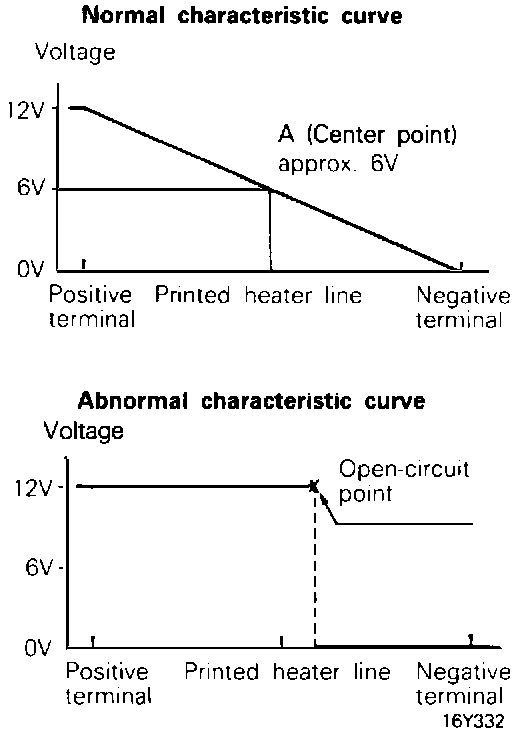

2. Turn ON rear window defogger switch. Measure heater element voltage with circuit tester at rear window glass center A.
Condition good if indicating about 6 V.
3. If 12 V is indicated at A, there is a break in the negative terminals from A.
Move test bar slowly to negative terminal to detect where voltage changes suddenly (O V).
4. If O V is indicated at A, there is a break in the positive terminals from A. Detect where the voltage changes suddenly (1.2 V) with the same method described.
