Transfer Case - Four Wheel Drive

TRANSFER CASE - 4WD

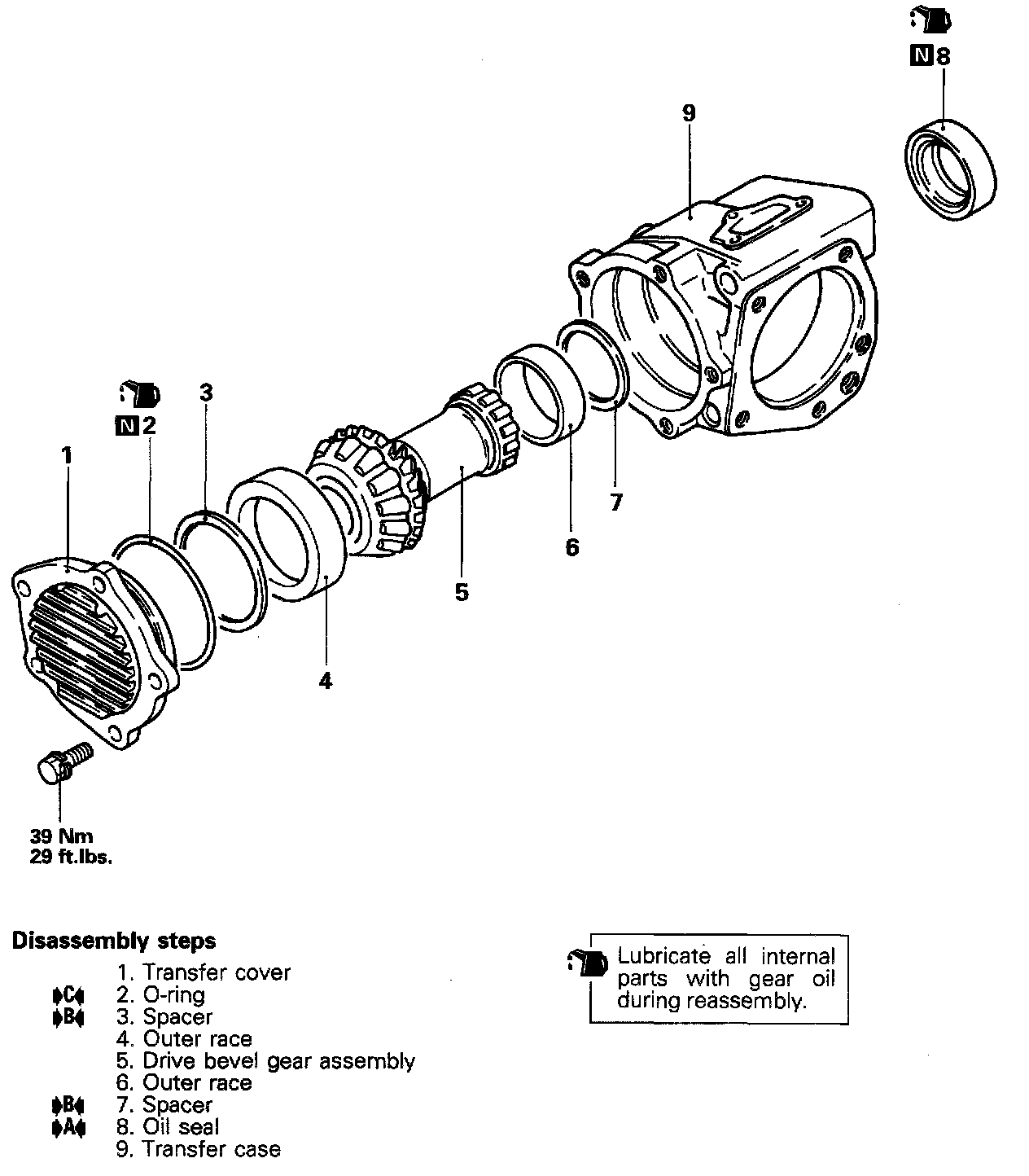

DISASSEMBLY AND REASSEMBLY


REASSEMBLY SERVICE POINTS

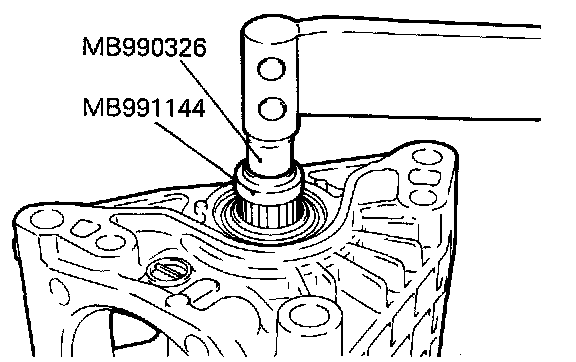

A. OIL SEAL INSTALLATION

B. SPACER SELECTION





(1) Use the existing spacer to assemble the transfer case.

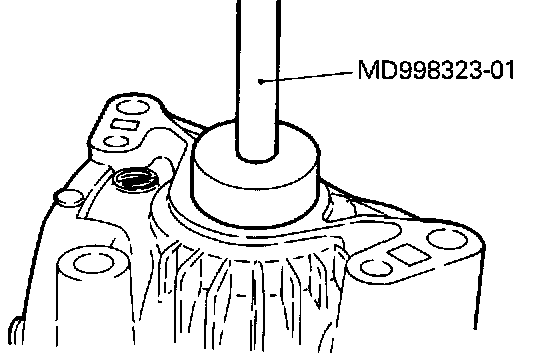

(2) Using the special tool, check that the bevel gear rotating drive torque is within standard range.

Standard value:
1.7 - 2.5 Nm (1.23- 1.81 ft.lbs.)

(3) If the rotating drive torque is outside of the standard range, adjust using adjusting spacers.

NOTE For adjustment, use two spacers of which thickness is as close as possible to each other.

C. 0-RING INSTALLATION

CAUTION: Apply transmission oil to the 0-ring before installation.
