Extension Housing

EXTENSION HOUSING (4WD)





DISASSEMBLY AND REASSEMBLY

REASSEMBLY SERVICE POINTS





A. OIL SEAL INSTALLATION

B. AIR BLEEDER INSTALLATION

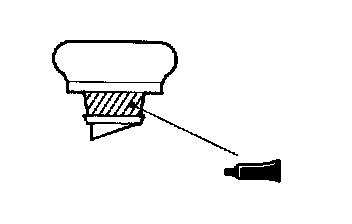

(1) Install the air bleeder applying sealant to the inserting portion.

Specified sealant:
3M SUPER WEATHERSTRIP No.8001 or equivalent
