Drive Bevel Gear - Four Wheel Drive

DRIVE BEVEL GEAR - 4WD

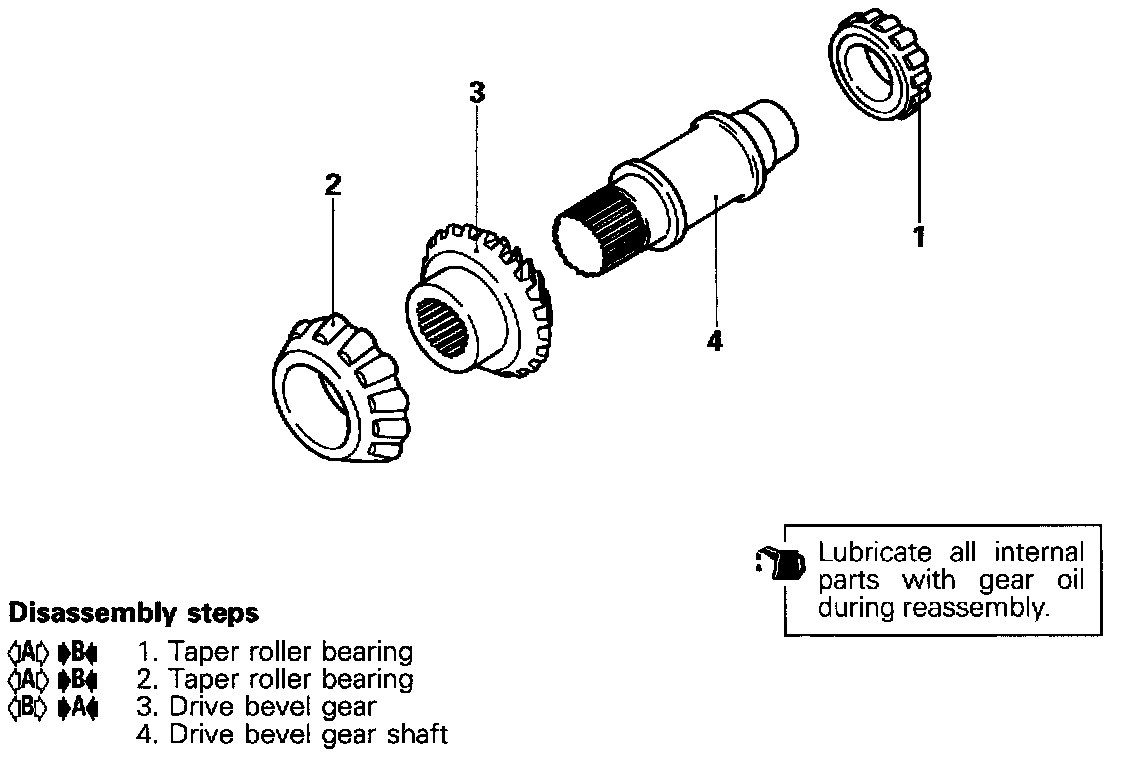

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINTS

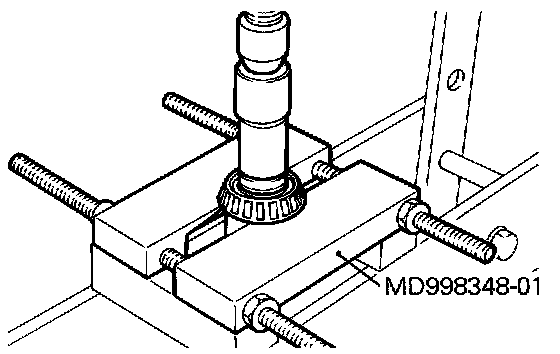

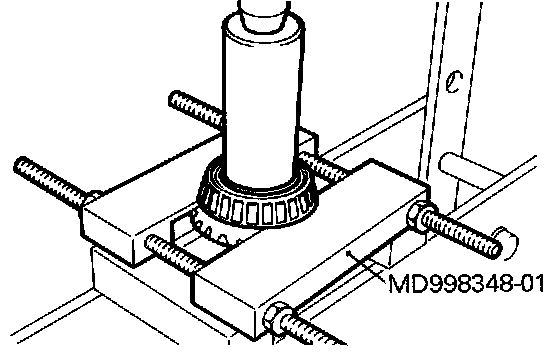

A. TAPER ROLLER BEARING REMOVAL

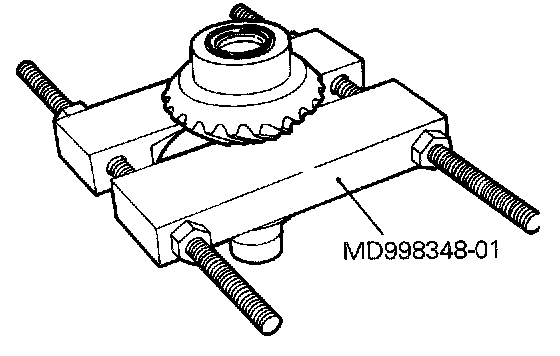

B. DRIVE BEVEL GEAR REMOVAL

REASSEMBLY SERVICE POINTS

A. TRANSFER DRIVE BEVEL GEAR INSTALLATION

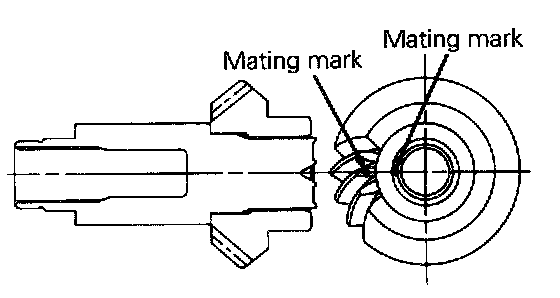

(1) Install the drive bevel gear and drive bevel gear shaft with the mating marks aligned.

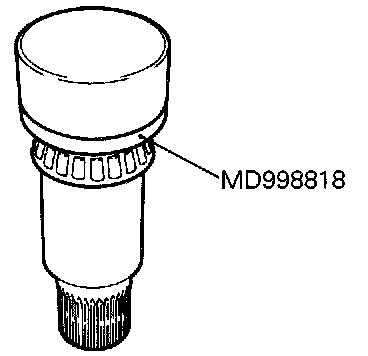

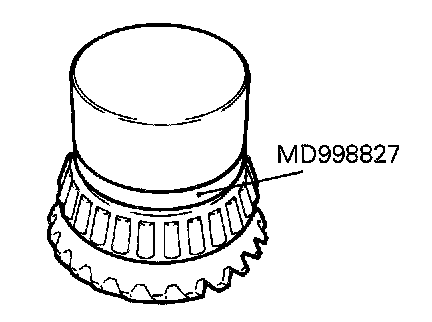

B. TAPER ROLLER BEARING INSTALLATION
