Clutch Housing

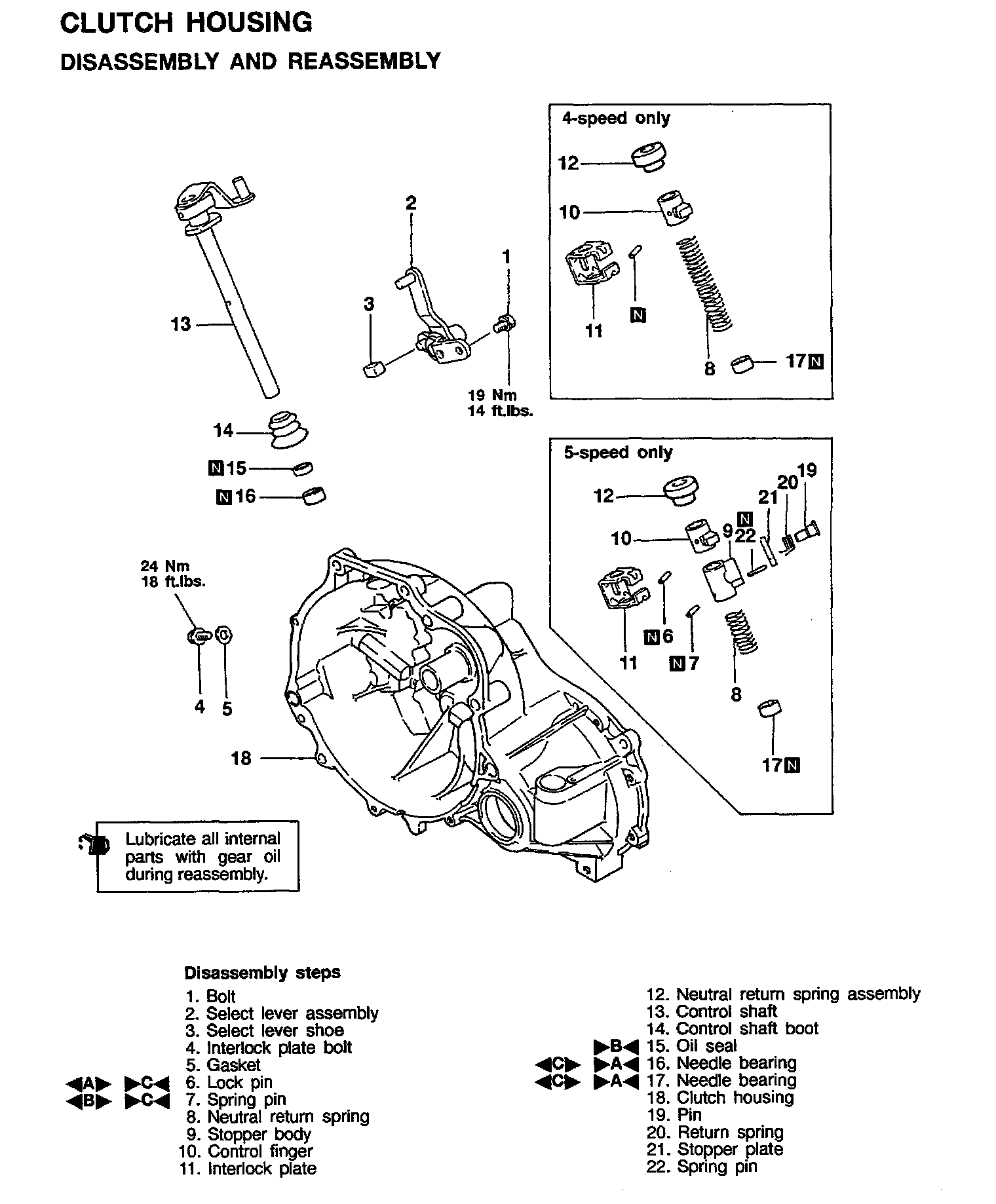

CLUTCH HOUSING

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINTS

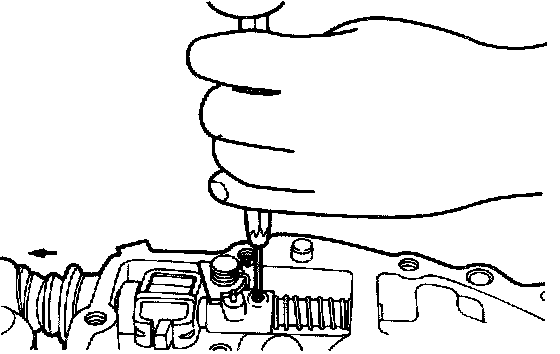

A. LOCK PIN REMOVAL

CAUTION: When removing the lock pin, turn the control lever to such position that the lock pin will not contact the clutch housing.

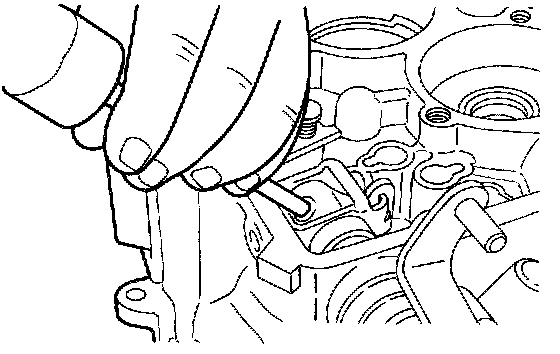

B. SPRING PIN REMOVAL





CAUTION: When removing the spring pin, pull the control shaft in the direction illustrated so that the spring pin will not contact the clutch housing.

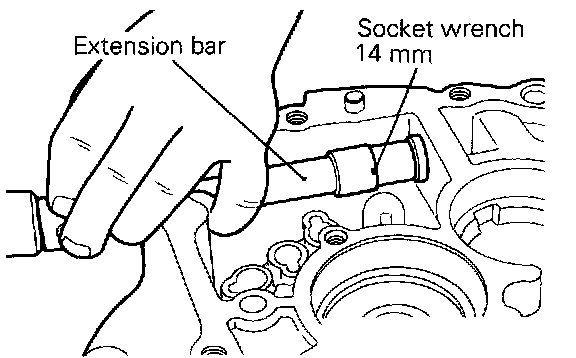

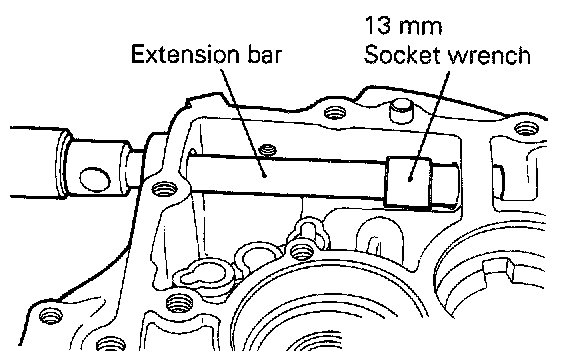

C. NEEDLE BEARING REMOVAL

REASSEMBLY SERVICE POINTS

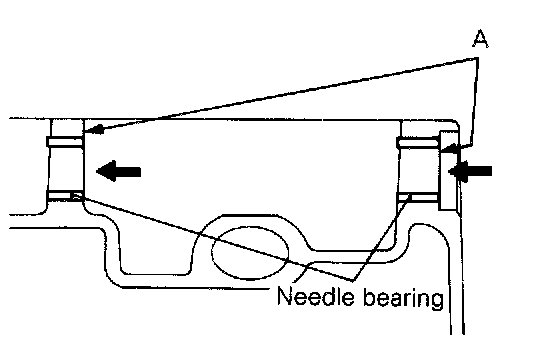

A. NEEDLE BEARINGS INSTALLATION








(1) Install the needle bearing flush with the surface A of the clutch housing using a socket wrench.
(2) Install with the part type stamped side facing the surface A.

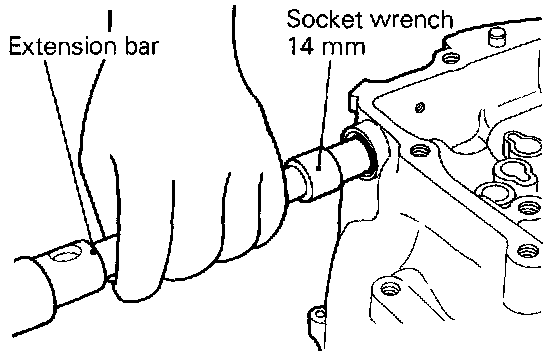

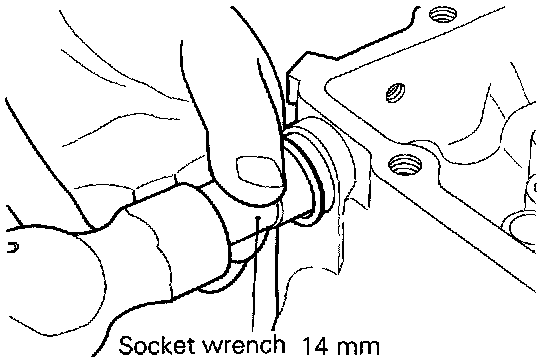

B. OIL SEAL INSTALLATION

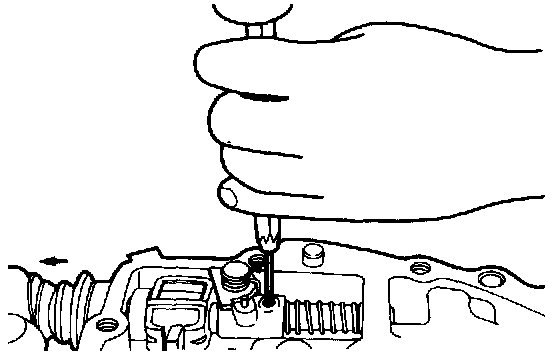

C. SPRING PIN / LOCK PIN INSTALLATION








CAUTION:
- Do not reuse the spring pin and lock pin.

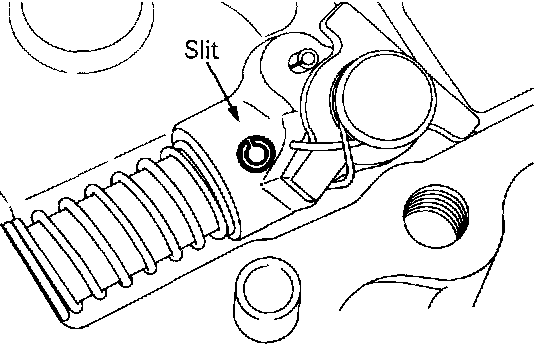

- Install the spring pin in such a way its slit will be at right angle to the control shaft center.
