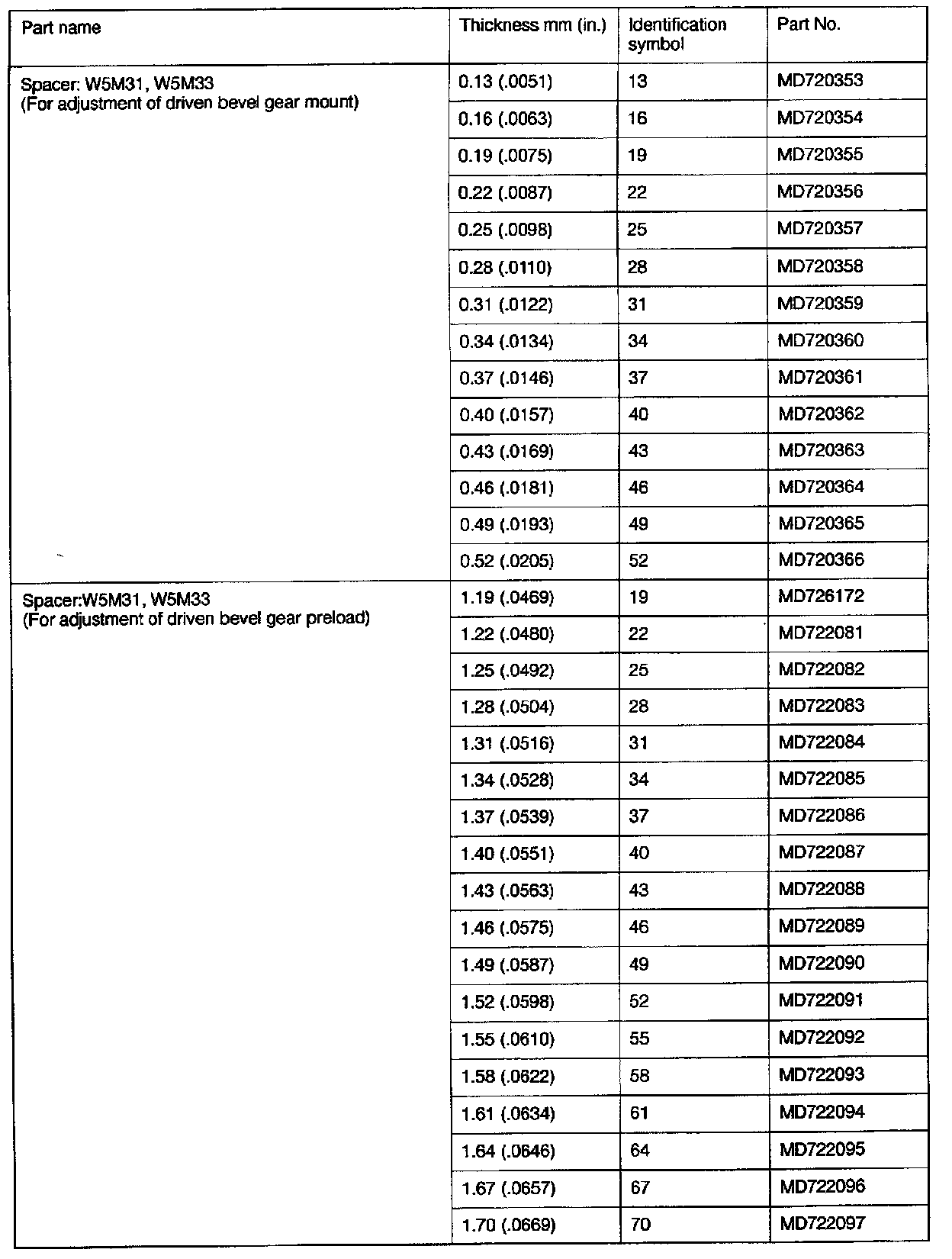

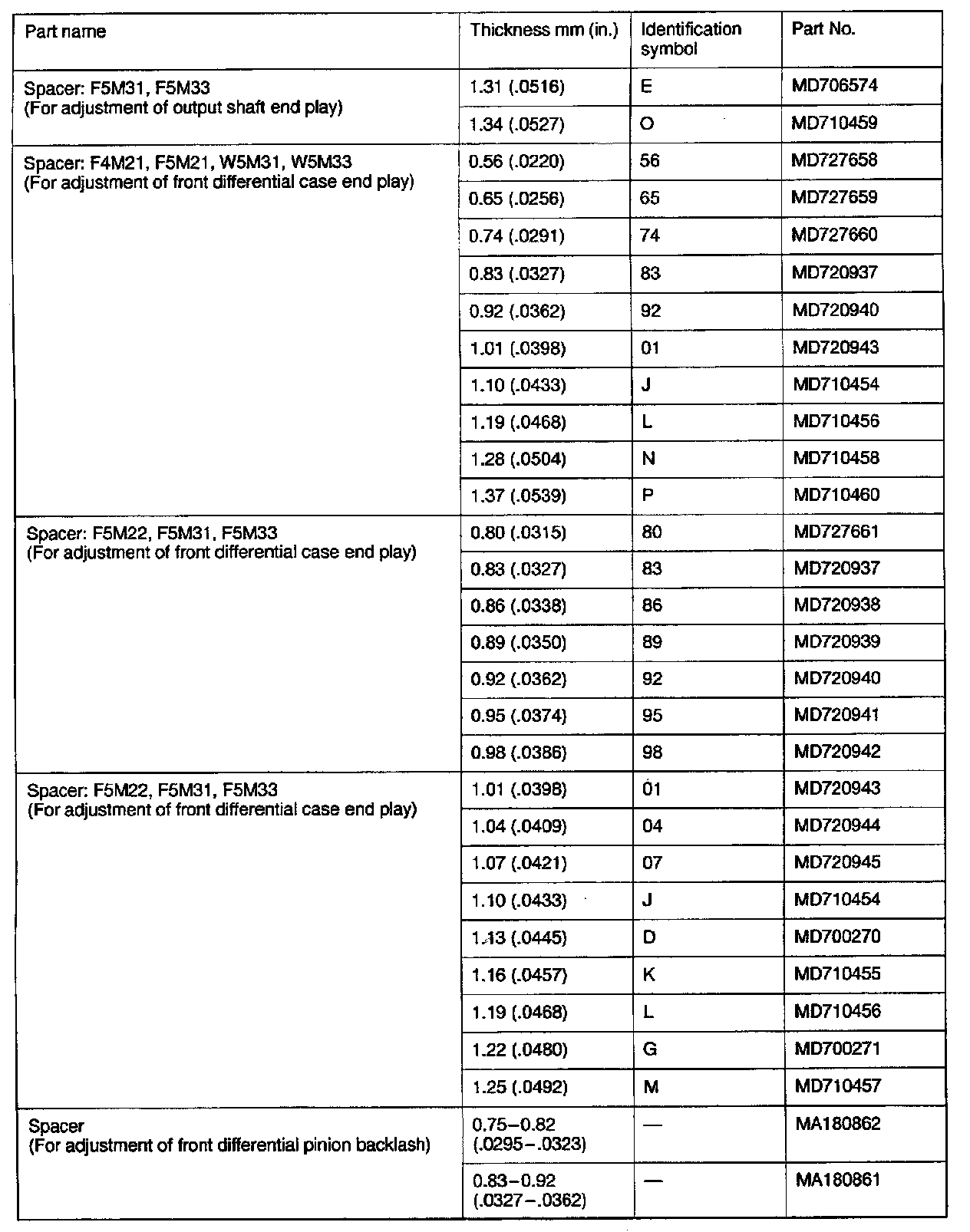

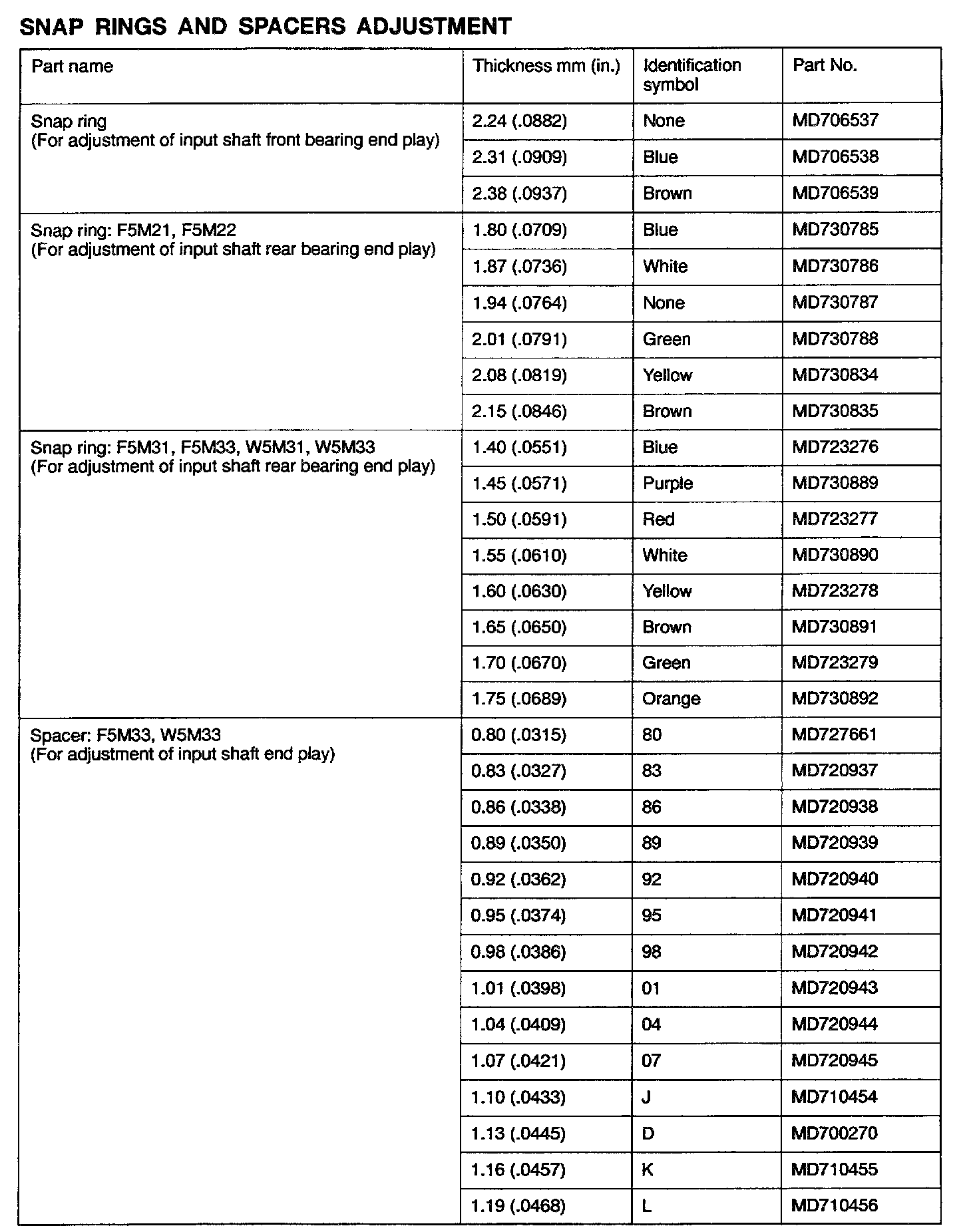

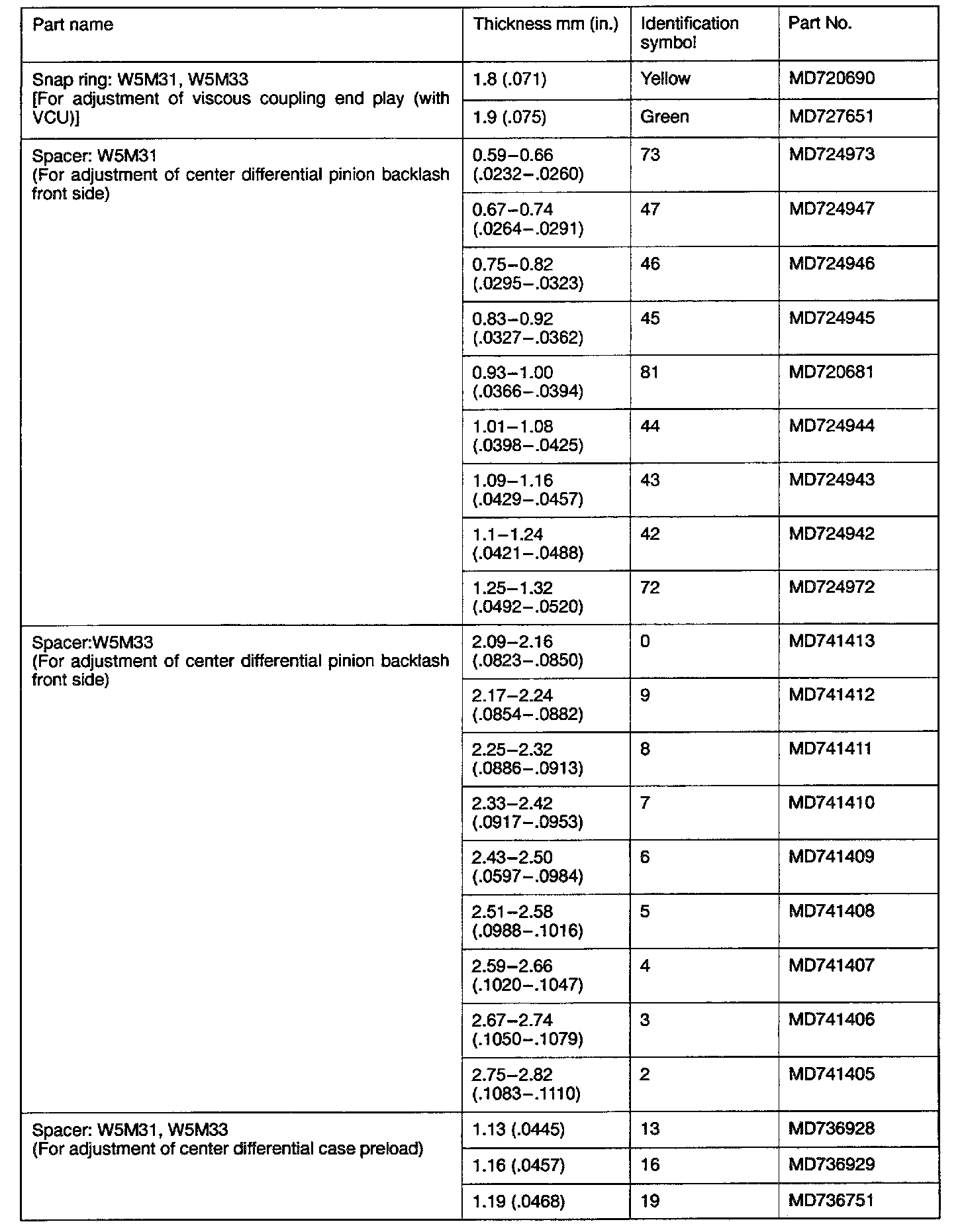

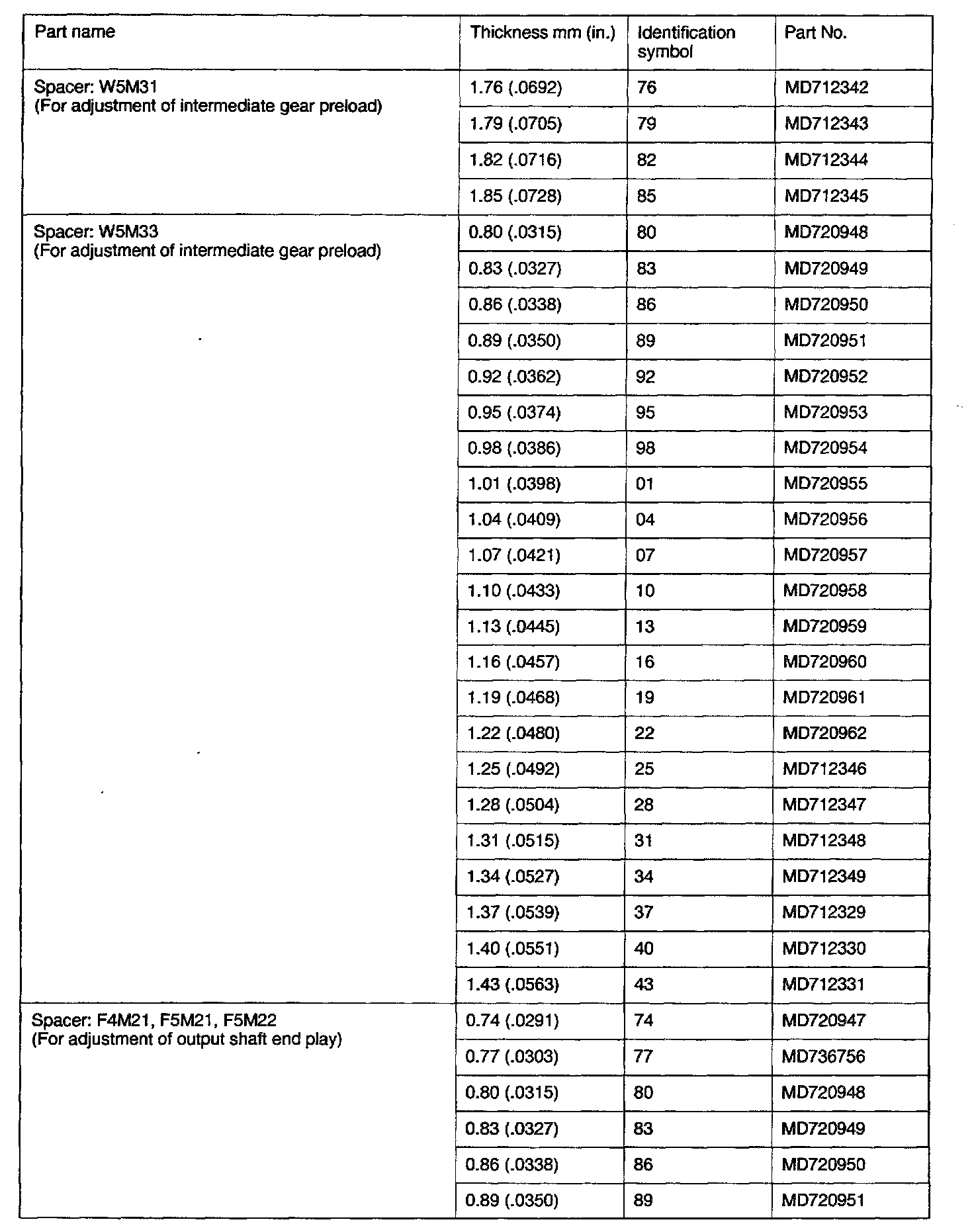

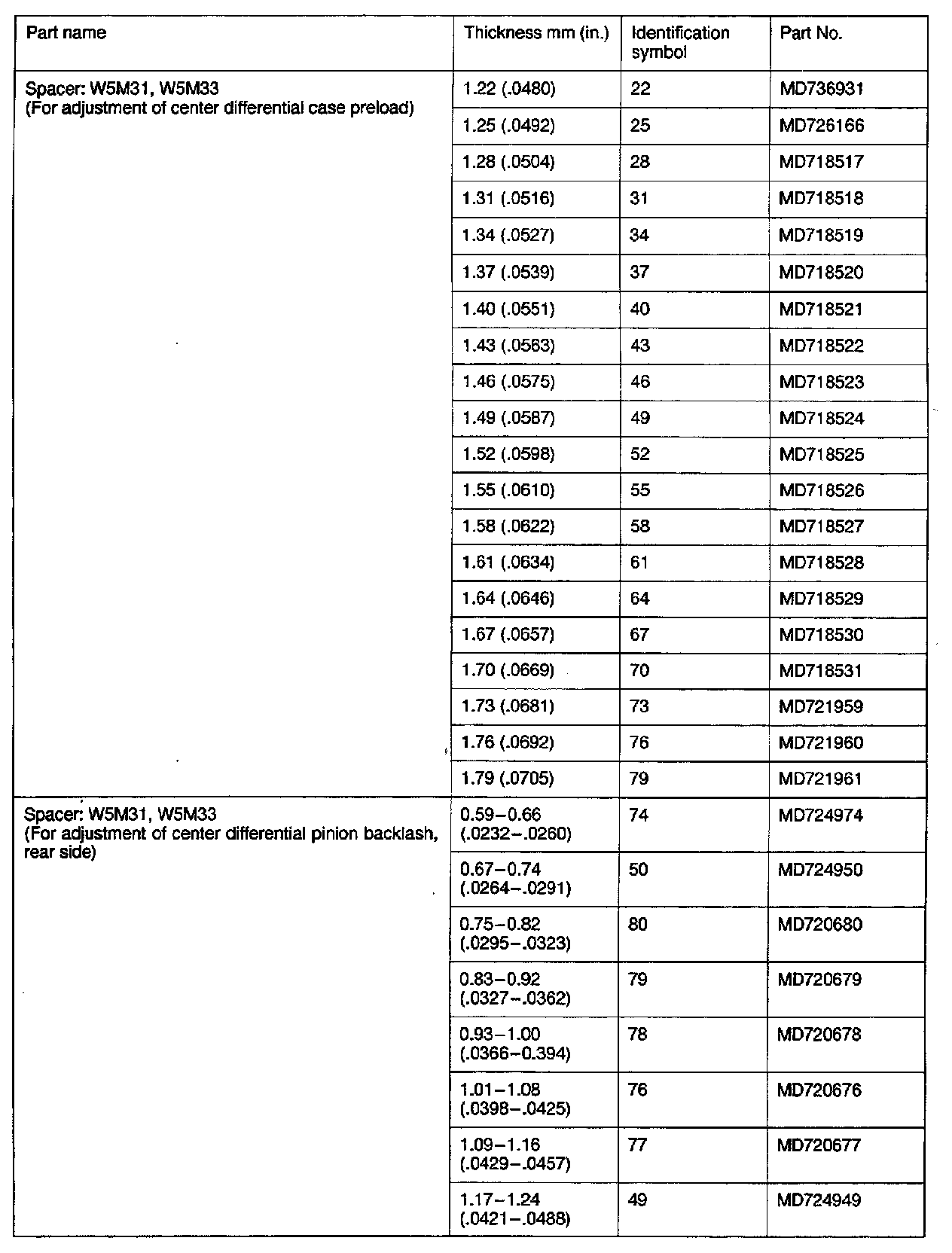

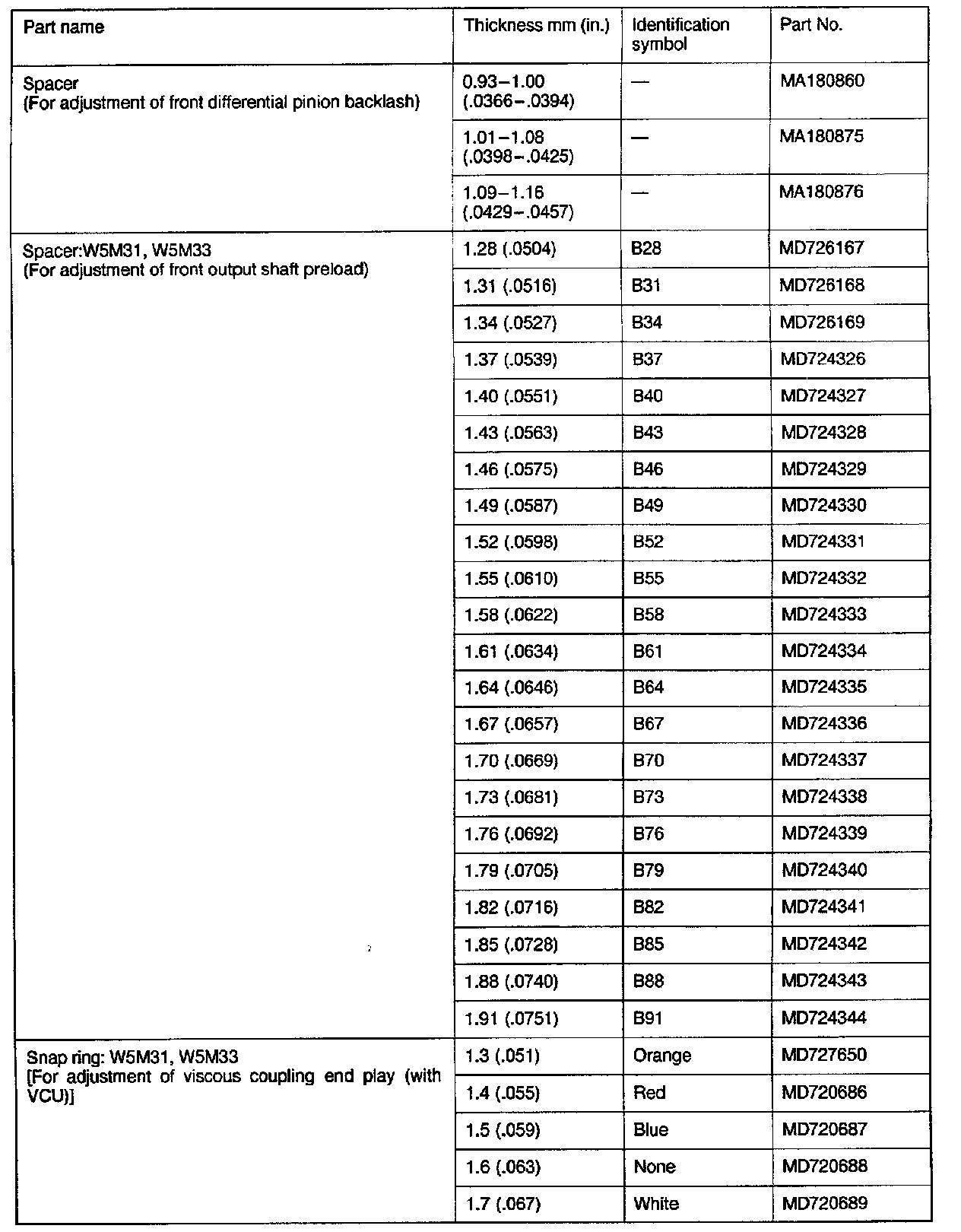

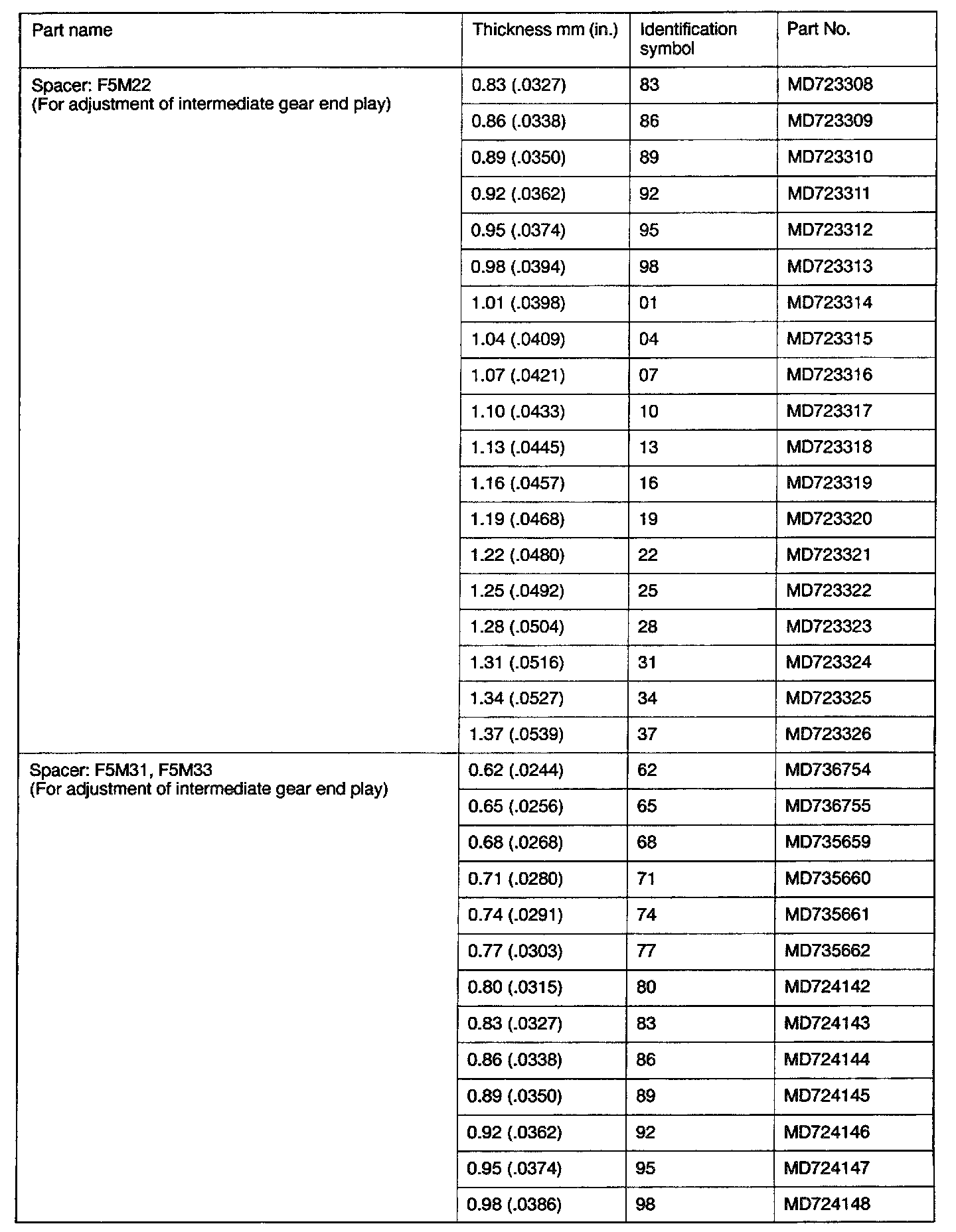

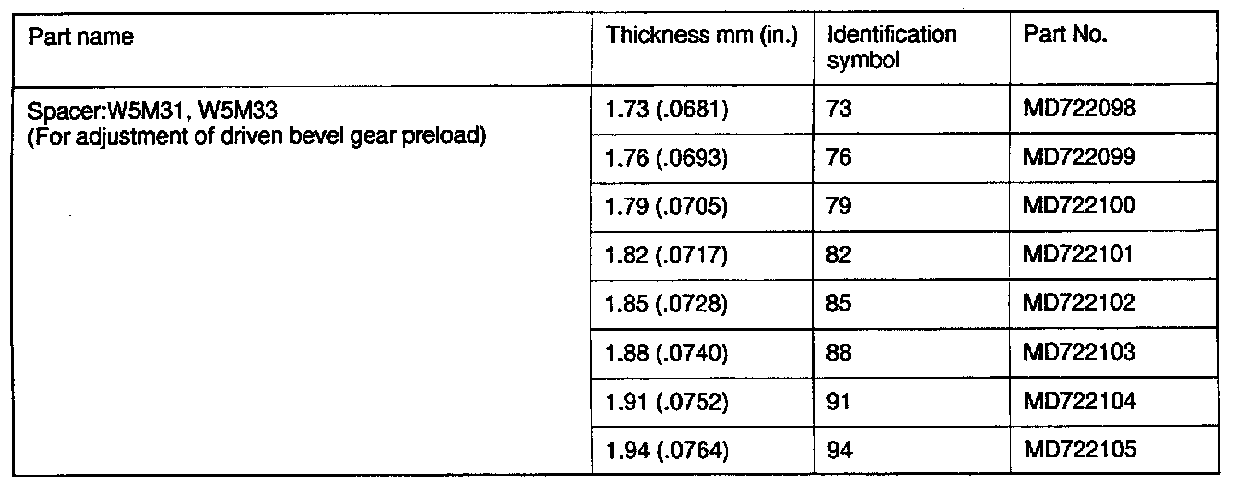

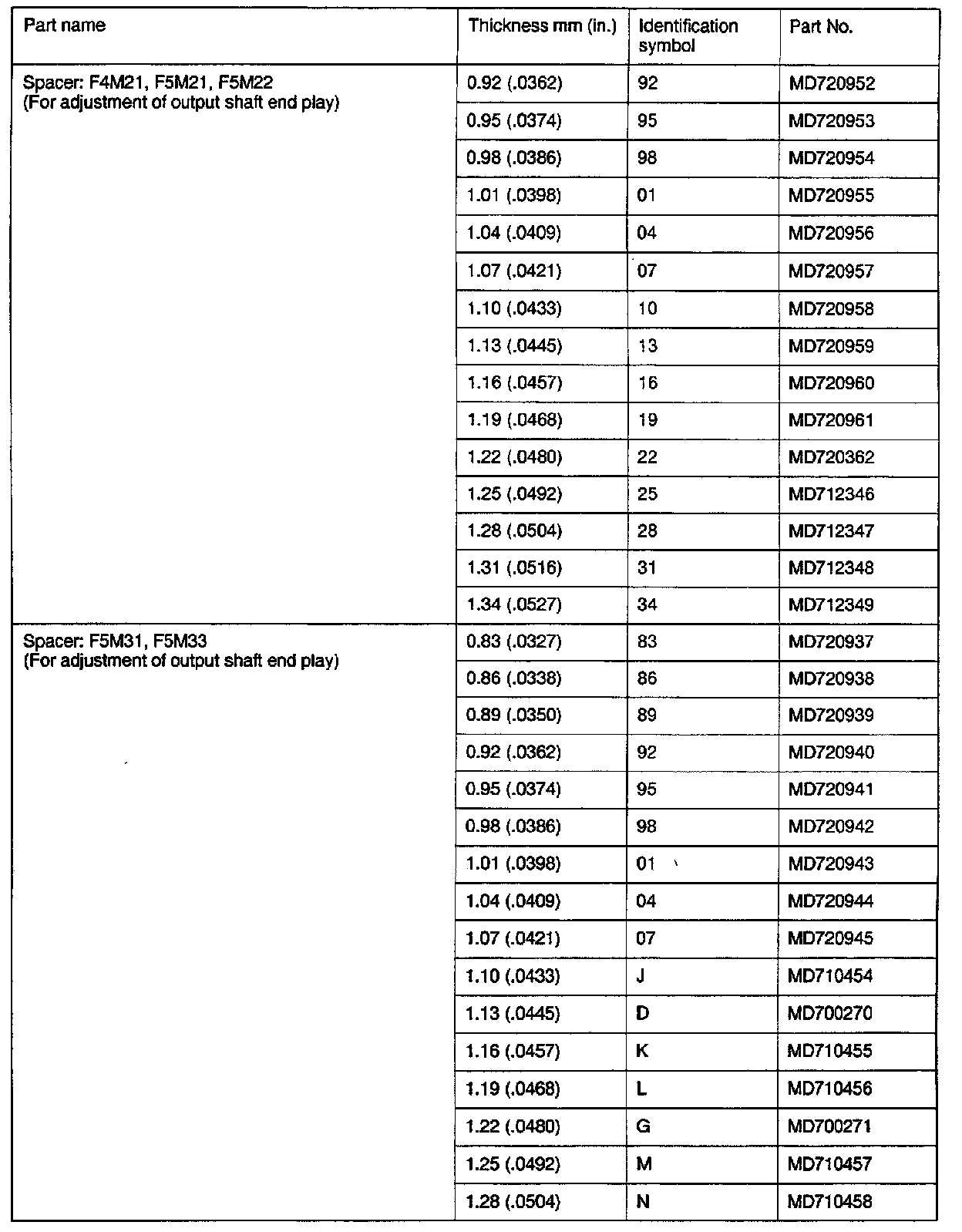

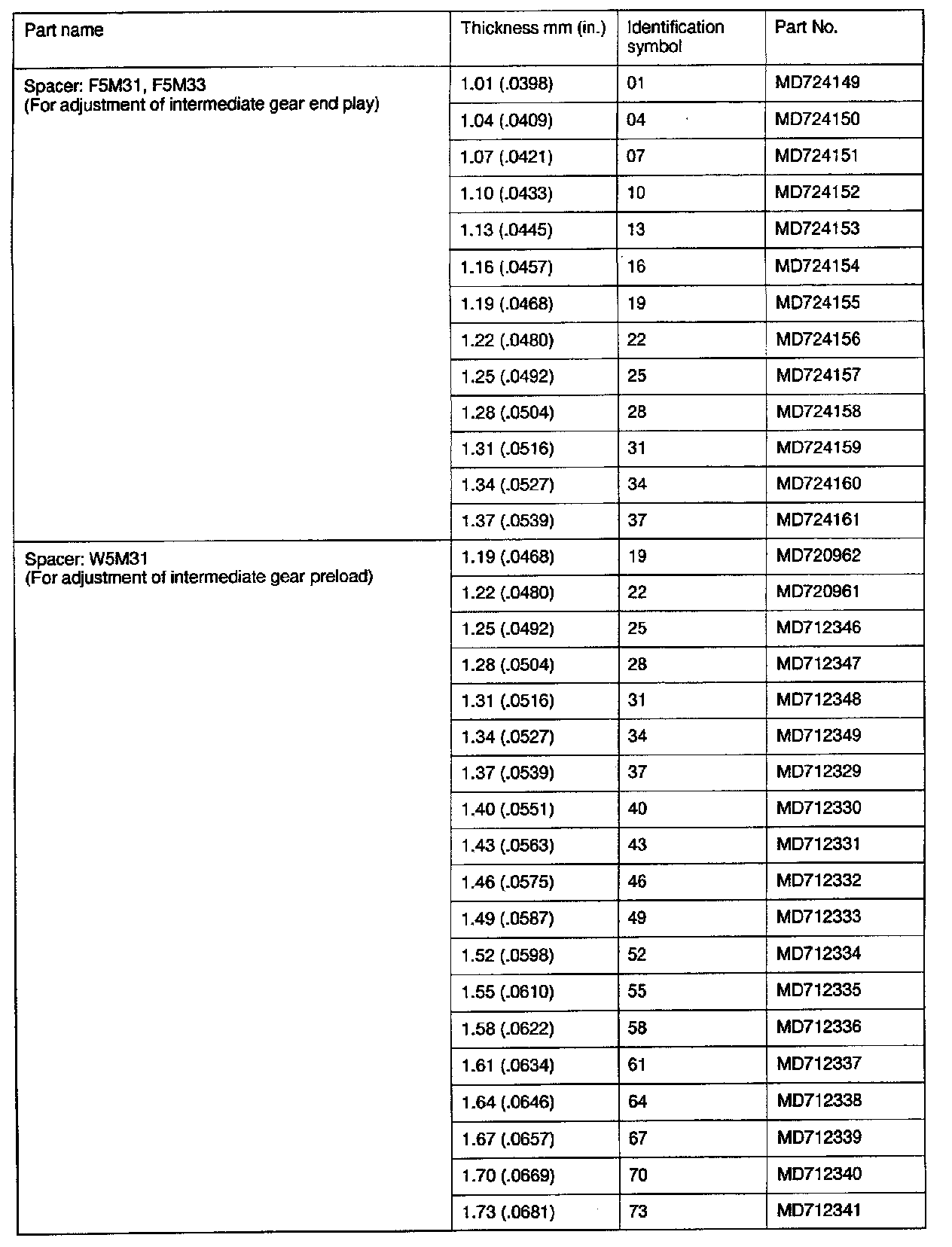

Snap Rings, Spacers and Thrust Plate For Adjustment
Snap Rings, Spacers and Thrust Plate For Adjustment
