Clutch Slave Cylinder: Service and Repair

DISASSEMBLY SERVICE POINT

A. PISTON AND PISTON CAP REMOVAL

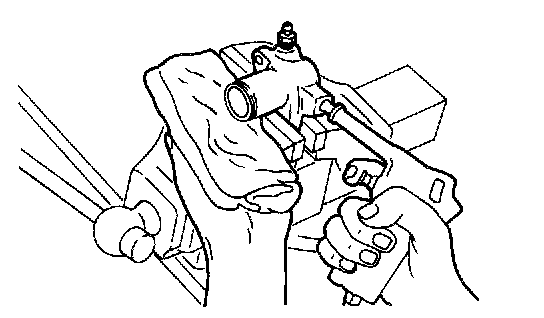

Remove the piston from the release cylinder using compressed air.

CAUTION:
(1) Cover with shop towel to prevent the piston from popping out.
(2) Apply compressed air slowly to prevent brake fluid from splashing.

INSPECTION
- Check the inner surface of the release cylinder for scratches or irregular wear.





- Replace if the piston cup outer circumference is scratched or shows signs of fatigue, or if there is excessive wear of the lip where indicated in the figure.
