Clutch Damper: Service and Repair

DISASSEMBLY AND REASSEMBLY

INSPECTION

CLUTCH DAMPER

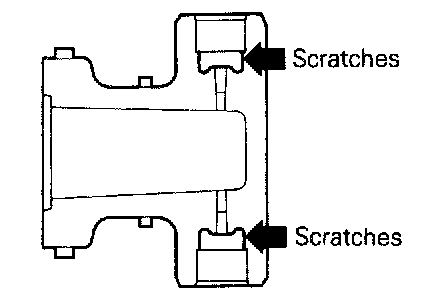

- Check that there are no scratches on the parts indicated in the illustration.
- Clean completely the inside of the clutch damper and confirm that there is no foreign material left.

CLUTCH DAMPER BRACKET

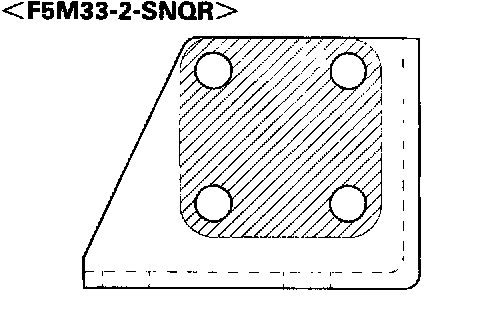

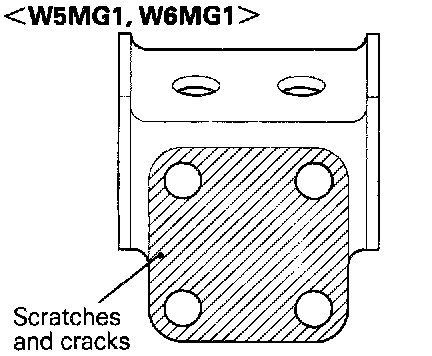

- Check that there are no scratches or cracks on the part indicated in the drawing.

INSTALLATION SERVICE POINT
A. O-RING INSTALLATION

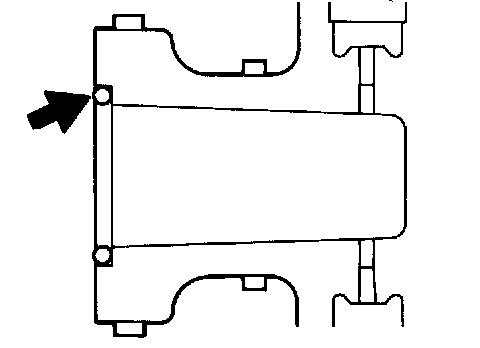

Apply the specified brake fluid onto the 0-ring, and securely install it onto the position of the clutch damper indicated in the illustration.

Specified brake fluid: SAE J1703 (DOT3)
