Strut Service

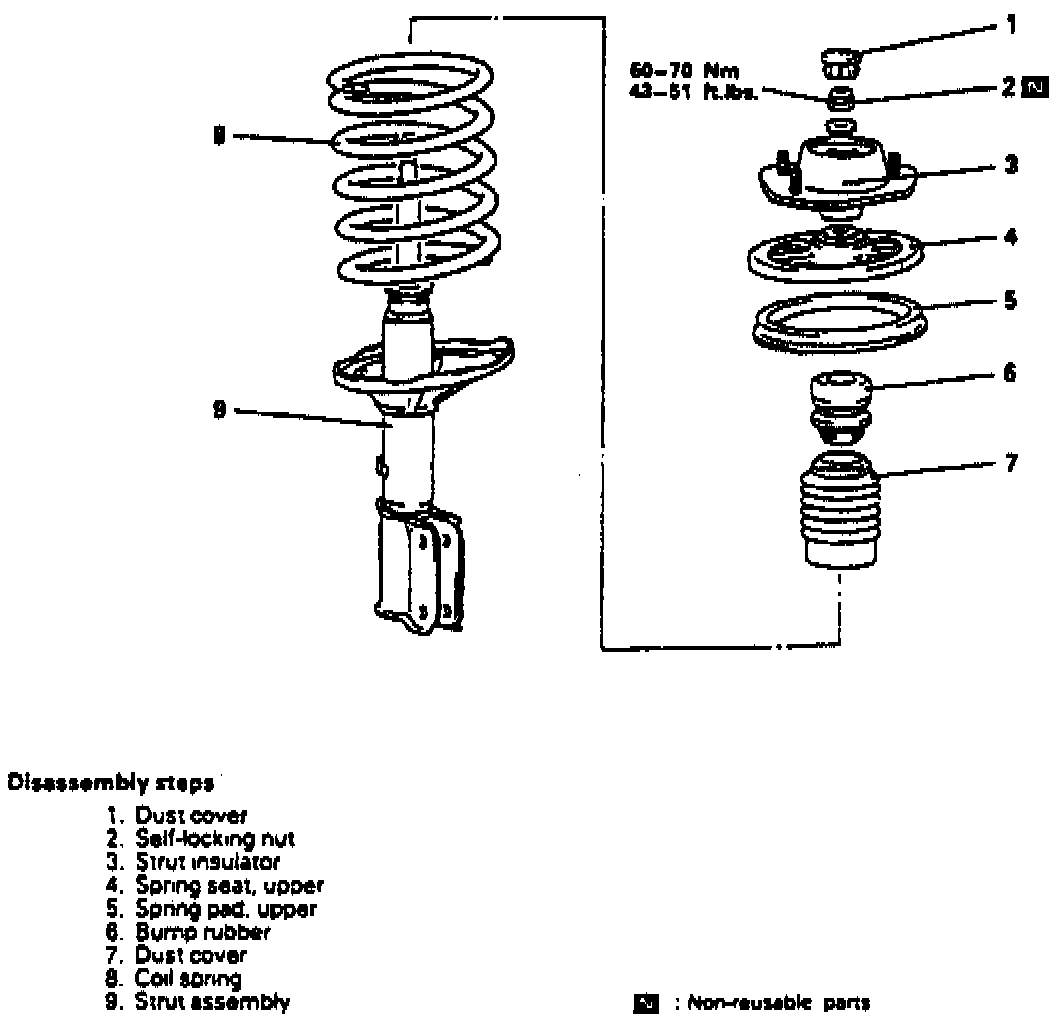

Fig. 19 Strut Disassemble:

Disassemble strut in numbered sequence, Fig. 19, noting the following:

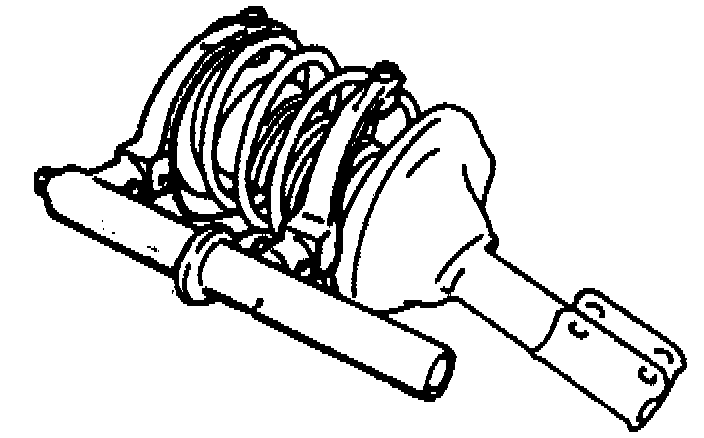

Fig. 20 Spring Compression:

1. Compress coil spring, Fig. 20, then remove locknut.

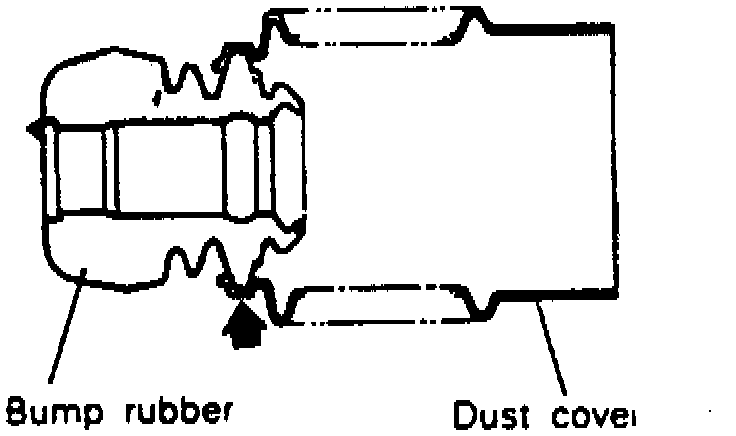

Fig. 21 Dust Cover Installation:

2. Join dust cover and bump rubber, Fig. 21.
3. Line up holes in spring upper and lower seats.
