Rear Suspension

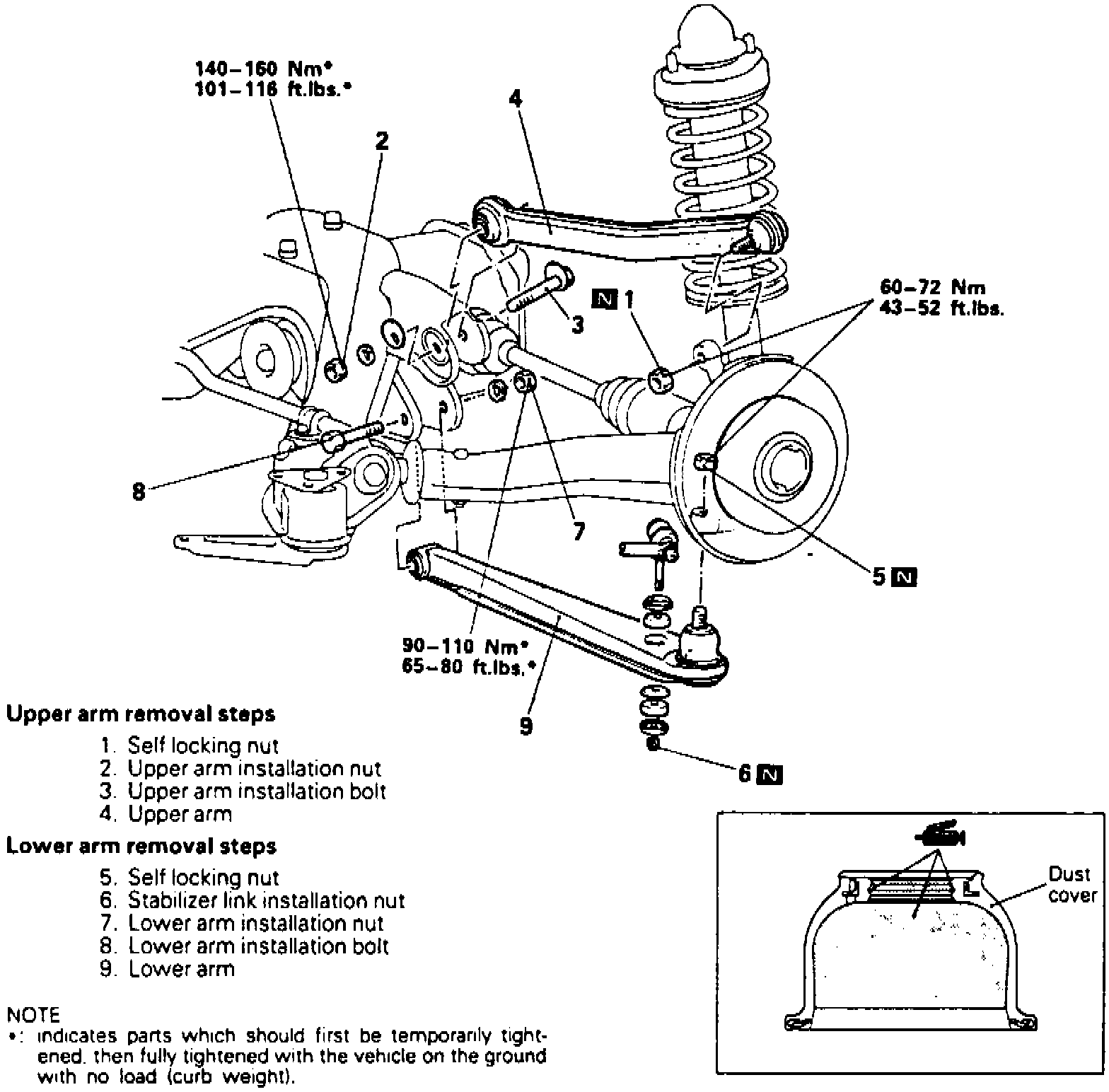

Fig. 25 Upper & Lower Control Arm Replacement:

Remove upper and lower control arms in numbered sequence as shown, Fig. 25, then using ball joint remover tool No. MB991113-01, or equivalent, disconnect upper and lower arm ball joint from knuckle. Loosen, but do not remove ball joint nut.
