Steering Column: Testing and Inspection
Column Switch Inspection:
1.
Remove the knee protector and the lower column cover.
2.

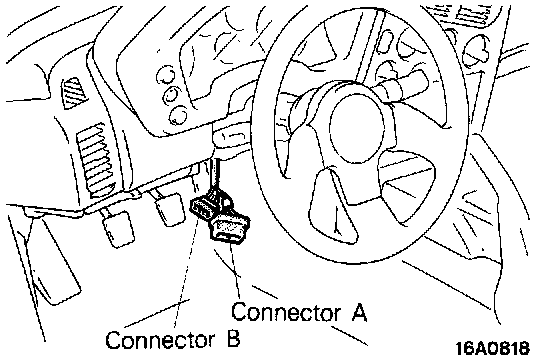

Disconnect the column switch connector and check the continuity between the terminals for each switch.
