Steering Column: Service and Repair

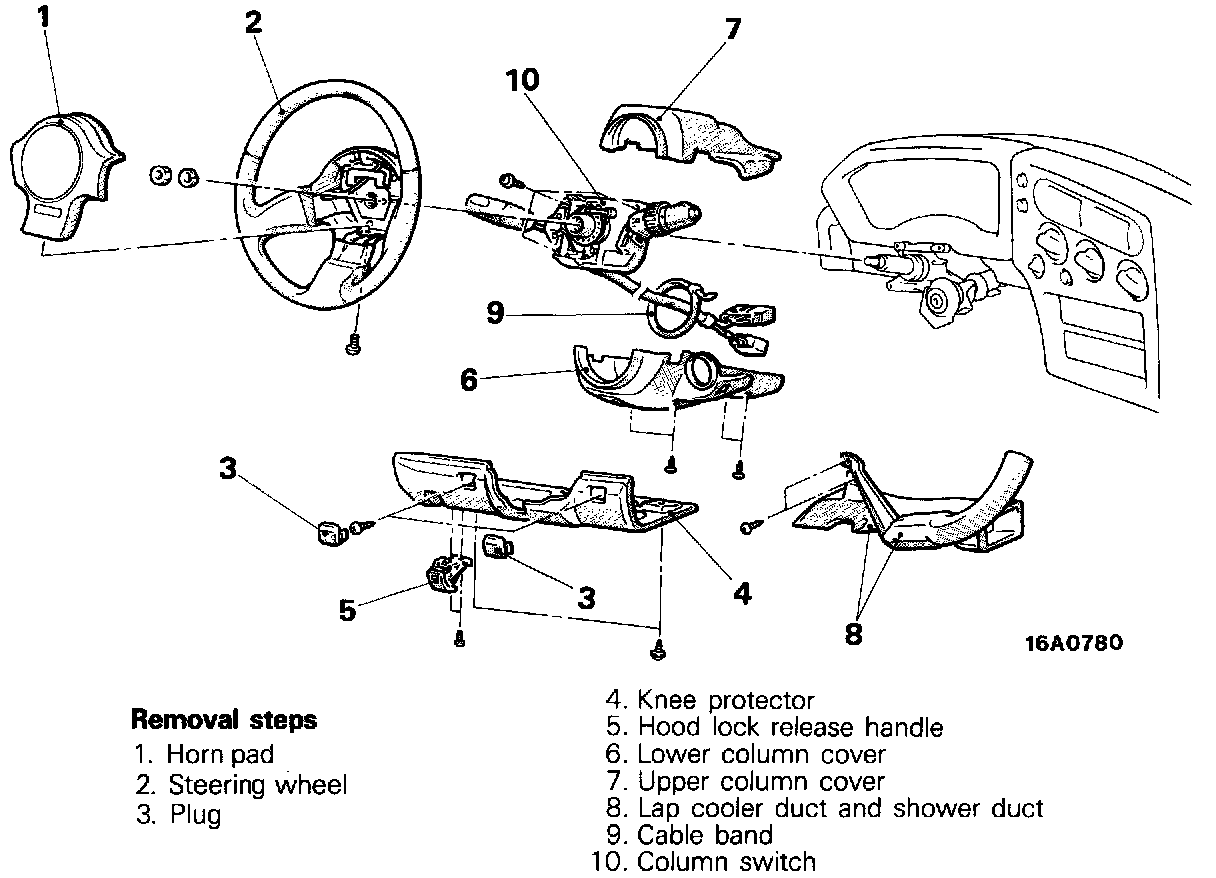

Column Switch - Removal And Installation:

REMOVE
1. Horn pad
2. Steering wheel
3. Plug
4. Knee protector
5. Hood lock release handle
6. Lower column cover
7. Upper column cover
8. Lap cooler duct and shower duct
9. Cable band
10 Column switch

INSTALL
1 Column switch
2. Cable band
3. Lap cooler duct and shower duct
4. Upper column cover
5. Lower column cover
6. Hood lock release handle
7. Knee protector
8. Plug
9. Steering wheel
10. Horn pad
