Testing Field Coils For Grounding

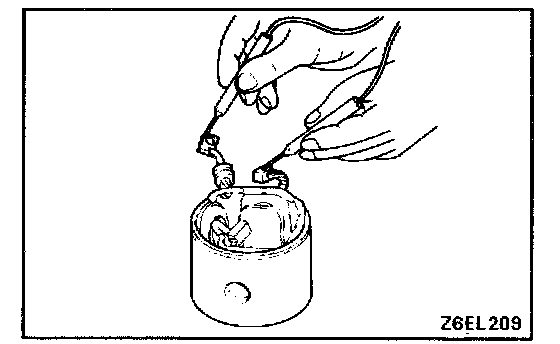

1. Check the continuity between field brushes. If there is continuity, the field coil is in order.

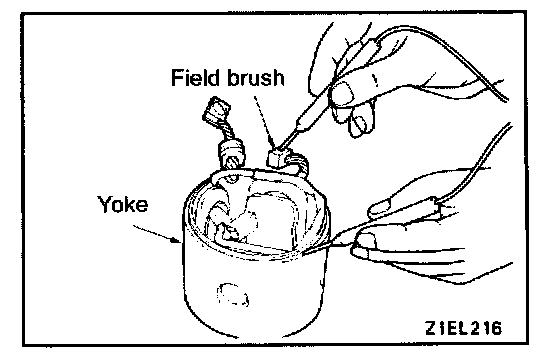

2. Check the continuity between the field coil brush and yoke.If there is no continuity, the field coil is free from grounding.
