Brush Holder: Testing and Inspection

Brush Holder:

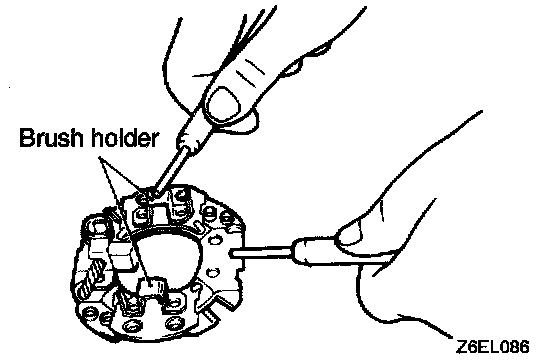

Check the continuity between brush holder plate and brush holder.
If there is no continuity, the brush holder is in order.
