Brush Holder: Service and Repair

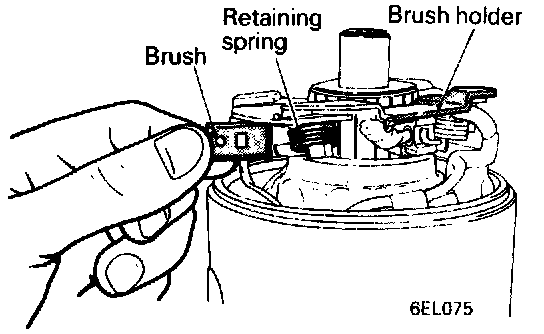

Removal Of Brush Holder Assembly:





Slide the two brushes from brush holder by prying retaining springs back.
