Removal and Replacement

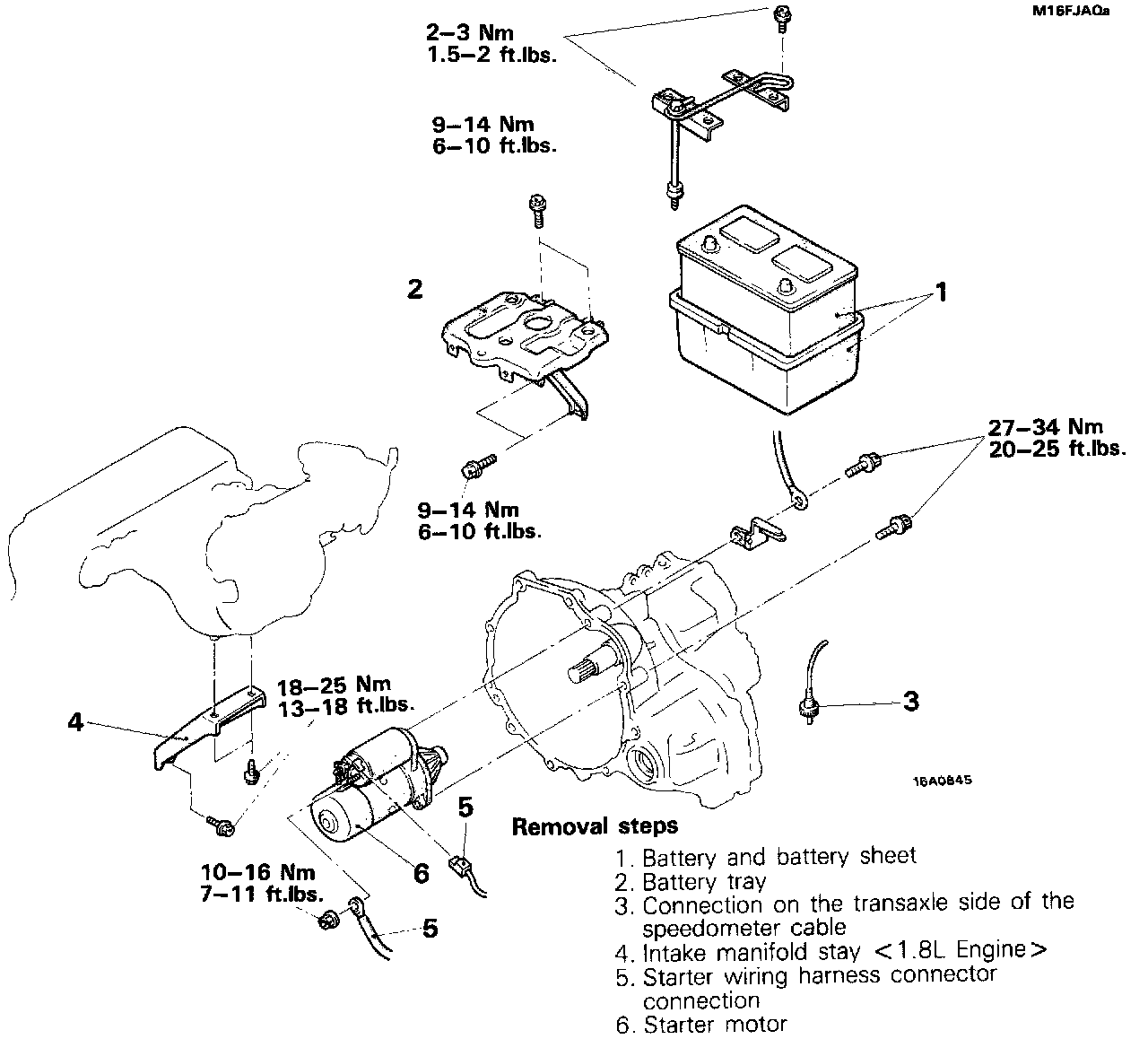

Startor Motor - Removal And Installation:

REMOVE
1. Battery and battery sheet
2. Battery tray
3. Connection on the transaxle side of the speedometer cable
4. Intake manifold stay
5. Starter wiring harness connector connection
6. Starter motor

INSTALL
1. Starter motor
2. Starter wiring harness connector connection
3. Intake manifold stay
4. Connection on the tranaxle side of the speedometer cable
5. Battery tray
6. Battery and battery sheet
