Removal of Snap Ring/18. Stop ring
Snap Ring/Stop Ring Removal:

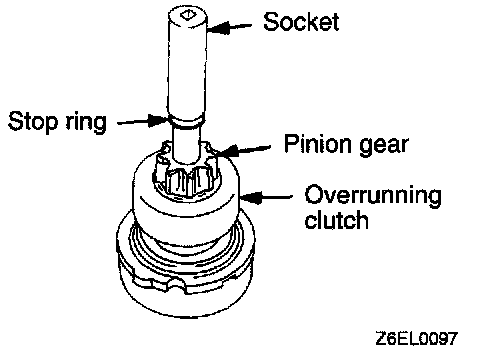

1. Press stop ring off snap ring with a suitable socket.
Snap Ring/Stop Ring Removal:

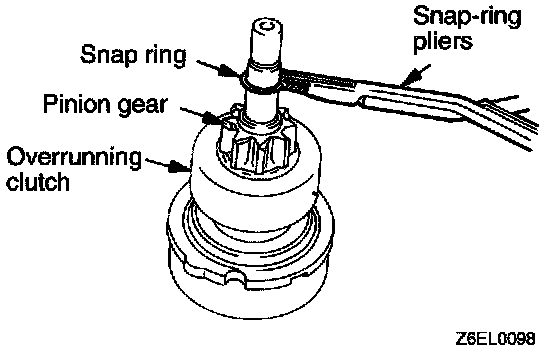

2. Remove snap ring with snap ring pliers and then remove stop ring and overrunning clutch.
1. Press stop ring off snap ring with a suitable socket.
2. Remove snap ring with snap ring pliers and then remove stop ring and overrunning clutch.
