Installation of Slide Lever/Key Interlock Cable

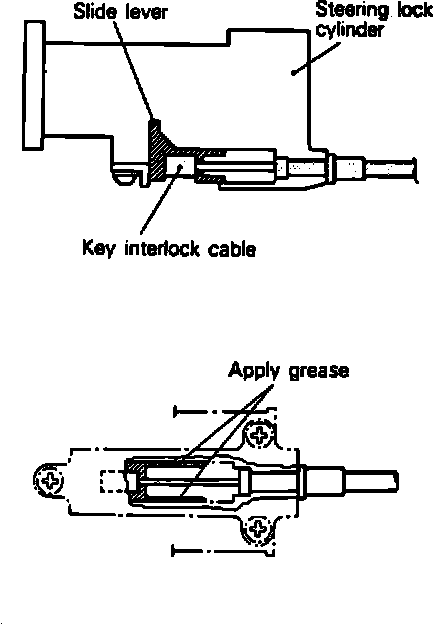

Fig. 8 Installing Slide Lever:

1. With the ignition key either at the "LOCK" position or removed, install the slide lever to the steering lock cylinder.
2. Connect, as shown in the figure, the key interlock cable to the slide lever and the steering lock cylinder.
3. Apply a light coating of multi-purpose grease where shown in the figure.
4. Check whether or not the key interlock system is functioning normally.
