Stator: Testing and Inspection

Stator:

Stator:

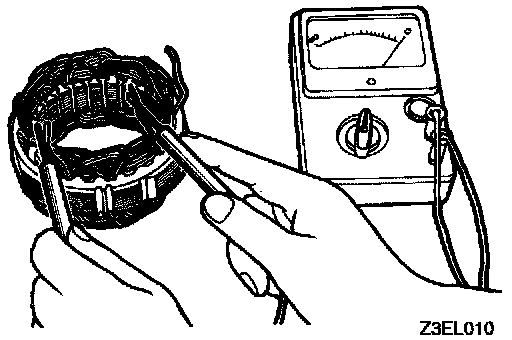

1. Make continuity test on stator coil. Check to ensure that there is continuity between coil leads.
If there is no continuity, replace stator assembly

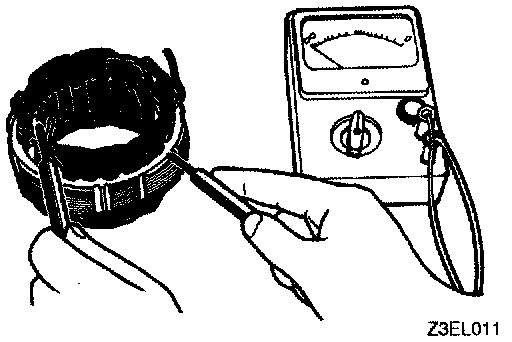

2. Check coil for grounding. Check to ensure that there Is no continuity between coil and core. If there is continuity, replace stator assembly.
