Removal of Stator

Stator/Regulator And Brush Holder Removal:

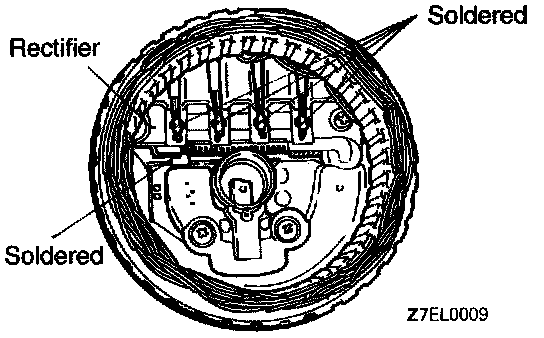

1 When removing stator, unsolder three stator leads soldered to main diodes on rectifier.
2 When removing rectifier from brush holder, unsolder two soldered points to rectifier.

CAUTION: When soldering or unsoldering, use care to make sure that heat of soldering iron is not transmitted to diodes for a long period. Finish soldering or unsoldering in as short a time as possible.

Use care that no undue force is exerted to leads of diodes.
