Disassembly And Reassembly Steps

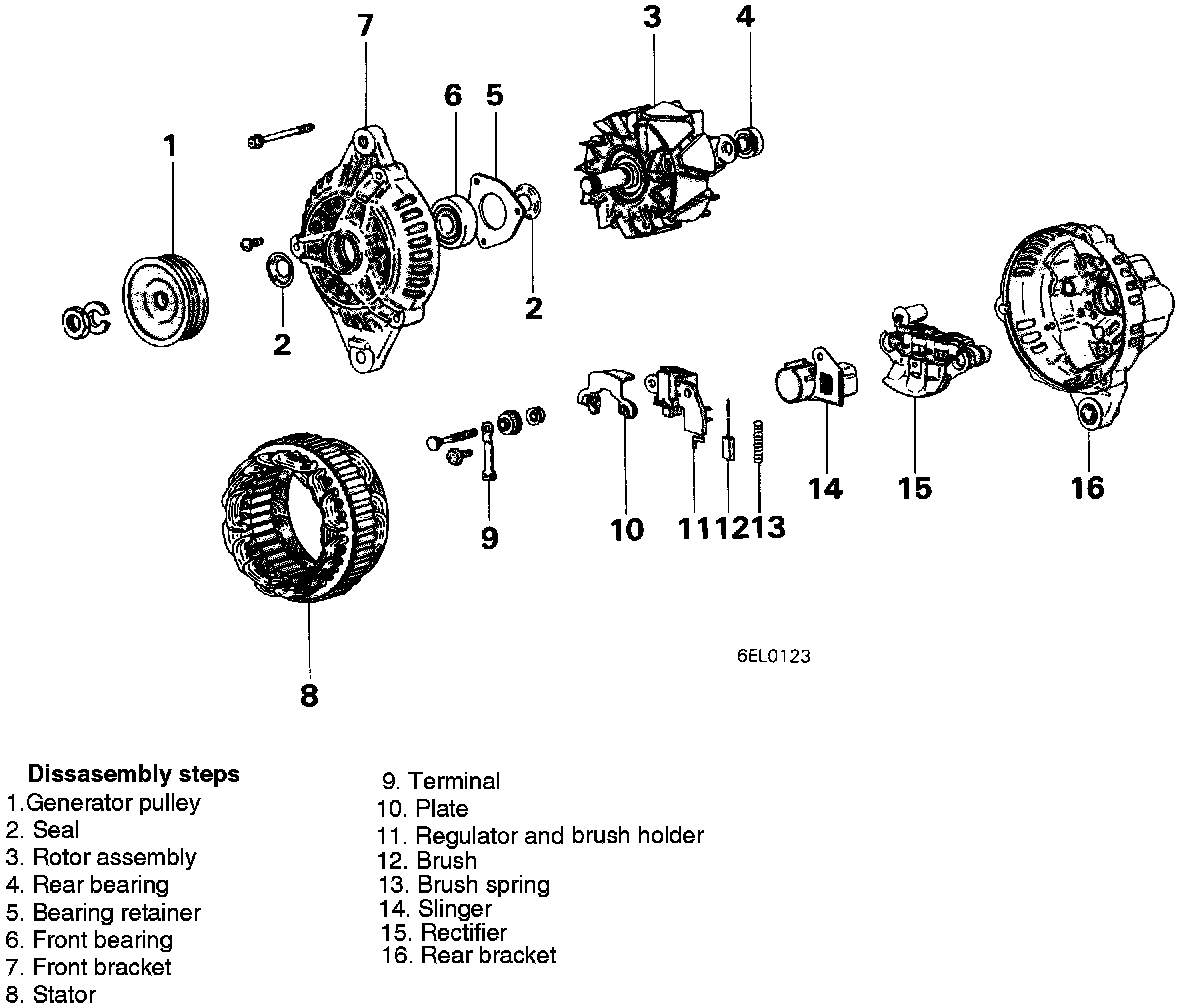

Generator - Disassembly And Reassembly:

REMOVE
1. Alternator Pulley
2. Seal
3. Rotor assembly
4. Rear bearing
5. Bearing retainer
6. Front bearing
7. Front bracket
8. Stator
9. Terminal
10. Plate
11. Regulator and brush holder
12. Brush
13. Brush Spring
14. Slinger
15. Rectifier
16. Rear bracket

INSTALL
1. Rear bracket
2. Rectifier
3. Slinger
4. Brush Spring
5. Brush
6. Regulator and brush holder
7. Plate
8. Terminal
9. Stator
10. Front bracket
11. Front bearing
12. Bearing retainer
13. Rear bearing
14. Rotor assembly
15. Seal
16. Alternator Pulley
