Rotor: Service and Repair

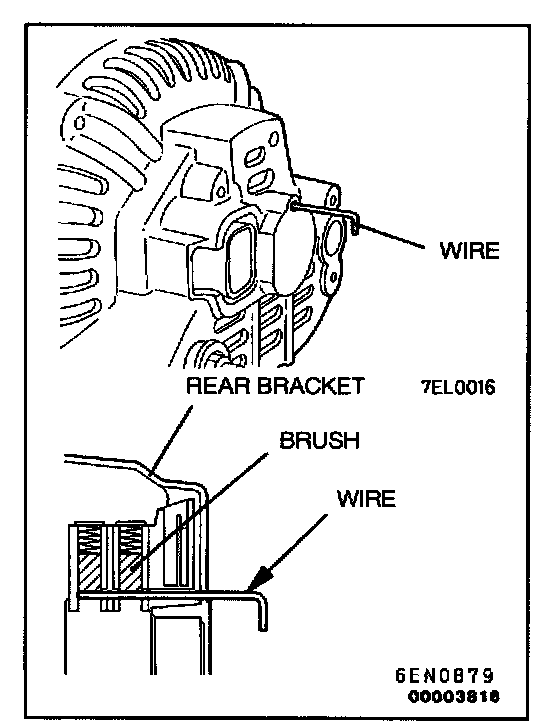

Before
rotor
is attached to rear bracket, insert wire through small hole made in rear bracket to lift brush. After rotor has been installed, remove the wire.
