Load Test

Service Adjustment Procedures:

1. Connect a load tester to the battery.
2. Load the battery at 15 Amps for 15 Seconds to remove surface charge.
3. Load the battery at the recommended discharge rate.
4. Read voltage after 15 Seconds and then remove the load.

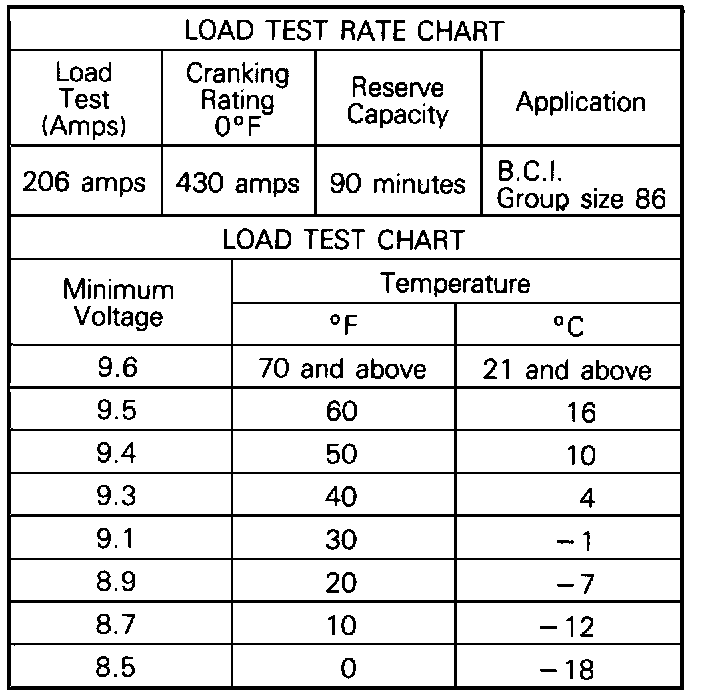

5. If the voltage is not maintained at the minimum voltage in the LOAD TEST CHART throughout the test, the battery should be replaced.
