M/T Technical Data

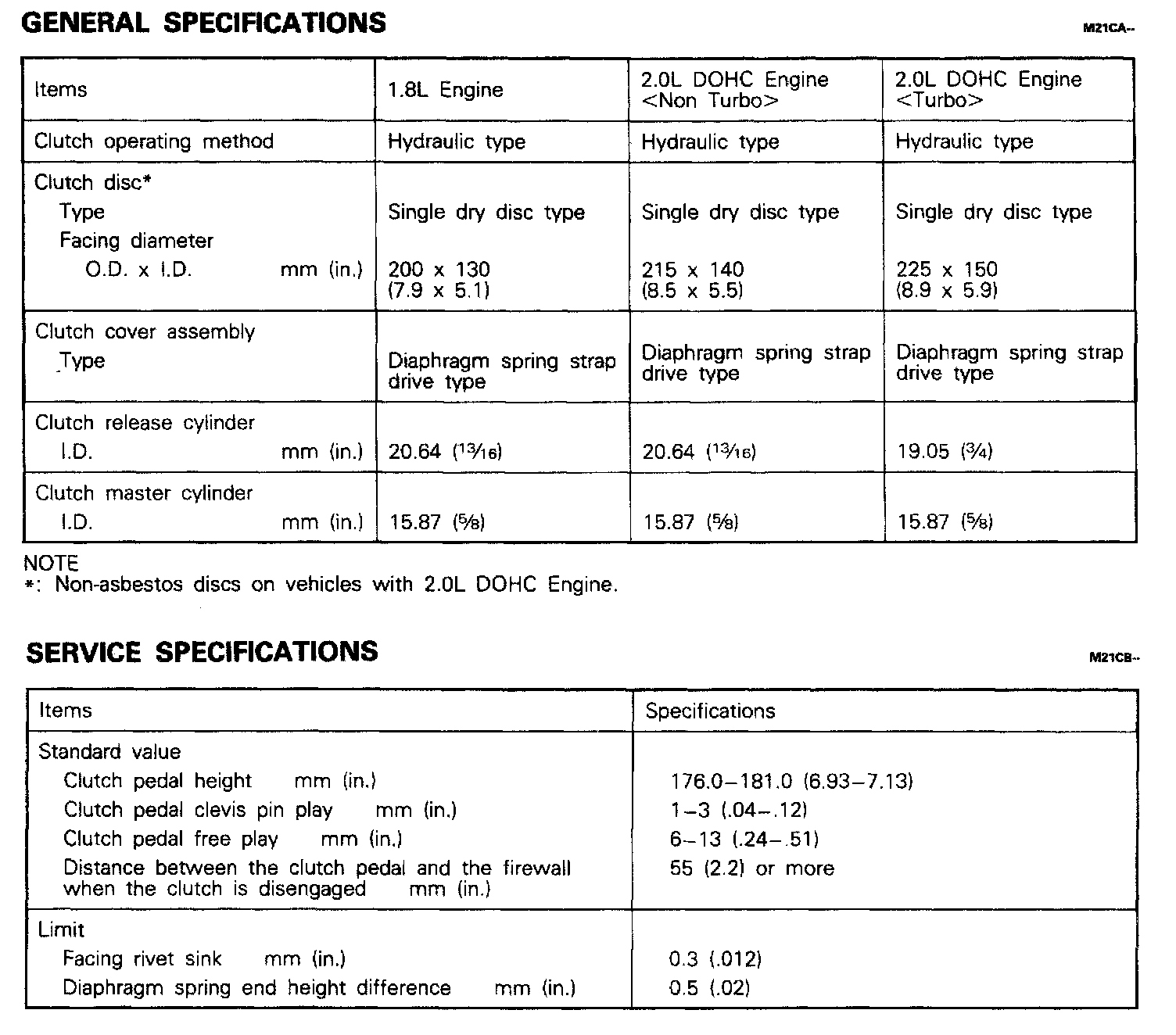

W5M33 5-spd M/T, Clutch Dimensions & Standard Value/Limits:

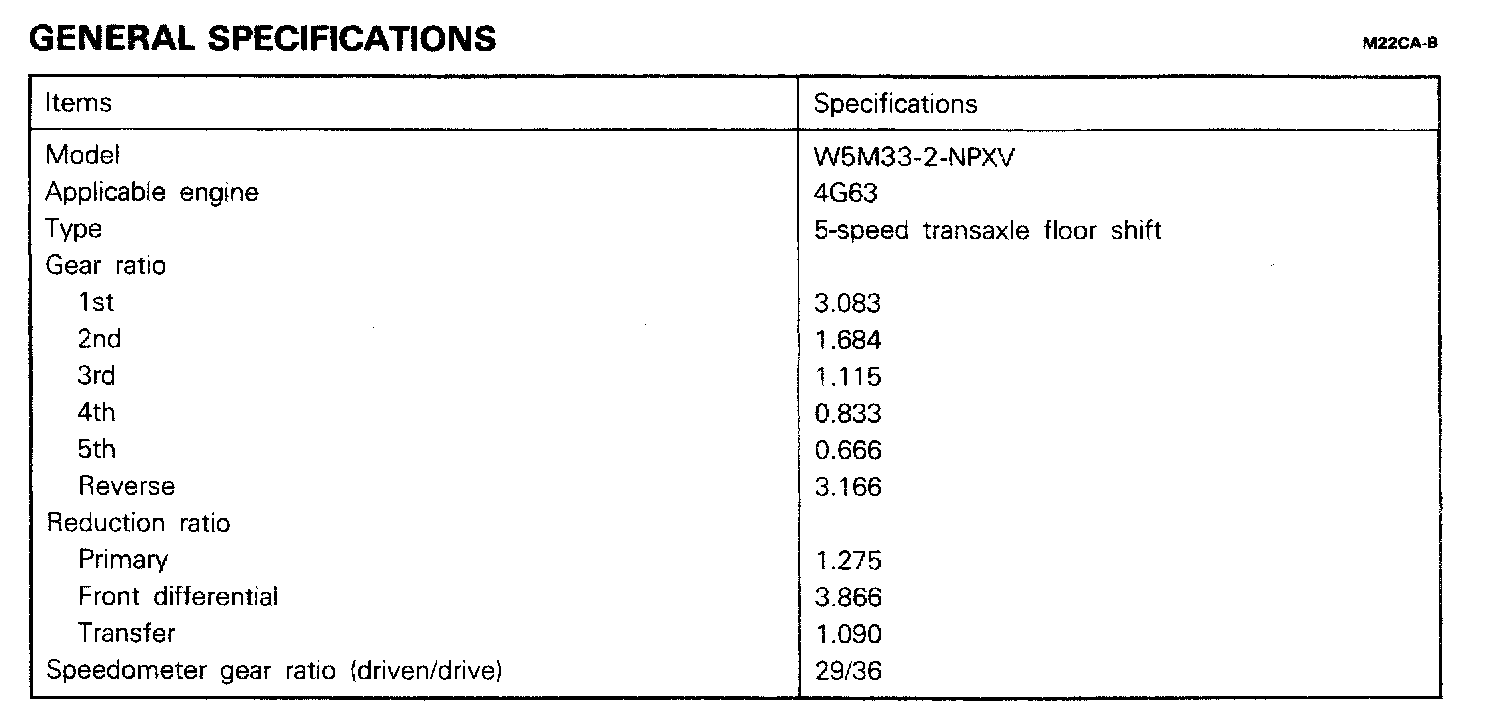

W5M33 5-spd M/T, Gear Ratios:

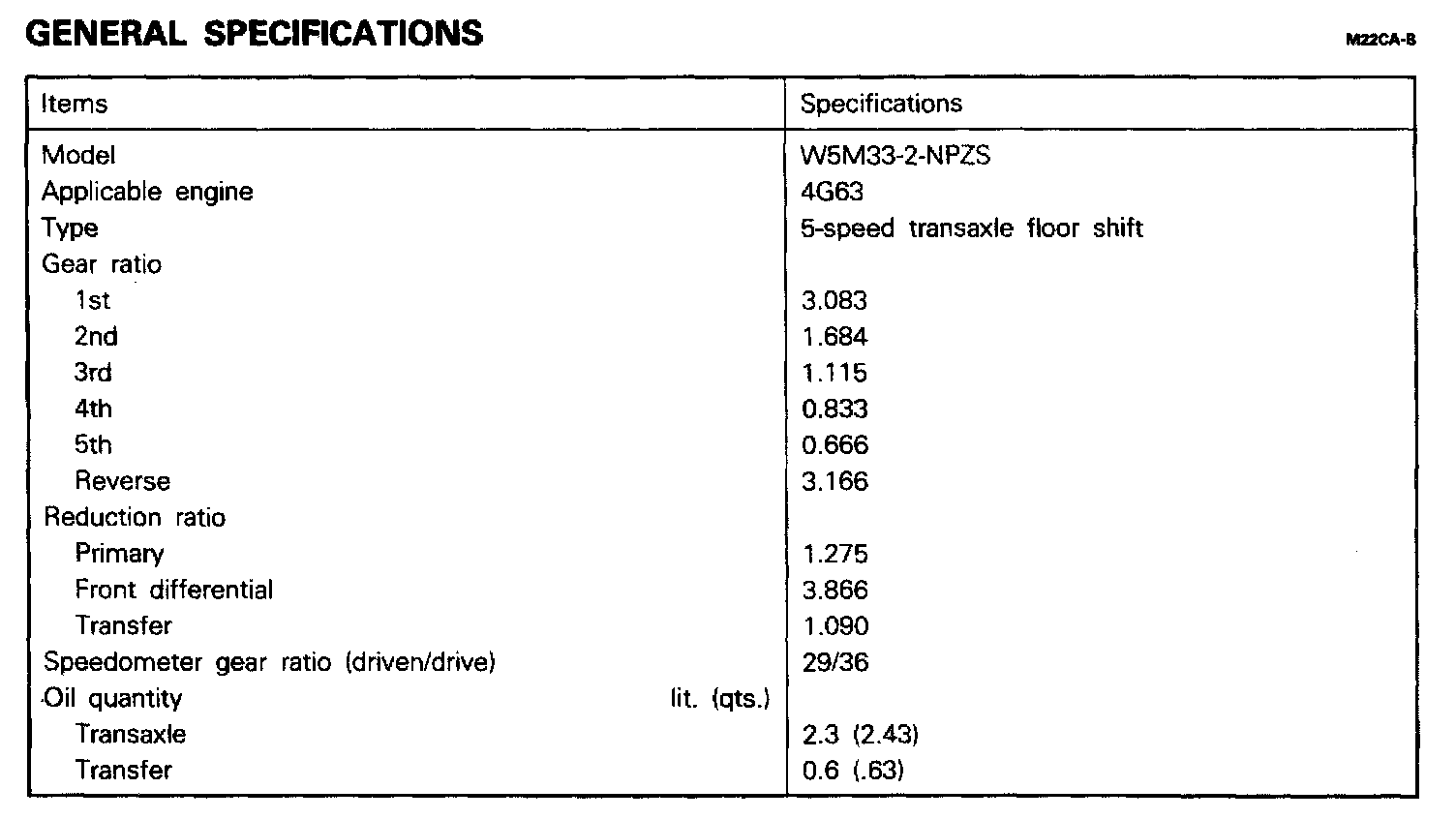

W5M33 5-spd M/T, Gear Ratios:

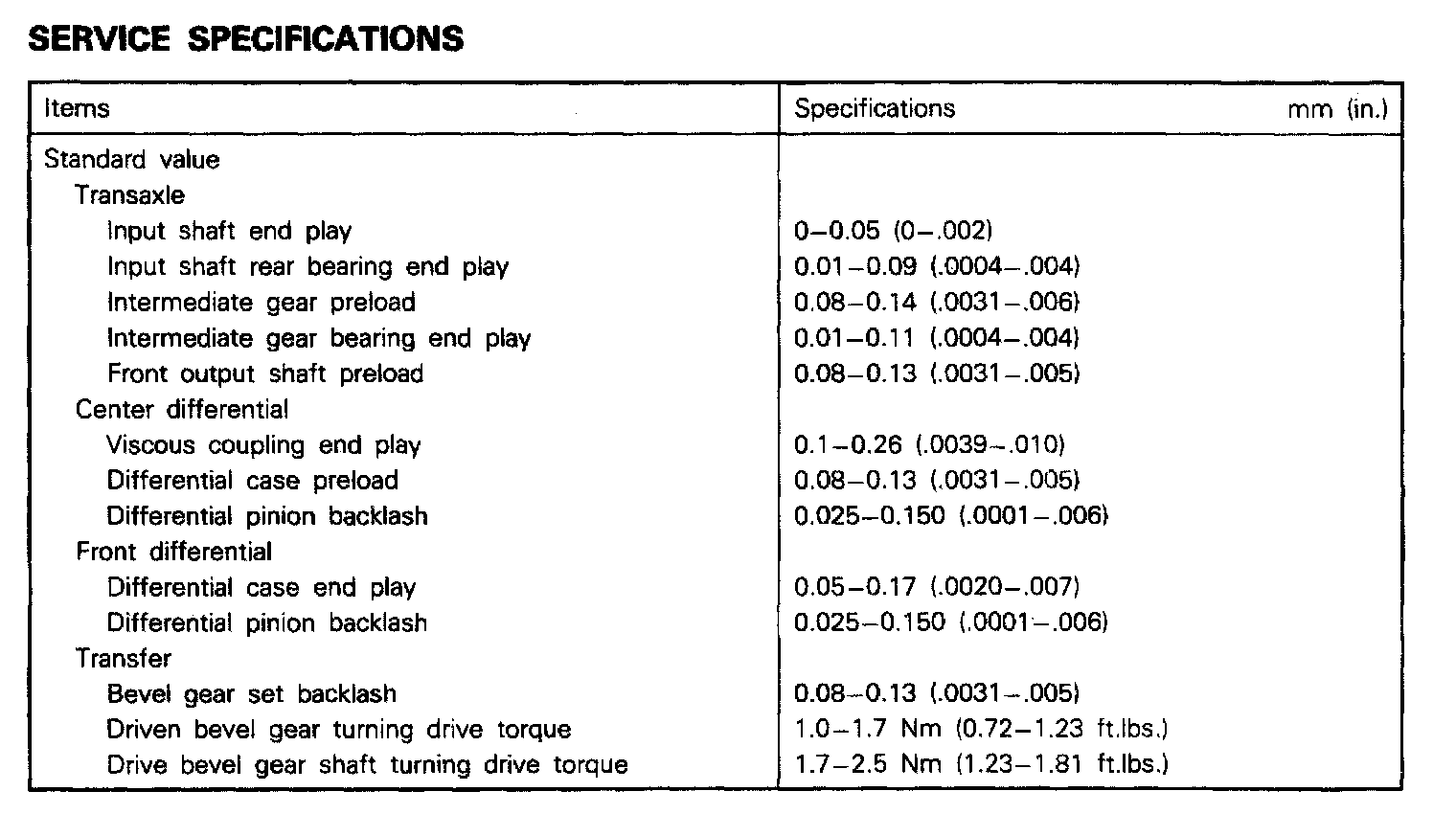

W5M33 5-spd M/T, Standard Values:

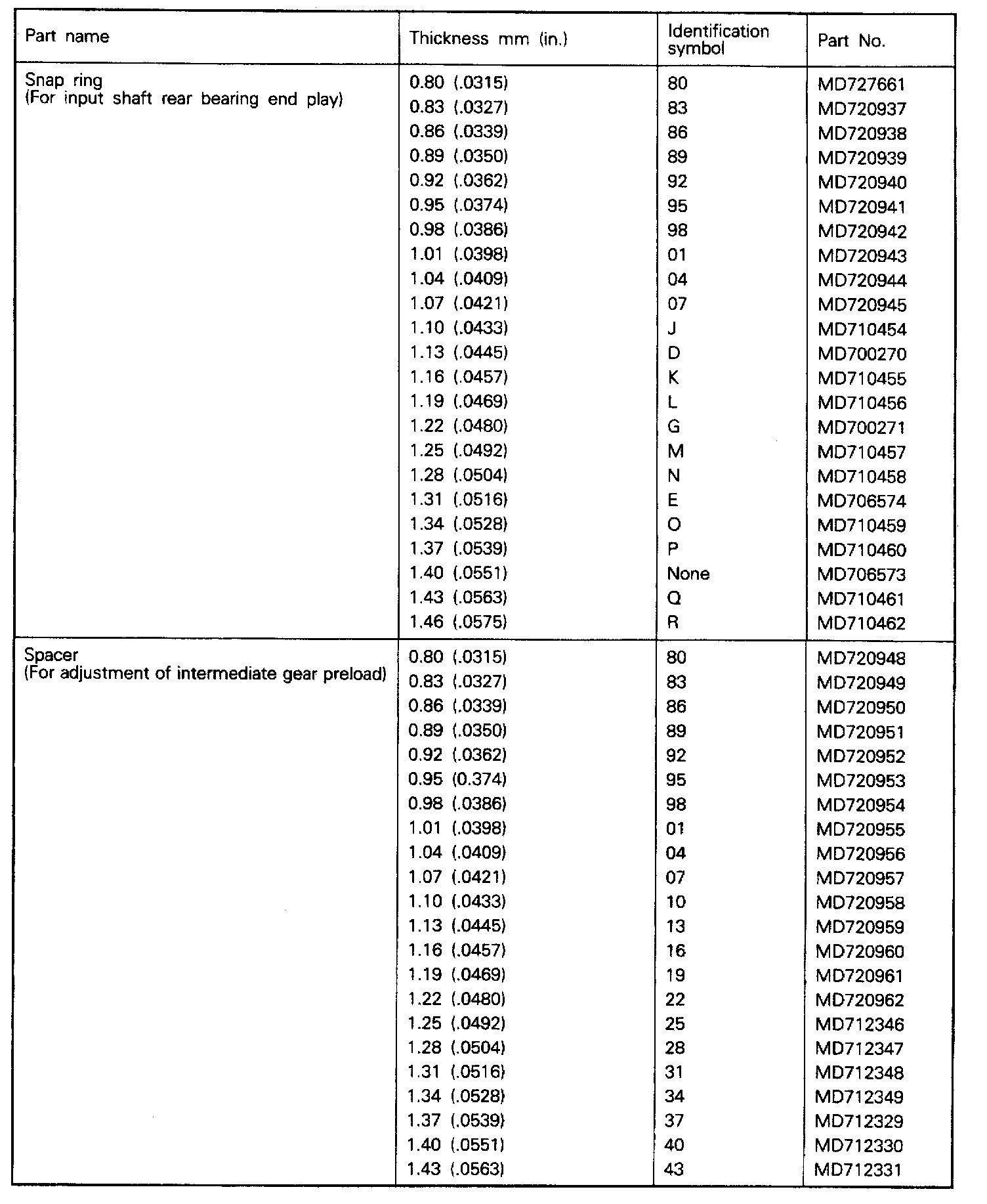

W5M33 5-spd M/T, Input Shaft Bearing End Play & Intermediate Gear Preload:

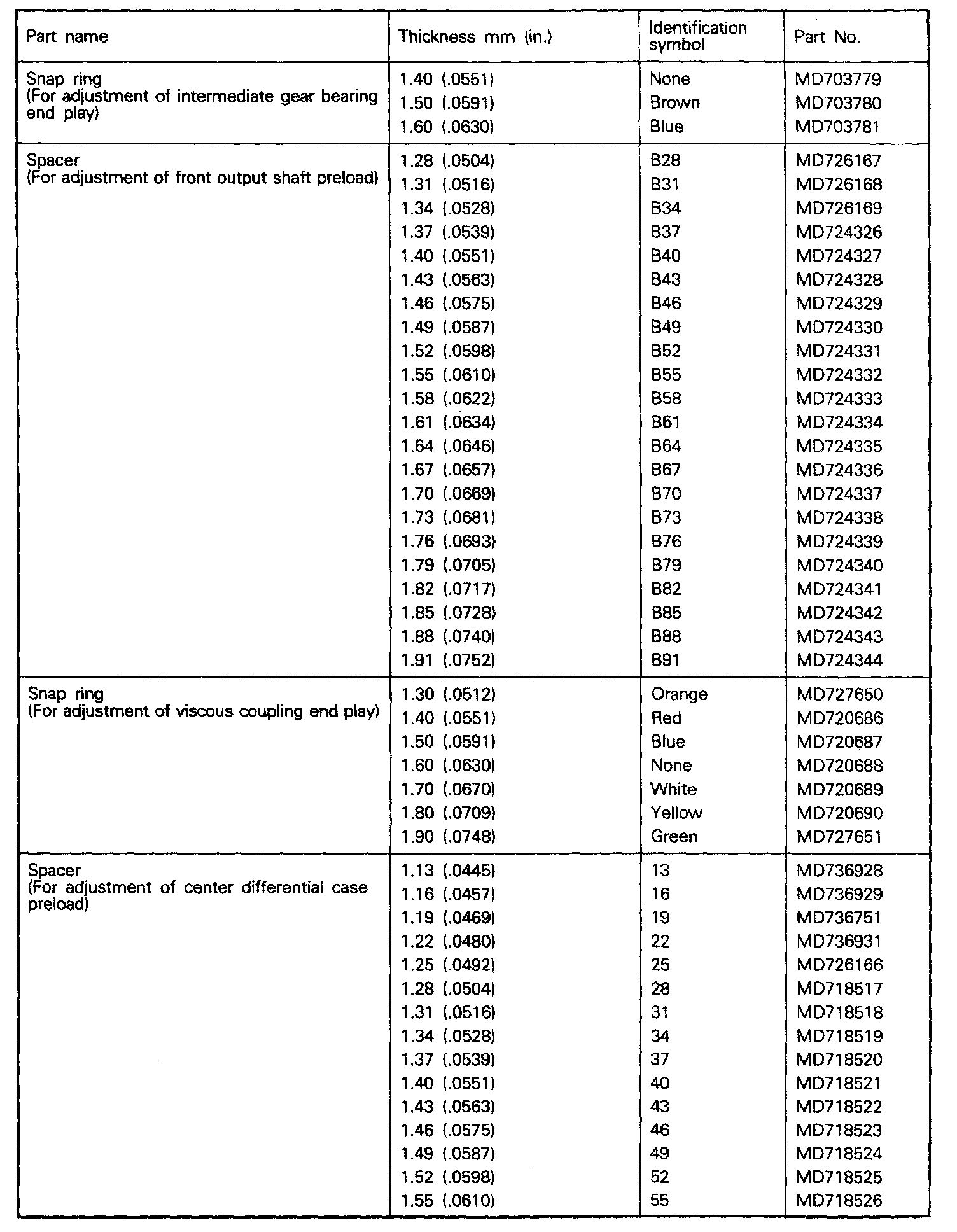

W5M33 5-spd M/T, Intermediate Gear, Output Shaft, Coupling & Differential:

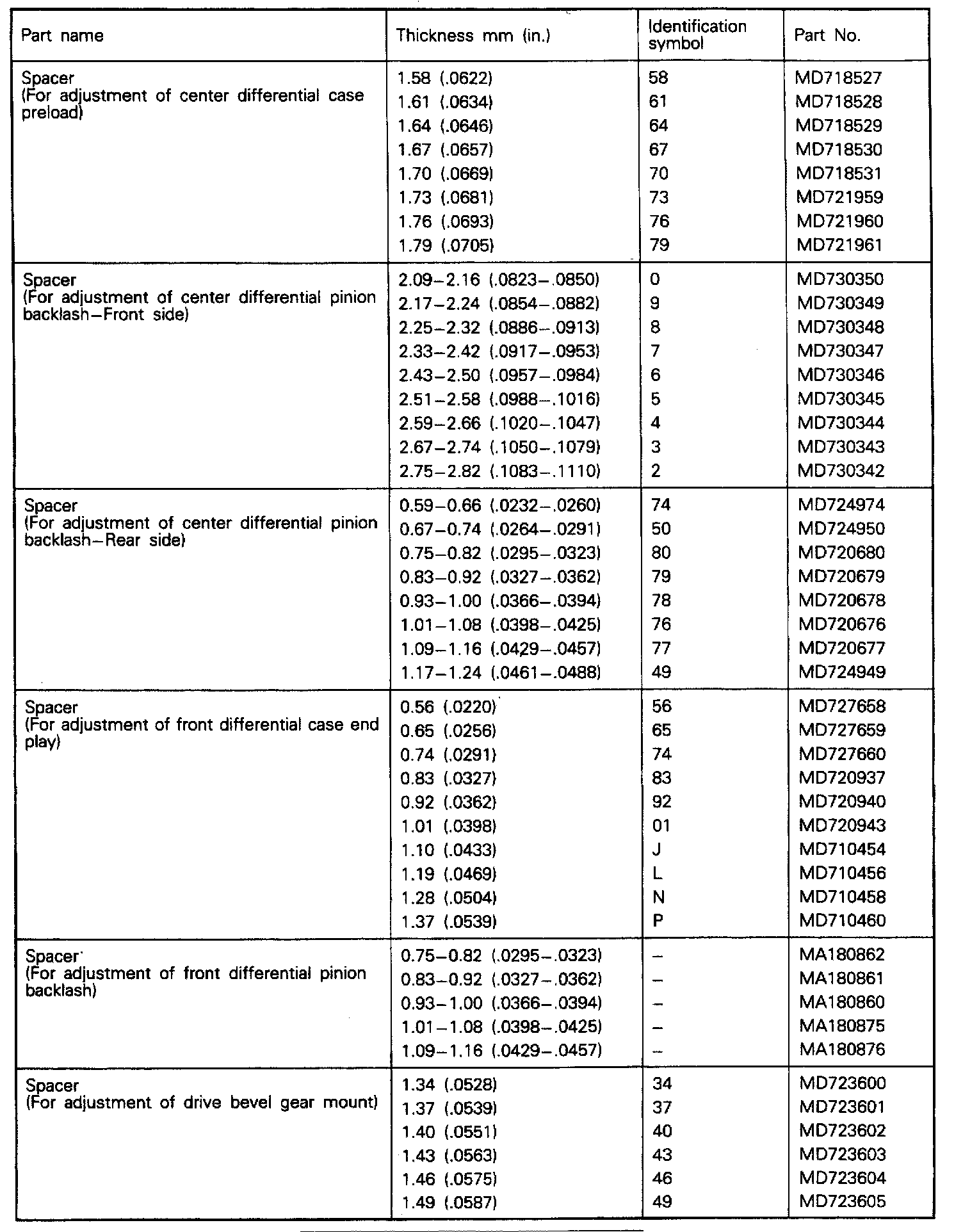

W5M33 5-spd M/T, Differential Case & Pinion , Drive Bevel Gear Mount:

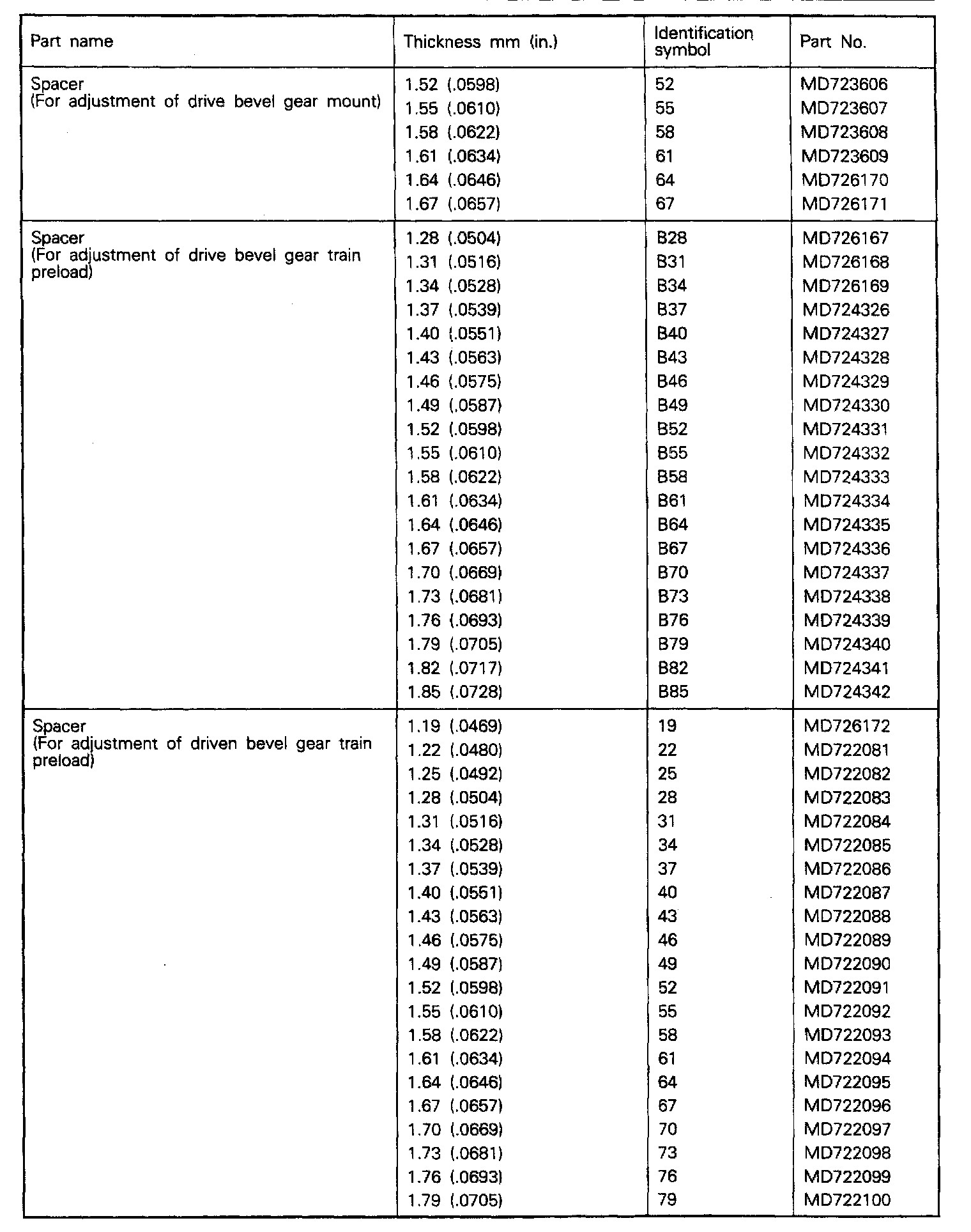

W5M33 5-spd M/T, Drive Bevel Gear Mount / Train Preload:

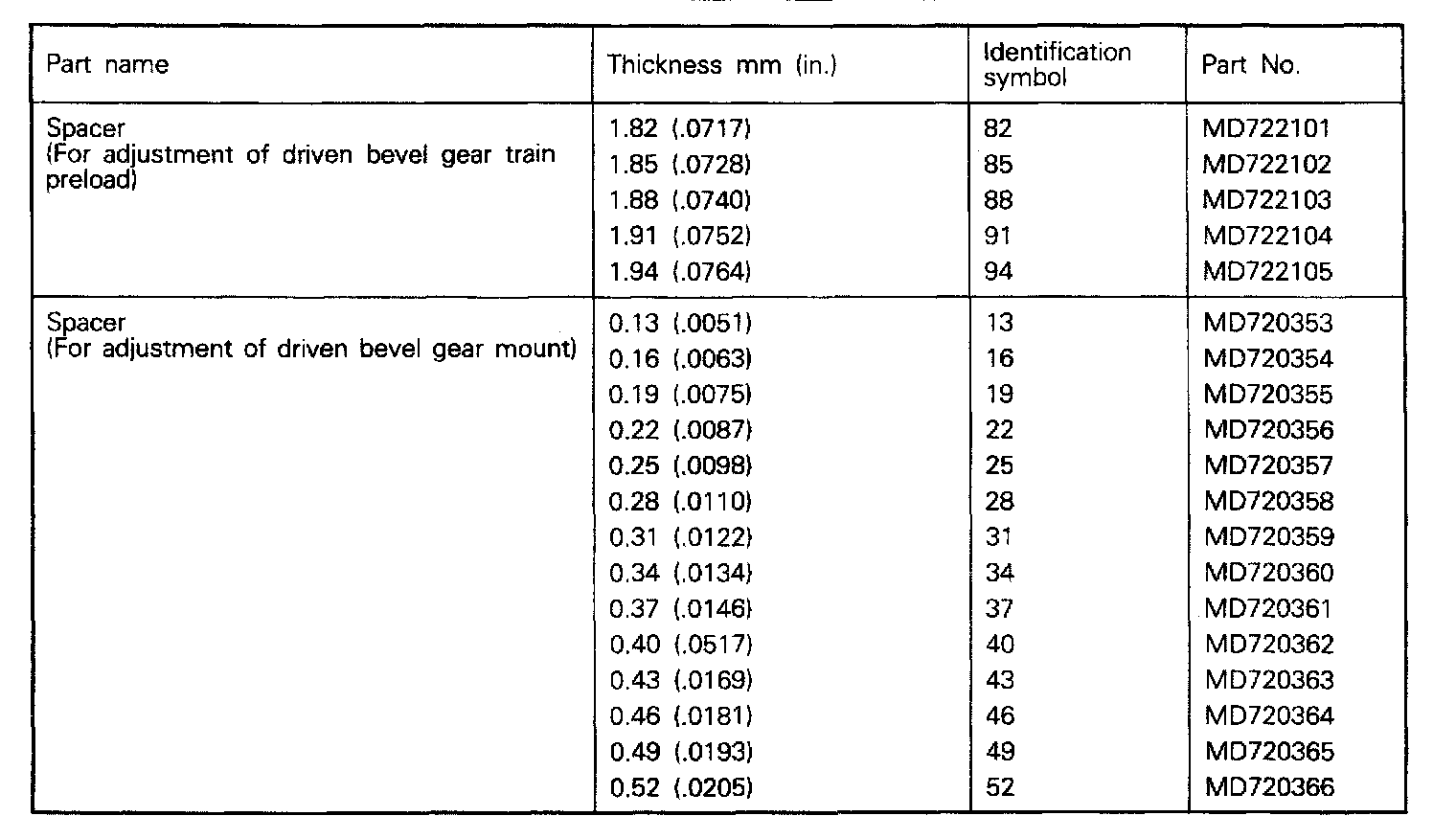

W5M33 5-spd M/T, Driven Bevel Gear Train Preload & Mount:
